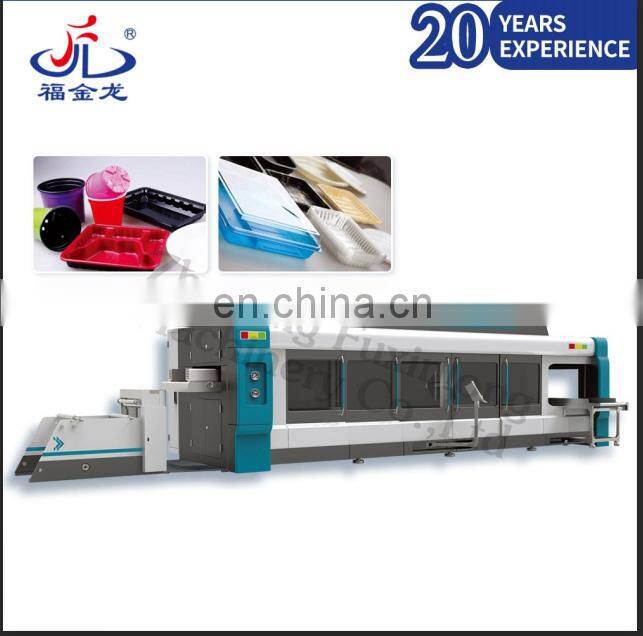

Help CenterPrice Dishes Foam /eps Foam/ ps Foam Food Container Making Machine
Related Products
-
Plastic Box and Plastic Cup and Plastic Cover and Making MachineNegotiableMOQ: 1 -
FSCT-770/570-B- Full Automatic Plastics Vacuum Thermoforming Machine, Vacuum Forming Machine ThermoformingNegotiableMOQ: 1
-
Plastic Vacuum Forming Machine/plastic Making MachineNegotiableMOQ: 1
-
Efficient Disposable Plastic Water Cup Production Line Thermoforming MachineNegotiableMOQ: 1
-
Factory Direct Sale Cheap On-line Automatic Cutting Stacking Machine PriceNegotiableMOQ: 1
I.Main Technical Parameter
Model |
FSCT-680/420-A |
TSCT-680/420-B |
FSCT-770/570-A |
FSCT-770/570-B |
Quantity Of Stations |
3 |
4 |
3 |
4 |
Sheet material |
PP, PS , PVC, PET, HIPS, EPS, OPS, ABS |
|||
Max forming area |
680×420mm |
770×570mm |
||
Max. Pos/Neg Depth |
100/100m |
|||
Max. Plastic Sheet Width |
700mm |
790mm |
||
Max. Plastic Sheet Dia |
1200mm |
|||
Thickness Of Plastic Sheet |
0.1-2mm |
|||
Max. No-Load Speed |
45Cycles/min |
45Cycles/min |
||
Air Consumption |
3m3/min, 0.6-0.8Mpa |
|||
Overall Power |
120KW |
130KW |
180KW |
190KW |
Dimension(LXWXH) |
9500×2300×2500mm |
10500×2300×2500mm |
11500×2400×2400mm |
12600×2400×2400mm |
Weight |
8T |
12T |
15T |
20T |
Power Supply |
380v/50Hz Three Phase Four Wires |
|||
II.Major construction features
he sheet feeding pin chain is controlled by servo motor, The feeding length is more precise and it can be adjusted in parameter setting through touch screen.
The operation is controlled by PLC with touch screen.
Fill oil automatically to lubricate mechanism movement at certain time.
Temperature control modules to control each temperature area.
Machine frame adopts square steel, more stable and serviceable.
Convenient operation, reliable performance, low noise and high quality.
Adopt four pillars to fix the mould
Machine production process started from sheet feeding, heating, stretching, forming and in-mould cutting (and in-mould holing) in one stroke.

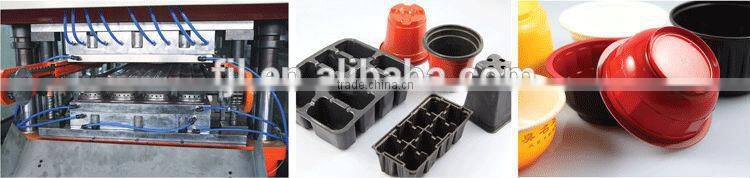

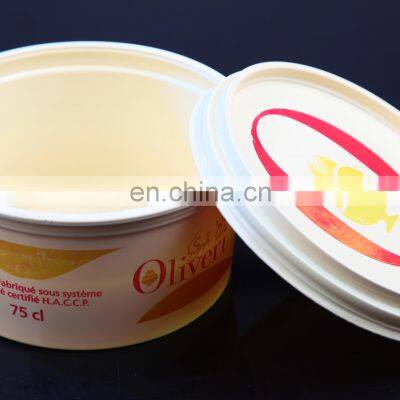

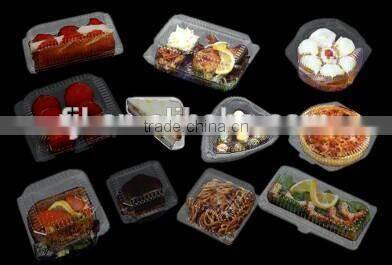

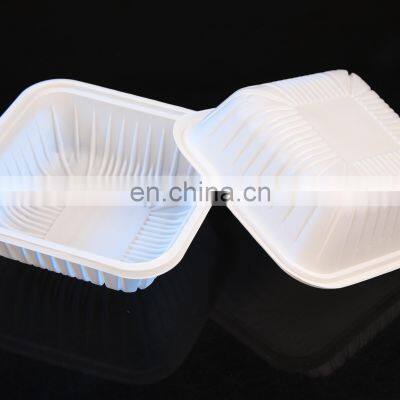

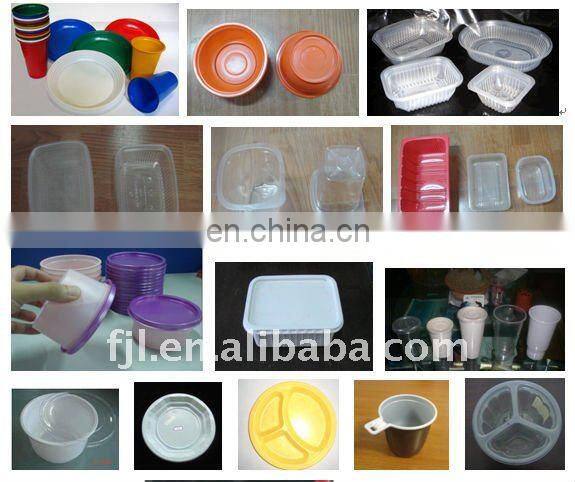

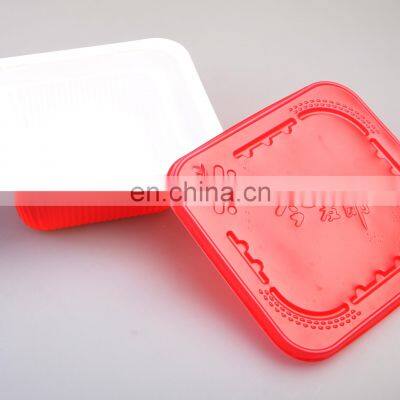

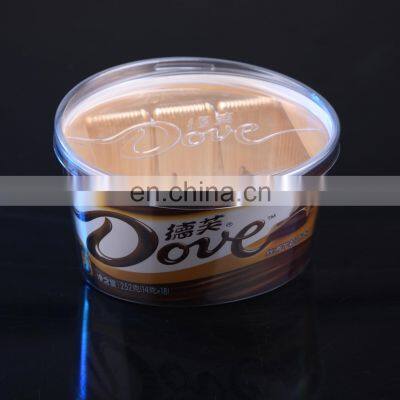

III. Products sample
