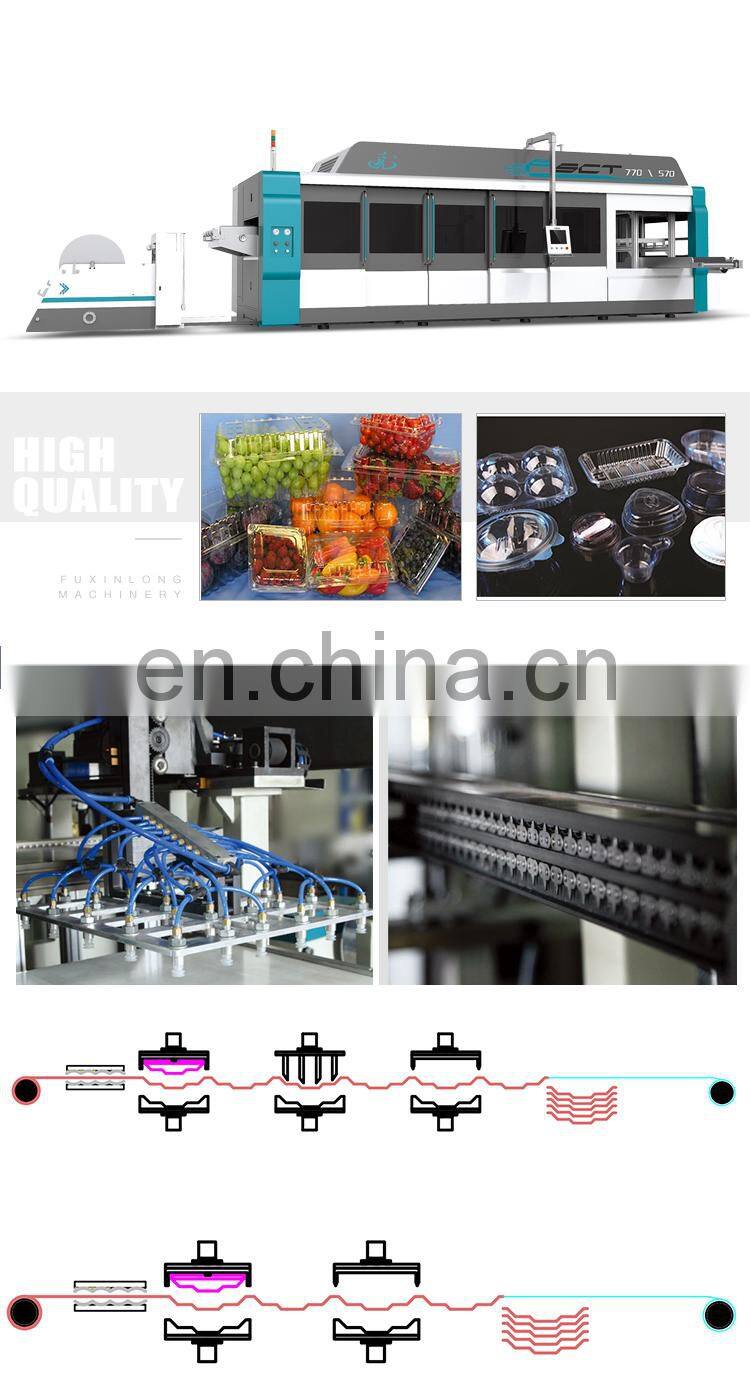

FJL-770/570-B full Automatic plastic thermoforming machine
Usage
FSDT Series combined with the latest innovative technology and sophisticated plastic thermoforming solutions. The excellent stability and efficiency will bring to you a competitive advantage
I.Main Technical Parameter
Model |
FSCT-680/420-A |
TSCT-680/420-B |
FSCT-770/570-A |
FSCT-770/570-B |
Quantity Of Stations |
3 |
4 |
3 |
4 |
Sheet material |
PP, PS , PVC, PET, HIPS, EPS, OPS, ABS |
|||
Max forming area |
680×420mm |
770×570mm |
||
Max. Pos/Neg Depth |
100/100m |
|||
Max. Plastic Sheet Width |
700mm |
790mm |
||
Max. Plastic Sheet Dia |
1200mm |
|||
Thickness Of Plastic Sheet |
0.1-2mm |
|||
Max. No-Load Speed |
45Cycles/min |
45Cycles/min |
||
Air Consumption |
3m3/min, 0.6-0.8Mpa |
|||
Overall Power |
120KW |
130KW |
180KW |
190KW |
Dimension(LXWXH) |
9500×2300×2500mm |
10500×2300×2500mm |
11500×2400×2400mm |
12600×2400×2400mm |
Weight |
8T |
12T |
15T |
20T |
Power Supply |
380v/50Hz Three Phase Four Wires |
|||
II.Major Construction Features
The sheet feeding pin chain is controlled by servo motor, The feeding length is more precise and it can be adjusted in parameter setting through touch screen.
The operation is controlled by PLC with touch screen.
Fill oil automatically to lubricate mechanism movement at certain time.
Temperature control modules to control each temperature area.
Machine frame adopts square steel, more stable and serviceable.
Convenient operation, reliable performance, low noise and high quality.
Adopt four pillars to fix the mould
Machine production process started from sheet feeding, heating, stretching, forming and in-mould cutting (and in-mould holing) in one stroke
III.Machine Parts
