Product Description
Usage
This machine is suitable for producing disposable plastic fast-food containers, bowls, plates, food container , articles of daily use and etc .
I.Main Technical Parameter
Model |
FSDT-660/350-A |
FSDT-660/350-B |
Quantity Of Stations |
3 |
4 |
Sheet material |
PP, PS , PVC, PET, HIPS, EPS, OPS, ABS |
|
Max forming area |
660×350mm |
|
Max. Pos/Neg Depth |
100/30mm |
|
Max. Plastic Sheet Width |
690mm |
|
Max. Plastic Sheet Dia |
800mm 500KG |
|
Thickness Of Plastic Sheet |
0.1-2mm |
|
Max. No-Load Speed |
30Cycles/min |
|
Air Consumption |
1.5-1.8m3/min, 0.5-0.8Mpa |
|
Overall Power |
55KW |
60KW |
Dimension(LXWXH) |
L9000×W2200×H2500mm |
L9800×W2200×H2500mm |
Weight |
7T |
8T |
Power Supply |
380v/50Hz Three Phase Four Wires |
|
II.Major construction features
The operation is controlled by PLC with touch screen.
Fill oil automatically to lubricate mechanism movement at certain time.
Temperature control modules to control each temperature area.
Machine frame adopts square steel, more stable and serviceable.
Convenient operation, reliable performance, low noise and high quality.
Adopt two pillars to fix the mould

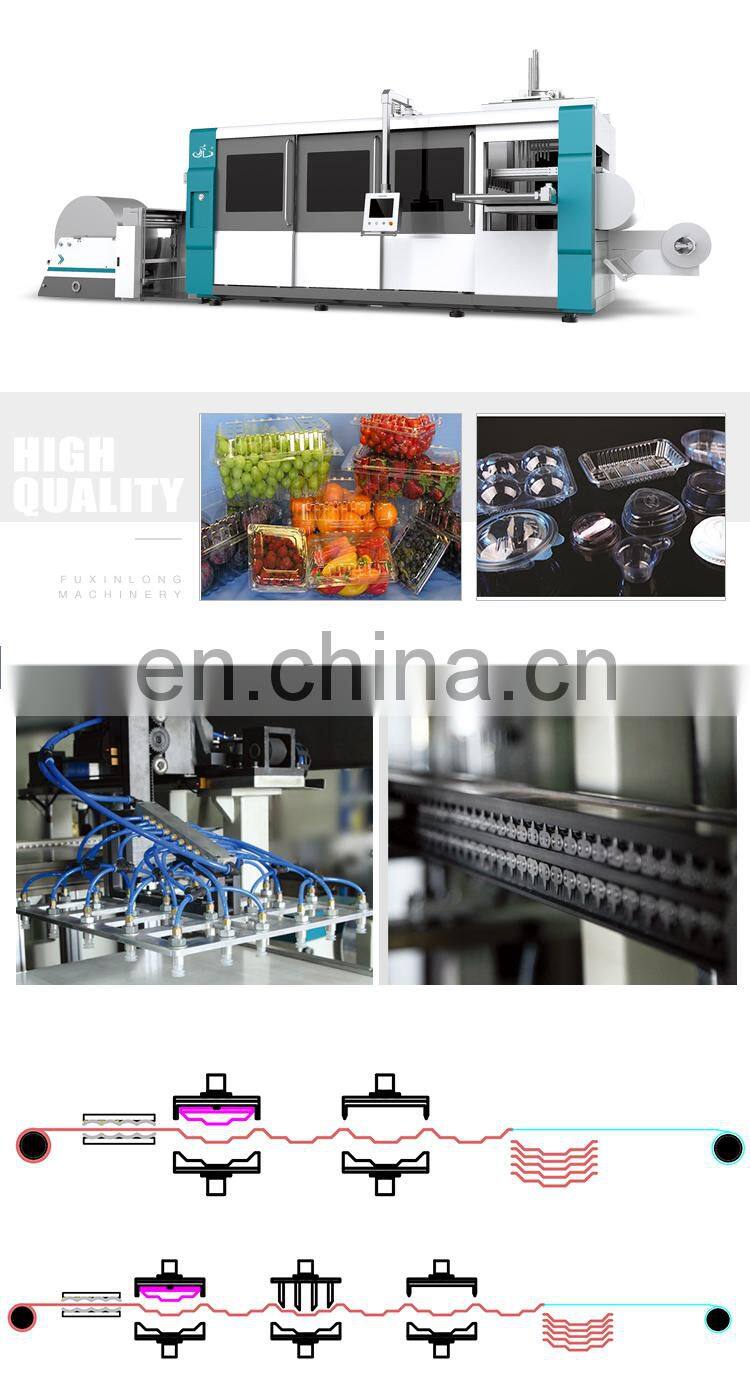

Machine production process started from sheet feeding, heating, stretching, forming and in-mould cutting (and in-mould holing) in one stroke.

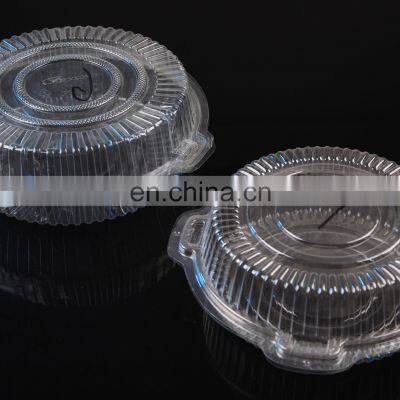

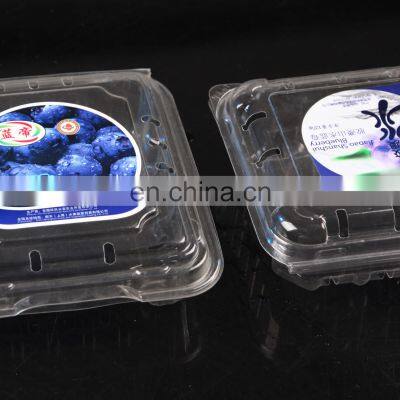

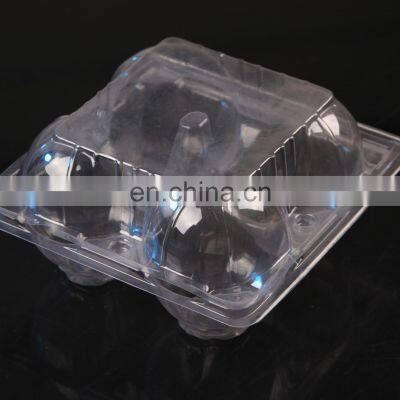

III. Products sample
PACKING
wooden
Warranty and After-sale service
The warranty of all our testing machine is one year
During this Warranty,it is free to replace the spare parts
Out of this warranty, it only charges the cost of the spare parts
All our testing machines enjoy a long after-sales service
After all machines are delivered to customer’s factory; Seller should assist buyer to finish preparation work, such as electricity supply, water supply, labors and etc.
Marketing
During Last ten years ,we participated Chinaplas fair , Canton Fair,K show and other professional plastic machinery exhibition at home and aboard. Our products are sold around the world,for example , Sweden, Romania,Russia,Canada,Peru,Mexico,Mideast,Southeast Asia,Africa and etc.
Certification
Our advantage
Our Company has good after sales service as well as installation and debugging of machine ,technical training, meanwhile we can provide the special equipments according to customer requirement.
Our products are sold in whole China and exported to many countries and regions such as USA, Japan, Canada, Indonesia, Taiwan, Malaysia, Iran, Singapore, Australia, South Africa, Saudi Aribian, Egypt, Turkey, Philipines, etc. Our company slogan is “Credit by Quality, Market by Service”.
We are appreciated with advance equipment, experience and production power. We provide on time after- sales service. We integrate the design, development, production, sales and after-sales services to our clients.
every machine has Configure single and instructions
Thanks for visiting our website , need more details welcome to contact me any time !
