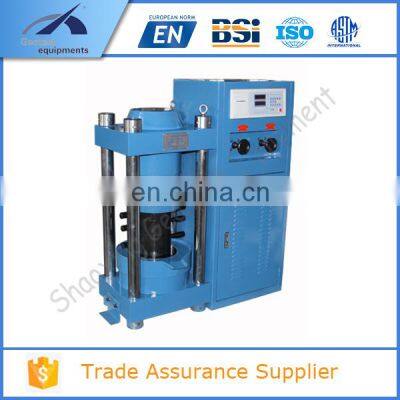

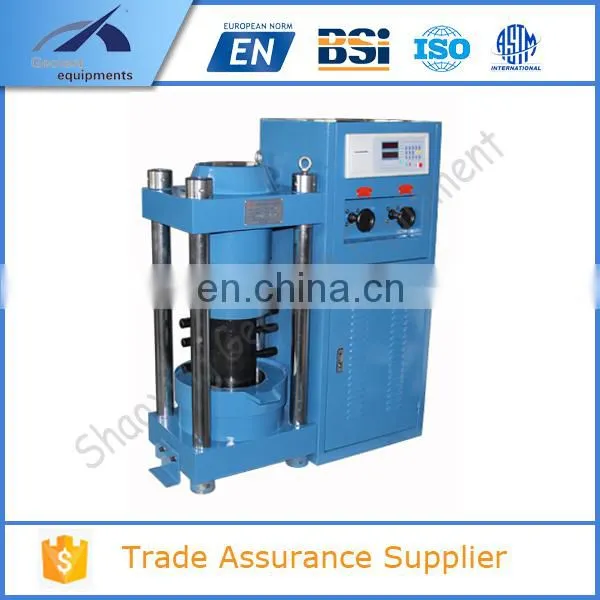

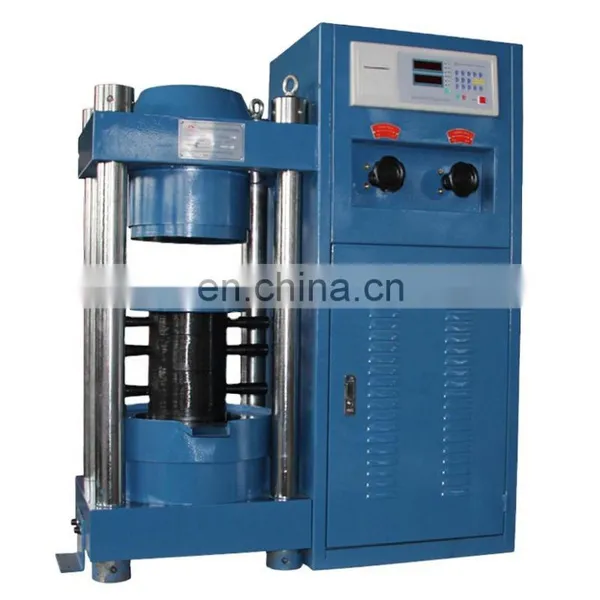

CTM-2000 Digital compression testing machine
1. Charateristic
a. It is suitable for doing compressive strength test of the building materials such as brick, cement, mortar, stone, concrete and so on.
b. It is also suitable for the mechanical properties test for other materials.
c. It has functions such as loading pressure in digital display, Max. loading pressure maintenance, power-off data protection and so on.
d. It can automatically process the test data and automatically print out the test report.
2. Main technical parameter
| Loading capacity | 2000KN |
| Measuring range | 0-2000KN |
| Relative indication error | ±1% |
| Size of bearing platen | Φ260mm |
| Max. distance between upper and lower platen | 340mm |
| Max. ram stroke | 50mm |
| Diameter of ram | Φ270mm |
| Rated pressure of the hydraulic pump | 35Mpa |
| Power | 220V 50HZ |
| Outside size | 960*480*1285mm |
| Net weight | About 700kgs |
Packing Details
1. inner package: dust-proof plastic bag
2. outer package: standard export wooden case with pallet
3. suitable for international transport through shipping by sea, by air or any other delivery method.
(Note: we can provide special packages according to buyer’s requirements.)
4. Packing size: 114×57×138 cm
5. Gross weight: 850 kg
Shipping & Delivery
3 working days
10 working days for shipping by sea
Order Policy
1. MOQ: 1 set
2. 7 days delivery
3. various payment terms
Price Policy
1. Product prices: fixed price in 1 year for agents.
2. Freight charges: according to actual cost payment, refund for any overpayment in next order.
Delivery Policy
1. Try to catch up with contract delivery time.
2. If can’t, try to catch up with the arriving date.
3. Chang shipping by sea to delivery by air flight if necessary.
Before Service
1. Offer actual details for your consideration (such as what we can do and what we can’t do).
2. Quality standard: ASTM, BS, EN, DIN, ISO and others.
After Service
1. Technical education and training (in factory’s house, agent’s house, or through internet).
2. Quality assurance time: 1 year.
Special Service
1. ODM service
2. OEM service
3. Collection service, to collect items from other factories which you buy and delivery in container.
