Load Ring With Dial Gauge
- 1000 per Month
- T/T Credit Card
- 40x40x160mm Cast Iron Three Gang Cement Mortar Prism Mould
- Three Gang Prism Mould For 40x40x160 Cement Mortar
- Concrete Steel 150mm Cube Testing Mold With Clamp Base Plate
- Manufacturer Made Standard Cast Iron Concrete Cylinder Mould
- High Toughness Concrete Plastic Mould 150mm Cube Moulds
- Highly Processed Cast Iron Concrete Cube Test Moulds
Product Description

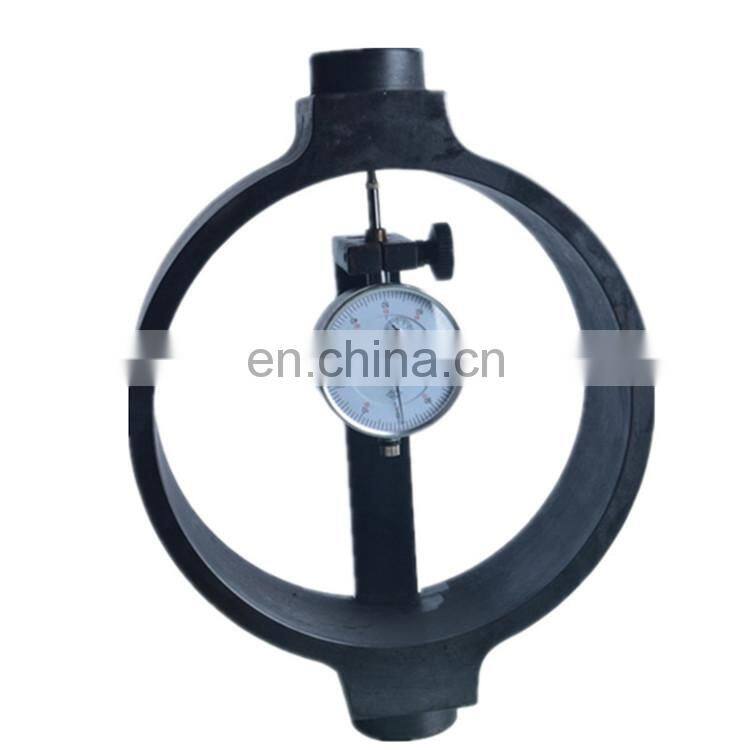

Load Ring with Dial Gauge
Load Ring with Dial Gauge are used for load measurements and are used in outfits of a number of soil / cement & bitumen testing equipments like direct share test apparatus, triaxil share test apparatus, cbr test, unicontained test, marshall test etc.. For more details click on the attached specification.
All load proving ring offer a consistently high order of accuracy and repeatability. Clamped boss proving available in the range 1 kN to 100 kN. These proving are calibrated in accordance BS 1610 and issue with calibration certificate. The repeatability is within ± 0.2% of indicated load. The proving ring can be fitted for marshall, CBR UU and unconfined test. Supplied with in-house calibration certificate & carry case.
1.0KN(100kgf) Proving Ring
2.0KN(200kgf) Proving Ring
3.0KN(300kgf) Proving Ring
5.0KN(500kgf) Proving Ring
10.0KN(1000kgf) Proving Ring
20.0KN(2000kgf) Proving Ring
30.0KN(3000kgf) Proving Ring
50.0KN(5000kgf) Proving Ring
We also produce others type of Compression Testing Machine:
1. Installation and training:
a. If buyers visit our factory and check the machine, we will teach you how to installand use the machine, and also train your workers/technician face to face.
b.Without visiting, we will send you user manual and video to teach you to install and operate.
c.If buyer needs our technician to go to your local factory, please arrange board and lodging and other necessary things.
2. After Service:
a.One year guarantee for whole machine.
b.24 hours technical support by email or calling
c.If there is any problem found of the machine, we will repair it for free in one year.
Frequently Asked Question:
1.Are you trade company or factory?
We are trade company but we also have own factories. Building trade company is just for exporting various types of concrete mould and others products.
2. Why your price is higher than others?
As we persist on that each factory should put quality at the first place. We spend time and money on developing how to make machines much more automatic, accurate and high quality. We can make sure that our machine could use more than ten years without any problem. We can provide one years free quality assurance.
3. How to visit your company?
A) Fly to Beijing airport: By high speed train From Beijing Nan to Cangzhou Xi (1 hour),then we can pick up you.
B) Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 hours), then we can pick you up.
Oubeiruike supply verious type of products,Test Molds, Concrete Mixer,Asphalt Tester,and Soil Road Lab Tester .... We assure high quality to you.
We can deliver by sea at any port in china, and Also can ship by air via express company (door to door),it is quick and safe.
We be 24 hours online,if you have any questions,kindly contact us freely.
