Product Description

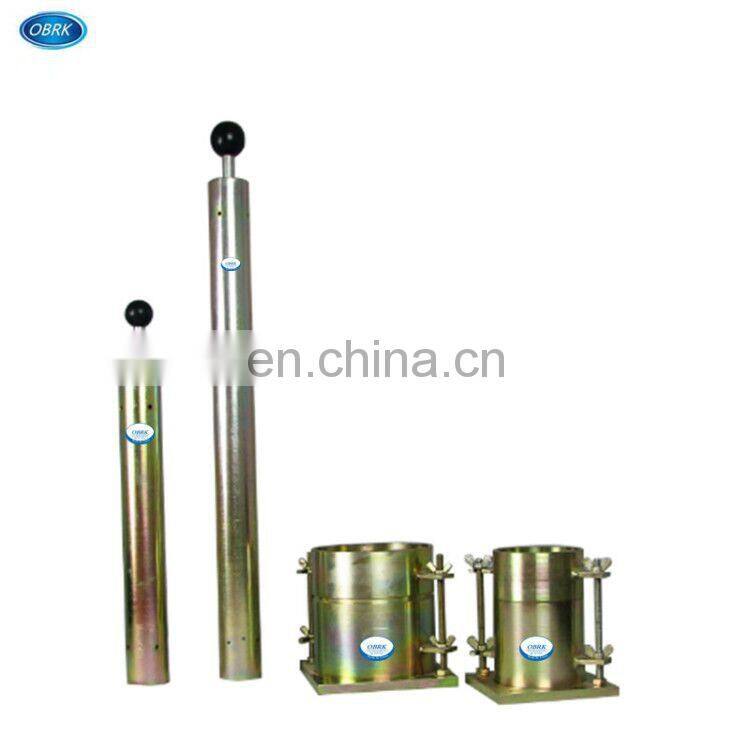

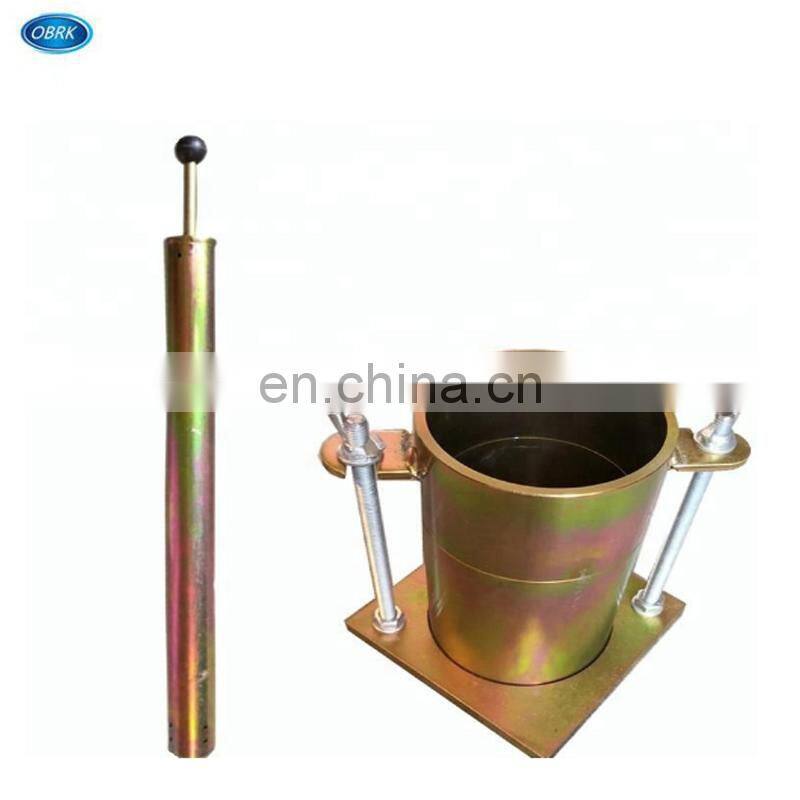

Proctor Compaction Test Apparatus(proctor mould and proctor hammers) for Soil Specimens

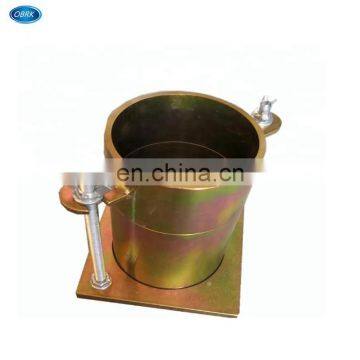

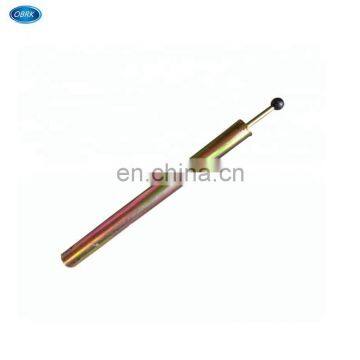

Moulds and rammers are used for determining the relationship between the moisture content and density of compacted soil. Made of plated steel, includes collar, mould body and base plate. Rammers are used to compact the soil sample in the Proctor Moulds and made of plated steel. Different models are available conforming to the relevant standards.
Light-duty Compactor(Standard) | |
Weight of the hammer(rammer weight | 2.5Kg |
Diameter of the hammer | 50mm |
Drop | 300mm |
Dimension of the compaction mould | Φ100×127mm |
Finish | corrowion resistant |
Heavy-duty Compactor(Modified) | |
Weight of the hammer(rammer weight) | 4.5Kg |
Diameter of the hammer | 50mm |
Drop | 450mm |
Dimension of the compaction mould | Φ152×170mm |
Finish | corrowion resistant |
P
- Packaging Details Deval Abrasion Testing Machine is standard export wooden case.
- Port any port in china/Deval Abrasion Testing Machine
ackaging And Shipping
- We can deliver by sea at any port in china, and Also can ship by air via express company (door to door),it is quick and safe.
- We can ship By EMS,TNT,DHL and others ( door to door)
1. Installation and training:
(1). If buyers visit our factory and check the machine, we will teach you how to installand use the machine, and also train your workers/technician face to face.
(2). Without visiting, we will send you user manual and video to teach you to install and operate.
(3). If buyer needs our technician to go to your local factory, please arrange board and lodging and other necessary things.
2. After Service:
(1).One year guarantee for whole machine.
(2).24 hours technical support by email or calling
(3).If there is any problem found of the machine, we will repair it for free in one year.
Cangzhou Oubeiruike Instrument And Equipment Co., Ltd.
The company was founded in 2013, it is located in the hometown of Chinese Kung Fu Cangzhou. Here adjacent to the Beijing airport, Tianjin port. Huanghua port is a local port with convenient transportation. Oubeiruike is mainly engaged in the foreign trade of various instruments and equipments.
The Main products: concrete test mode, cement test mode, constant stress test machine, universal testing machine, test box, concrete and cement products performance test instruments and so on.
- Oubeiruike supply verious type of products,Test Molds, Concrete Mixer,Asphalt Tester,and Soil Road Lab Tester ....
- We assure high quality to you.
