Pendulum Skid Resistance and friction Tester
Item name |
Pendulum Skid Resistance and friction Tester |
Standard |
BS 812:114, EN 1097-8 |
Model |
BM-V |
Put the weight |
1500g |
Place the center of gravity |
410mm |
Rubber piece of pavement is static pressure |
22.2N |
The end from the place of the rubber feet |
508mm |
On the road surface sliding length |
126mm |
TRL(55) Mounted Rubber Slider Size |
31.75mm×25.4mm×6.35mm |
TRL(55) Mounted Rubber Slider Size |
76mm×25.4mm×6.35mm |
Weight |
47Kg |
Packing size |
90x45x84CM |
- It suitable per both lab and site application as well for Polish Stone Value Apparatus by using curved specimen for Accelerated Polishing Apparatus.

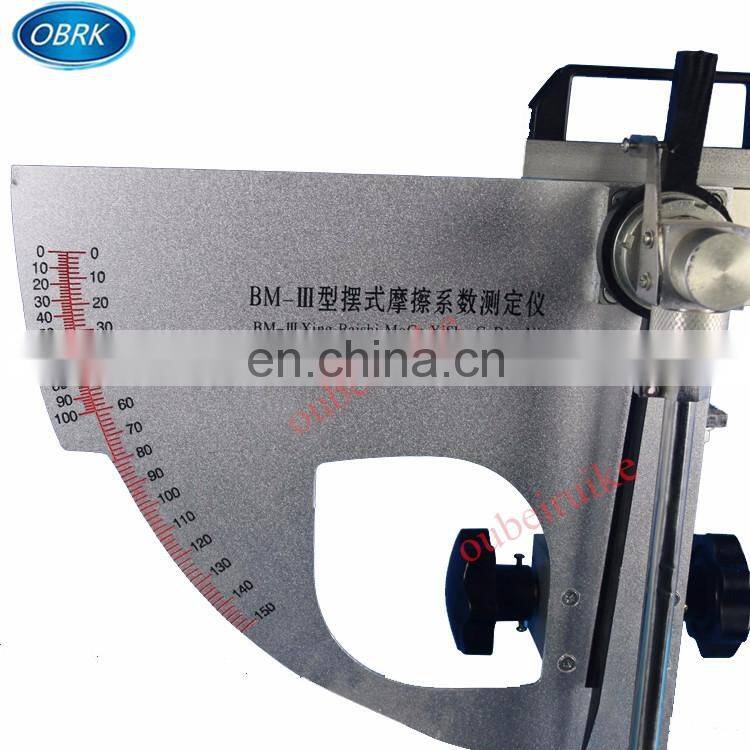

- The apparatus used for measuring road surface frictional properties. This apparatus come with an adjustable pendulum arm and a spring loaded rubber slider mounted on the end of the arm.
- The pendulum is raised and allowed to swing freely during operation, allowing the edge of the rubber slider to skid across the surface of specimen. Supplied complete with 6 rubber sliders for lab & site use.
- The pendulum is released from a horizontal position so that it strikes the sample surface with a constant velocity. The distance travelled by the head after striking the sample is determined by the friction of the sample surface.A reading of Skid Resistance is obtained.
-
Application of Skid Resistance Tester
• Road surface testing
• Testing of new road surface materials under development
• Testing of aggregates in the PSV (polished stone value) test
• Testing of floors and pedestrian walkways
• Flooring materials product development
•Accident investigations, both traffic and pedestrian

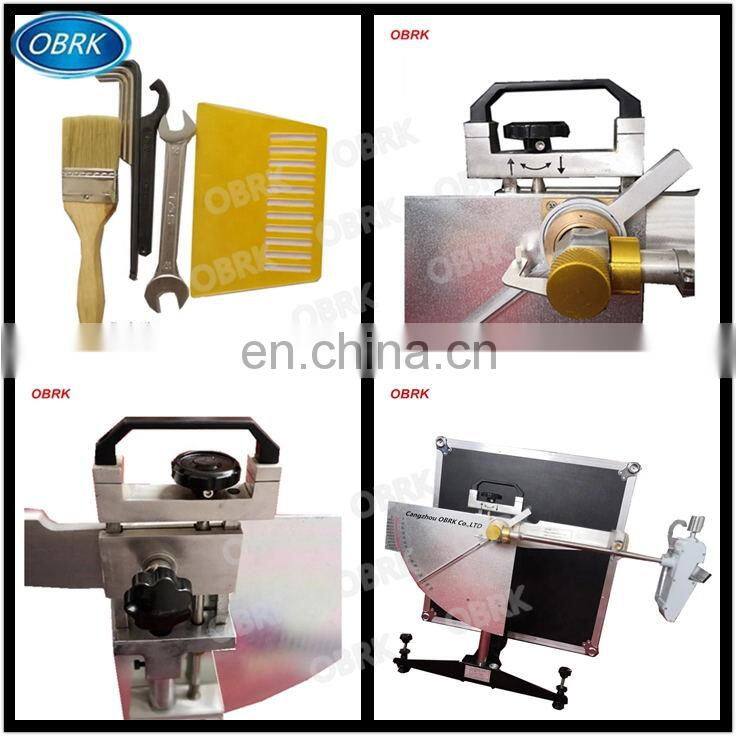

• Litigation investigationsHardness:55±5 IRHD,rubber slider
3PCS
31.75mm×25.4mm×6.35mm
Hardness:55±5 IRHD ,rubber slider
3PCS
76mm×25.4mm×6.35mm
Measuring Ruler
1PC
Spray Bottle
1PCS
Brush
1PC
Tools Kits
1set
Carrying Case
1PC
- Packaging Details Deval Abrasion Testing Machine is standard export wooden case.
- Port any port in china/Deval Abrasion Testing Machine
- We can deliver by sea at any port in china, and Also can ship by air via express company (door to door),it is quick and safe.
- We can ship By EMS,TNT,DHL and others ( door to door)
1. Installation and training:
(1). If buyers visit our factory and check the machine, we will teach you how to installand use the machine, and also train your workers/technician face to face.
(2). Without visiting, we will send you user manual and video to teach you to install and operate.
(3). If buyer needs our technician to go to your local factory, please arrange board and lodging and other necessary things.
2. After Service:
(1).One year guarantee for whole machine.
(2).24 hours technical support by email or calling
(3).If there is any problem found of the machine, we will repair it for free in one year.
