Home > Products > Lab Test Apparatus > Digital Pocket Ultrasonic Thickness Gauge For Measuring Metal Aluminum Thickness

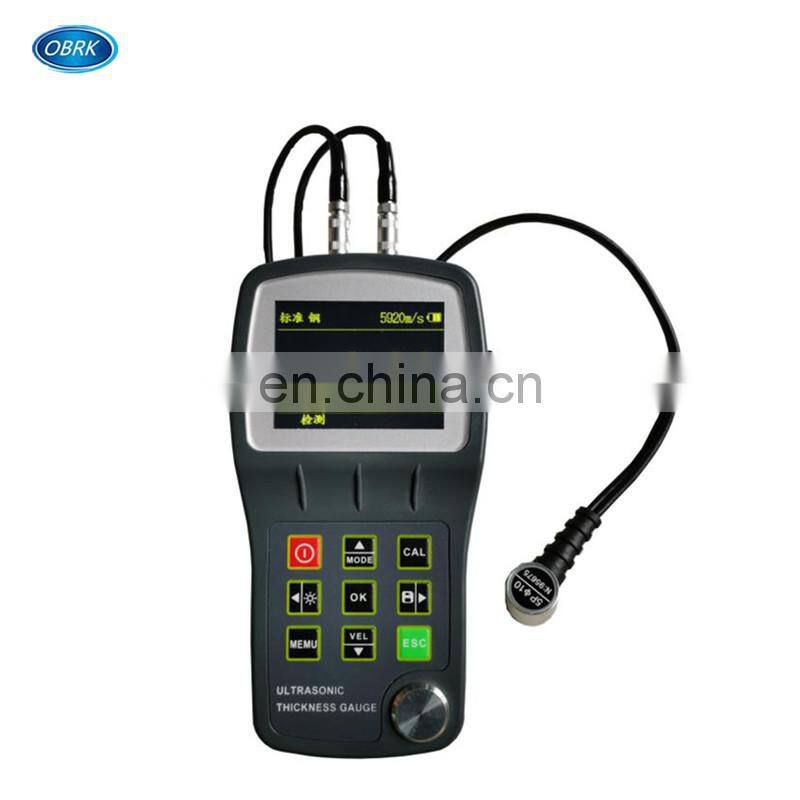

Digital Pocket Ultrasonic Thickness Gauge For Measuring Metal Aluminum Thickness
- 1000 per Month
- T/T Credit Card
- Aggregate flakiness and elonation index testing Machine, Flakiness/thickness Gauge
- Stainless Steel Adjustable Bench Sieve Rack / Wall-Mount Sieve Rack For Test Sieves
- Layers Food powder laboratory testing sieve screen shaker / Soil sieve sifter machine
- Standard Fine Aggregate Preparation Sample Splitter/Soil Riffle Box/Rifflebox
- Ultrasonic Metal Steel Aluminum Thickness Meter Tester Gauge
- Portable Handheld Ultrasonic Thickness Tester
Product Description
Digital Pocket Ultrasonic Thickness Gauge For Measuring The Thickness Of Metal Aluminum
Product Specification
Ultrasonic Thickness Gauge
Product specification | GTJ-U100 |
Working principle | Ultrasonic wave (pulse-echo) |
Detection range | 0.75-300mm |
Resolution | 0.1mm(>100mm)/0.01mm(<100mm) |
Indication accuracy | ±(0.5%H+0.01)mm |
Unit | mm/inch |
Language | Chinese-English |
Scan mode | 25 times/second |
Frenquency bandwidth | 0.5-15MHz |
Speed of sound | 1000~9999m/s |
Optional probe | High tempetrature/thin wall coarse grain/ small diameter |
2.4 inch HD color screen | High contrast 320x240 true color LCD screen |
Sound path correction | Automatic |
Probe connection status indication | Have |
Storage | TF card machine storge, can be exported to save |
Communication | USB interface communicates with host computer |
Dimensions | 145x75x27mm |
The standard configuration | 1 host/1 probe/2 batteries/1 coupling agent/1 set of document/1 box |
- Thickness gauge is suitable for measuring the thickness of metals (such as steel, cast iron, aluminum, copper, etc.), plastics, ceramics, glass, fiberglass and any other good conductors of ultrasonic wave.
- It can be widely used in petroleum, chemical industry, metallurgy, shipbuilding, aviation, aerospace and other fields.

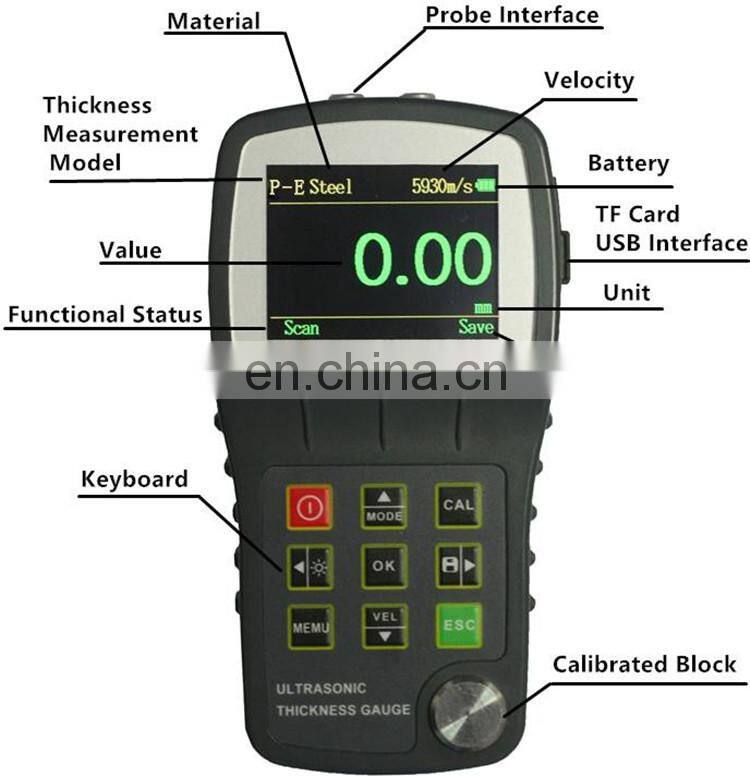

Detailed Features And Design
- Digital Ultrasonic Thickness Gauge
Our advantage (Digital Ultrasonic Thickness Gauge)
-
High-precision thickness measurement: it has the functions of zero-point calibration and two-point calibration of probe, which can automatically correct the system error;According to the known thickness, the sound velocity can be measured back to improve the measurement accuracy
-
Scanning mode: display the maximum and minimum values of measured materials in real time
Description |
Quantity |
Body |
1PC |
Probe |
1PC |
battery |
2PCS |
coupling agent |
1 bottle |
Plastic case |
1PC |
Our Service
- Installation and training
- If buyers visit our factory and check the machine, we will teach you how to installand use the machine, and also train your workers/technician face to face.
- Without visiting, we will send you user manual and video to teach you to install and operate.
- If buyer needs our technician to go to your local factory, please arrange board and lodging and other necessary things.
- After Service
- One year guarantee for whole machine.
- 24 hours technical support by email or calling
- If there is any problem found of the machine, we will repair it for free in one year.
Any questions, please contact me without hestitation, welcome your inquiry!Price can be negotiated
We can provide high quality products. OEM or OEM orders are also welcome.
Why Choose OBRK?
- Oubeiruike supply verious type of products,Test Molds, Concrete Mixer,Asphalt Tester,and Soil Road Lab Tester .... We assure high quality to you.
- All our products are made in China and with competitive price.Excellent quality with competitive price.We can offer OEM & ODM service.
Certificate
Packaging And Shipping
- Packaging Details Deval Abrasion Testing Machine is standard export wooden case.
- Port any port in china/Deval Abrasion Testing Machine
- We can deliver by sea at any port in china, and Also can ship by air via express company (door to door),it is quick and safe.
- We can ship By EMS,TNT,DHL and others ( door to door)
FAQ
Q:Are you trade company or factory?
A:We are trade company but we also have own factories. Building trade company is just for exporting various types of concrete mould and others products.
Q:Why your price is higher than others?
A:As we persist on that each factory should put quality at the first place. We spend time and money on developing how to make machines much more automatic, accurate and high quality. We can make sure that our machine could use more than ten years without any problem. We can provide one years free quality assurance.
Q:How to visit your company?
A:1. Fly to Beijing airport: By high speed train From Beijing Nan to Cangzhou Xi (1 hour),then we can pick up you.
2.Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 hours), then we can pick you up.
Q:How to choose the Transportation Term?
A:Usually,we may according to your needs,we may choose the most rasonable freight,then to select for you.
All our products will be inspected thoroughly before shipping.Hope you will enjoy this shopping journey and we hope to have a long-time relationship with you. Welcome to visit our factory! Any questions please contact us, we will be of your service
Digital Pocket Ultrasonic Thickness Gauge For Measuring The Thickness Of Metal Aluminum
