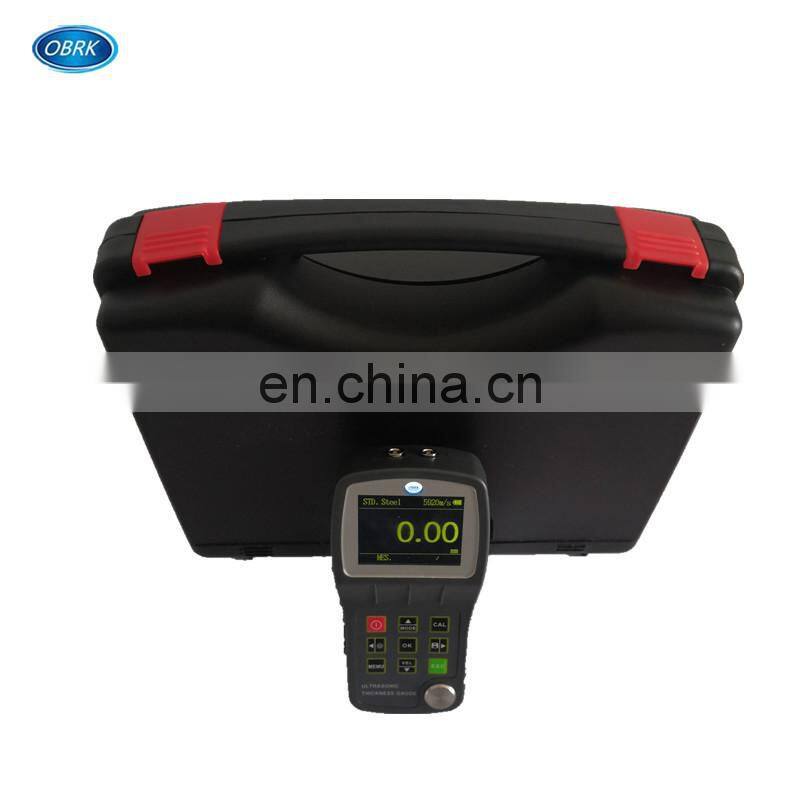

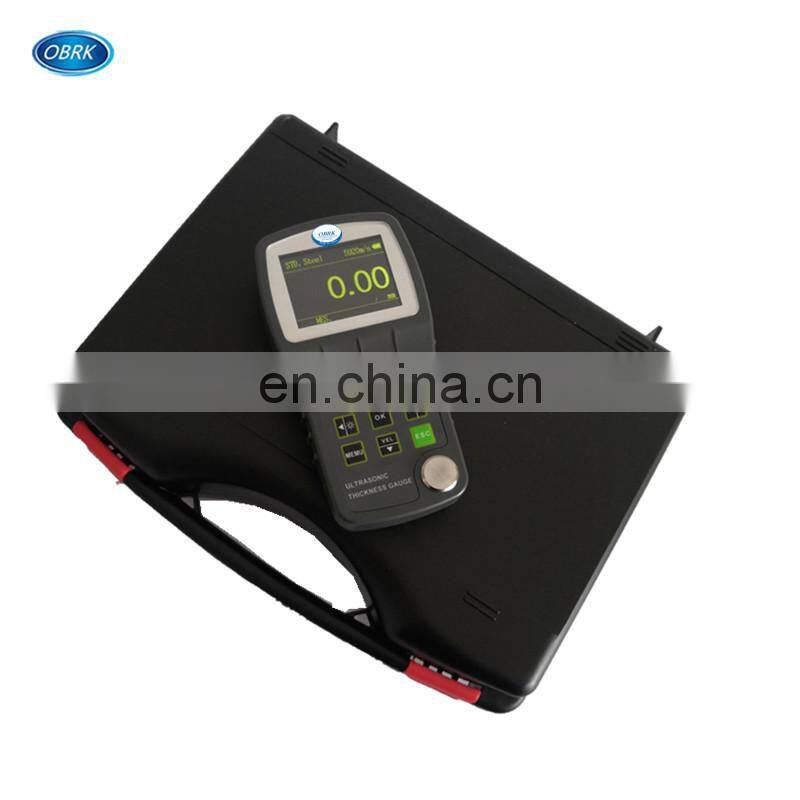

Digital Pocket Ultrasonic Thickness Gauge For Measuring The Thickness Of Metal
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
Flexible Wax Spatulas Dental Instruments / Laboratory Spatulas
-
ASTM Standard Dumbbell Rubber Tensile Sample Die Cutter
-
Specimen Strip Making Testing Machine/ Plastic And Rubber Dumbbell Die Cutter
-
Manual Rubber Dumb Bell Die Making Machine
-
Dumbbell Die Specimen Cutter Punch
-
ASTM Standard HS Dumbbell Die Specimen Cutter Die Rubber Dumbbell Die Specimen Cutter Price
Product Description
Digital Pocket Ultrasonic Thickness Gauge For Measuring The Thickness Of Metal
Product Description
Digital Pocket Ultrasonic Thickness Gauge For Measuring The Thickness Of Metal
* Thickness gauge is suitable for measuring the thickness of metals (such as steel, cast iron, aluminum, copper, etc.), plastics, ceramics, glass, fiberglass and any other good conductors of ultrasonic wave.
* It can be widely used in petroleum, chemical industry, metallurgy, shipbuilding, aviation, aerospace and other fields.
* It can be widely used in petroleum, chemical industry, metallurgy, shipbuilding, aviation, aerospace and other fields.
* High-precision thickness measurement: it has the functions of zero-point calibration and two-point calibration of probe, which can automatically correct the system error;According to the known thickness, the sound velocity can be measured back to improve the measurement accuracy
* Scanning mode: display the maximum and minimum values of measured materials in real time
* Scanning mode: display the maximum and minimum values of measured materials in real time
Specification
Product specification | GTJ-U100 |
Working principle | Ultrasonic wave (pulse-echo) |
Detection range | 0.75-300mm |
Resolution | 0.1mm(>100mm)/0.01mm(<100mm) |
Indication accuracy | ±(0.5%H+0.01)mm |
Unit | mm/inch |
Language | Chinese-English |
Scan mode | 25 times/second |
Frenquency bandwidth | 0.5-15MHz |
Speed of sound | 1000~9999m/s |
Optional probe | High tempetrature/thin wall coarse grain/ small diameter |
2.4 inch HD color screen | High contrast 320x240 true color LCD screen |
Sound path correction | Automatic |
Probe connection status indication | Have |
Storage | TF card machine storge, can be exported to save |
Communication | USB interface communicates with host computer |
Dimensions | 145x75x27mm |

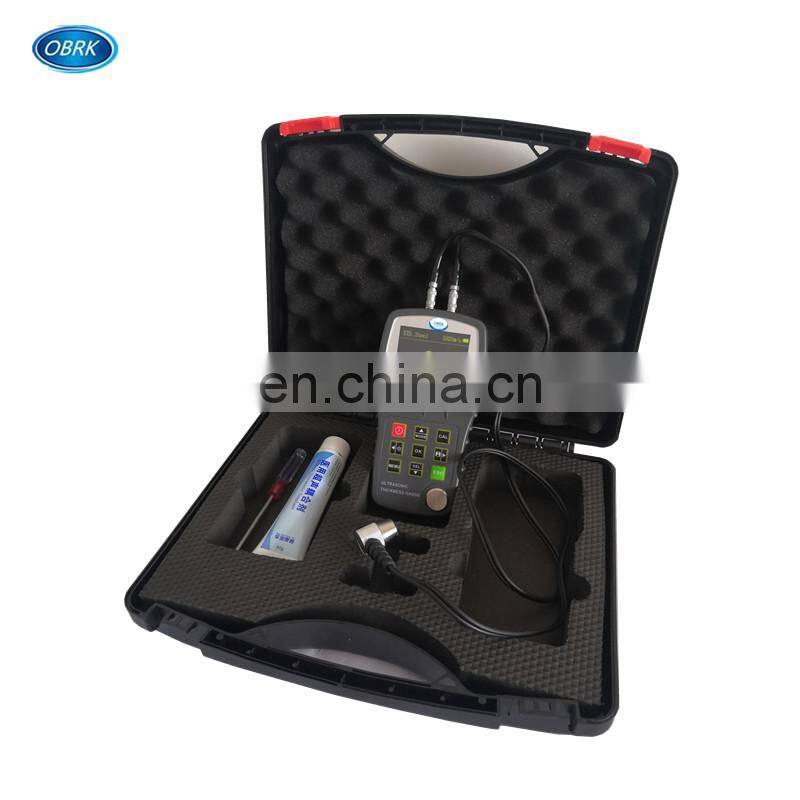

The standard configuration | 1 host/1 probe/2 batteries/1 coupling agent/1 set of document/1 box |
