Home > Products > Lab Test Apparatus > Digital Display Los Angeles Abrasion Testing Machine/ Abrasion Resistance Tester
Digital Display Los Angeles Abrasion Testing Machine/ Abrasion Resistance Tester
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
Standard Funnel / Sand / Aggregate Funnel Bulk Density Meter
-
Void Content Apparatus ( Coarse Aggregate ) For Sale
-
OBRK Aggregate Crushing Value Test Apparatus for Resistance
-
Aggregate AIV Impact Value Test Apparatus Aggregate Moisture Condition Value
-
Lab Rock Point Load Apparatus/ Rock Strength Test Machine/ Digital Point Load Tester
-
Stainless Steel Sand Absorption Cone and Tamper Apparatus
Product Description

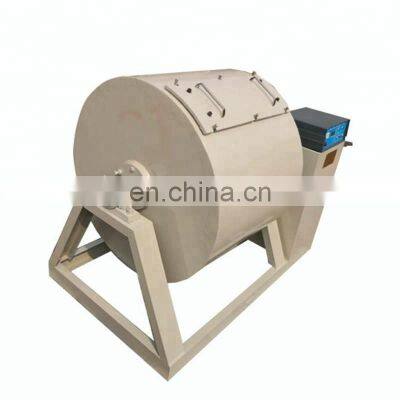

Digital Display Los Angeles Abrasion Testing Machine/ Abrasion Resistance Tester
Product Description
Digital Display Los Angeles Abrasion Testing Machine/ Abrasion Resistance Tester
* It is designed and manufactured according to the ASTM ad EN standards, it features less noise than normal product.
* It consists of a rolled steel drum having an inside diameter of 710 mm and internal length 510 mm.
* The drum is rotated by a speed reducer driven by an electric motor at a speed of between 30 and 33 r. P. M.
* The machine is equipped with an automatic counter, which can be preset to the required number of revolutions of the drum.
* The drum is rotated by a speed reducer driven by an electric motor at a speed of between 30 and 33 r. P. M.
* The machine is equipped with an automatic counter, which can be preset to the required number of revolutions of the drum.
Digital Display Los Angeles Abrasion Testing Machine/ Abrasion Resistance Tester
The unit is supplied without the abrasive charge, which has to be ordered separately depending on the standard in use. This Los Angeles Abrasion testing Machine is used as a quality control equipment for aggregates, including crushed rock, gravel and slag.
Technical parameters:
1.Diameter of steel ball:46.8mmX12Pcs
2.Total mass of steel ball:5000g±25g
3.Internal diameter of roller:710mmX510mm
4.Mains voltage:380V-2200W
5.Automatic digital display for present
1.Diameter of steel ball:46.8mmX12Pcs
2.Total mass of steel ball:5000g±25g
3.Internal diameter of roller:710mmX510mm
4.Mains voltage:380V-2200W
5.Automatic digital display for present
Specification
Brand | OBRK |
Origin | Hebei CangZhou |
Product name | Los Angeles Abrasion Machine |
The inner tube inner diameter × length | 710 ± 5mm × 510 ± 5mm |
Speed | 30-33r / min |
Counter | 5 (automatic digital display, can be preset) |
Dimensions | 1320 × 980 × 1050mm |
Ball | Φ48mm |
Power | Working voltage 380V ± 10% three-phase (star), current less than 20A |
Weight | 220Kg |
Dimensions | 1220x840x1030mm |
Power | 6KW |
Ambient temperature | ≤35 ℃ |
Relative humidity | ≤85% |
Our Service
Installation and training
1.If buyers visit our factory and check the machine, we will teach you how to install and use the machine, and also train your workers/technician face to face.
2.Without visiting, we will send you user manual and video to teach you to install and operate.
3.If buyer needs our technician to go to your local factory, please arrange board and lodging and other necessary things.
After Sale Service
1.One year guarantee for whole machine.
2.24 hours technical support by email or calling
3.If there is any problem found of the machine, we will repair it for free in one year.
1.If buyers visit our factory and check the machine, we will teach you how to install and use the machine, and also train your workers/technician face to face.
2.Without visiting, we will send you user manual and video to teach you to install and operate.
3.If buyer needs our technician to go to your local factory, please arrange board and lodging and other necessary things.
After Sale Service
1.One year guarantee for whole machine.
2.24 hours technical support by email or calling
3.If there is any problem found of the machine, we will repair it for free in one year.
Packing & Delivery
We can delivery by sea at any port in China.
We can ship By EMS,TNT, DHL and others (door to door).
We also can ship by air via express company (door to door), it is quick and safe.
