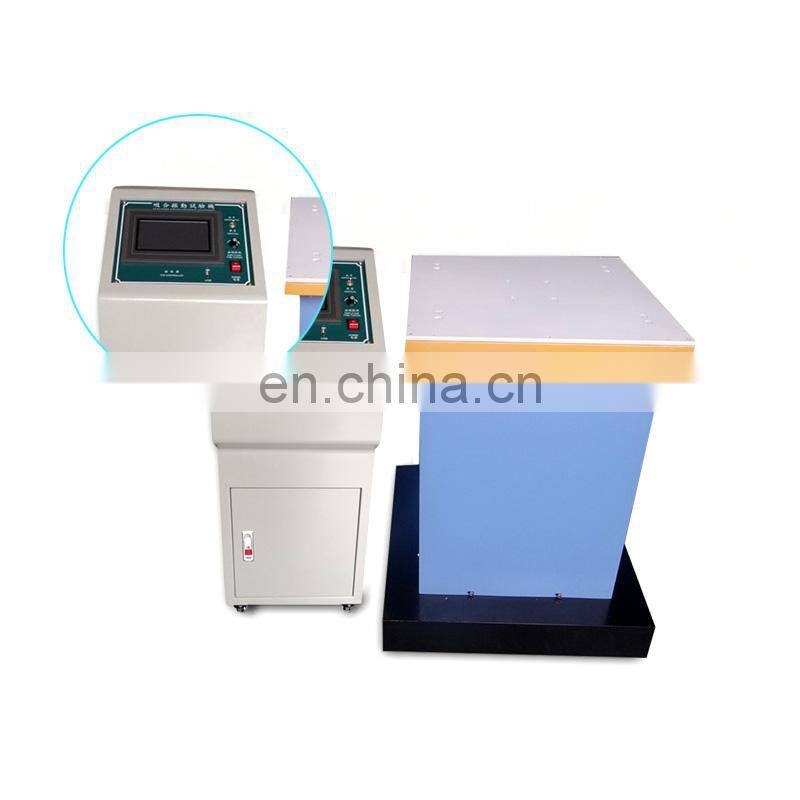

Help CenterVertical Horizontal Three Direction Electromagnetic Shaking Table Testing Machine Circuit Board Vibration Tester
Related Products
-
High Quality Lab Transport Simulation Vibration Testing Chamber FactoryNegotiableMOQ: 1 -
Vibrator Mechanical Sieve Shaker Transport Simulation Vibration Testing Chamber Iso 2017 Factory DongguanNegotiableMOQ: 1
-
Mechanical Vibration Shaker Table Transport Simulation Vibration Testing ChamberNegotiableMOQ: 1
-
Universal Transport Simulation Vibration Test Machine Mechanical Vibration Test MachineNegotiableMOQ: 1
-
Custom Industrial Transport Simulation Vibration TesterNegotiableMOQ: 1
Products title
Uses:
Vertical + horizontal electromagnetic horizontal vibrating test table
Design Standard:
GB/T2423/5170/10586, JIS C60068, ASTM D4714, CNS3625/12565/12566
Product description
Electromagnetic vibrating table is widely used in national defense, aviation, communications, electronics, automotive, home appliances, and other industries. This type of equipment is used to find early faults, simulate actual working conditions and structural strength test. The product has a wide application range, wide application area, remarkable test effect and reliability. Sine wave, frequency modulation, sweep, programmable, frequency doubling, logarithm, time control.
Technical specification
|
Maximum test load: |
60kg |
|
Direction of vibration: |
Vertical + Horizontal
|
|
Test table size: |
500×500×280mm |
|
Amplitude: |
0~5mm(Random, varying with frequency) |
|
Frequency: |
5~400 Hz(True standard back and forth sweep frequency) |
|
Frequency accuracy: |
Frequency display up to 0.01Hz, precision 0.1Hz |
|
Test function: |
Frequency modulation, fixed frequency, programmable, time control (all computer software control) |
|
Maximum acceleration: |
5G |
|
Vibration waveform: |
Sine wave (half wave/full wave) |
|
Frequency doubling function (0.01Hz: |
Low frequency -- high frequency / high frequency -- low frequency / low frequency -- high frequency -- low frequency (recyclable) |
|
Logarithmic function (0.01Hz): |
Lower frequency - upper frequency / upper frequency - lower frequency / lower frequency - upper frequency - lower frequency (can be recycled) |
|
Time control: |
Any time can be set (in seconds) |
|
Full computer control: |
Ø Can be seen waveform, frequency, time, frequency modulation, sweep, programmable, frequency doubling, logarithmic Settings including computer (control/storage/recording/printing) |
|
Mains input: |
220V 50HZ |
|
Power: |
1.5KW |
|
Type of cooling: |
Natural air cooling |
|
Total weight: |
About 75kg |

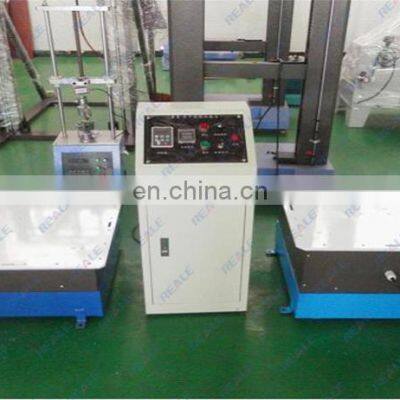

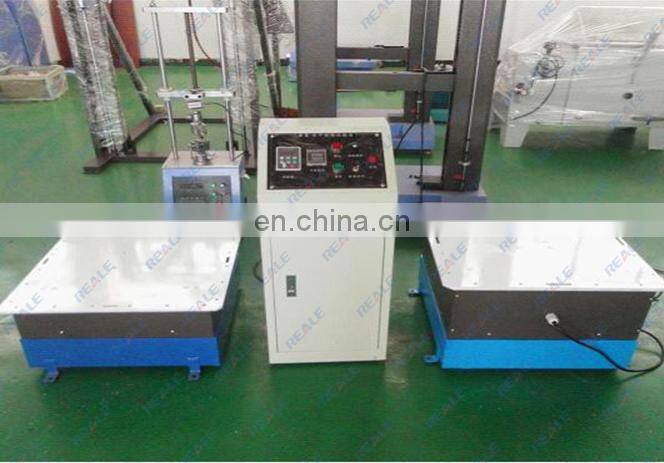

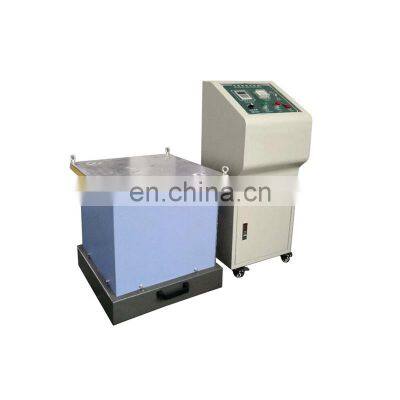

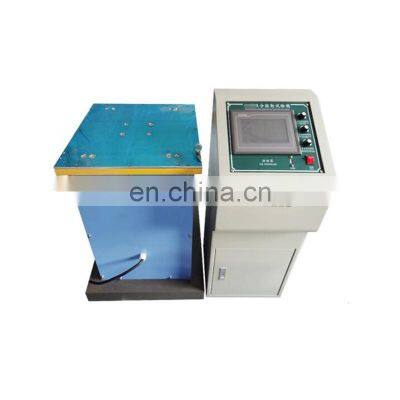

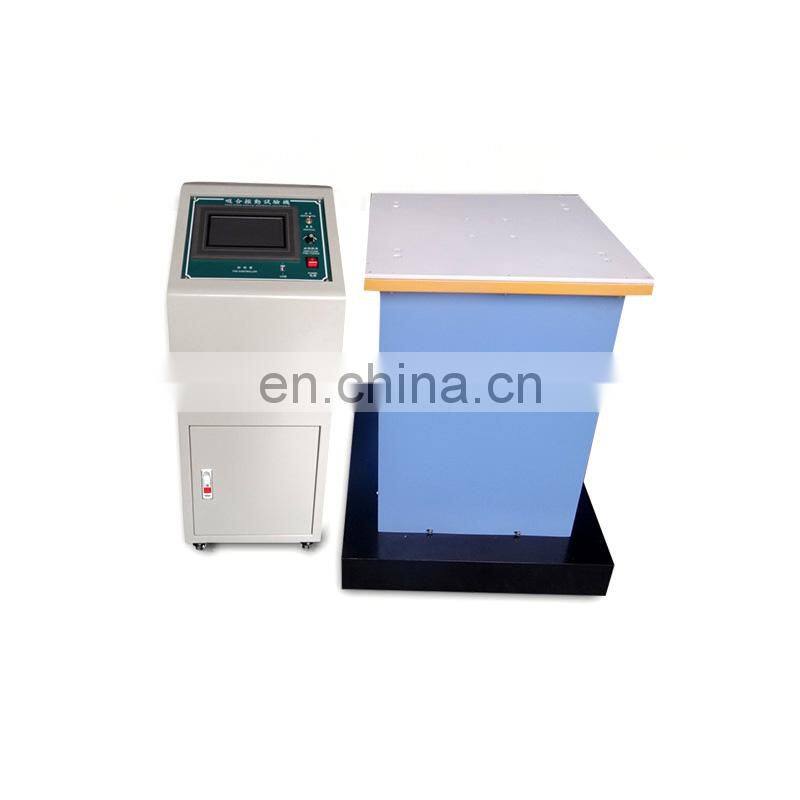

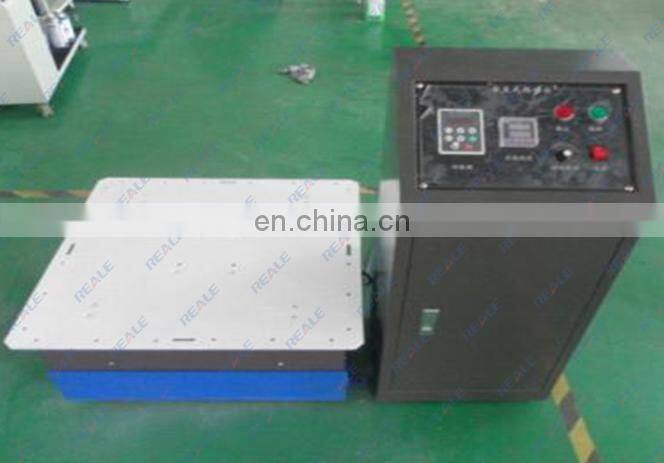

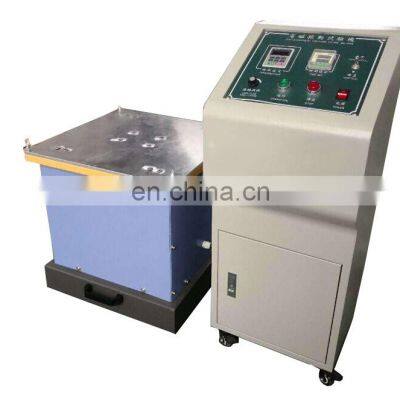

Image:
Can be customized as your demand
Installation
Training
Calibration
Preventive Maintenance
Technical Support
Relocation Assistance
Upgrade
Repair & Parts
Q:What about your quality?
A:Each equipment must be carry out 100% examination and test again before shipping
Q:What is the MOQ ?
A:Most instruments support MOQ one set.
Q:How long the delivery time ?
A:At most of time, we have stock in the factory. If there is no stock, normally, the delivery time is 15-20 working days after deposit receipt. If you are in urgent need, we can consider making special arrangement for you.
Q:How long is the warranty of the products?
A:One year ,but we can provide you life long support .
Q:What is the package?
A:Export standard Solid wooden case
Q:What is the shipping way ?
A:We have stable forwarding agent for air and sea transportation ,and also express about DHL TNT etc , we will suggest you the best shipping way base on your requirement .
Q:What is the payment term ?
A:T/T, L/C,Western Union,Money gram ,Paypal etc
Q:Do you accept customization service?
A:Yes, of course, we can not only offer standard Testing Chamber, but also customized machines according to your request. Don't hesitate to tell us your requirement, we will try our best to meet your needs.
Q:Can we visit your factory before order?
A:Yes, we warmly welcome and sincerely invite you or your team to visit our factory, we will help to arrange hotel and pick up you from airport
