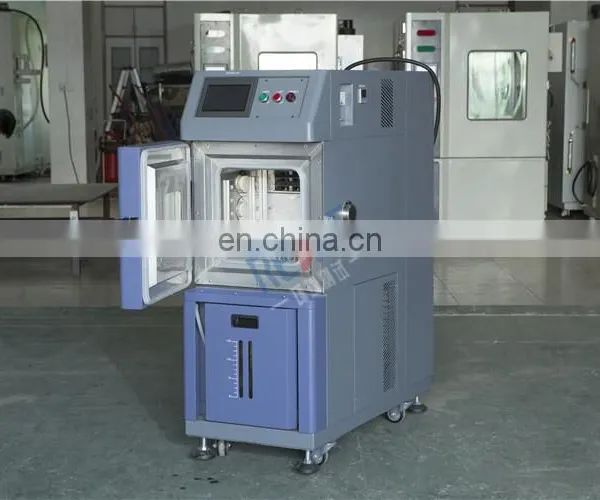

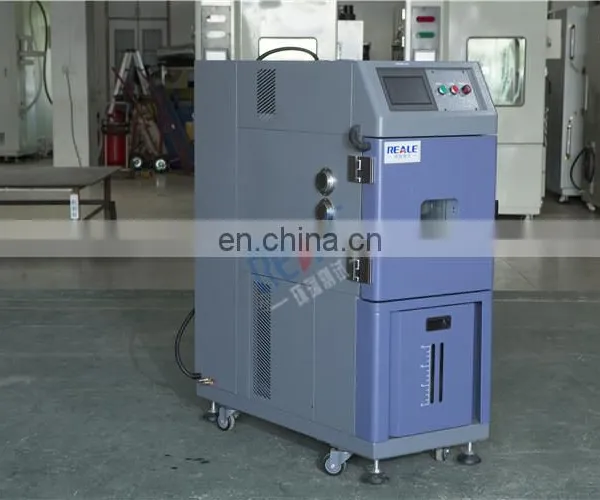

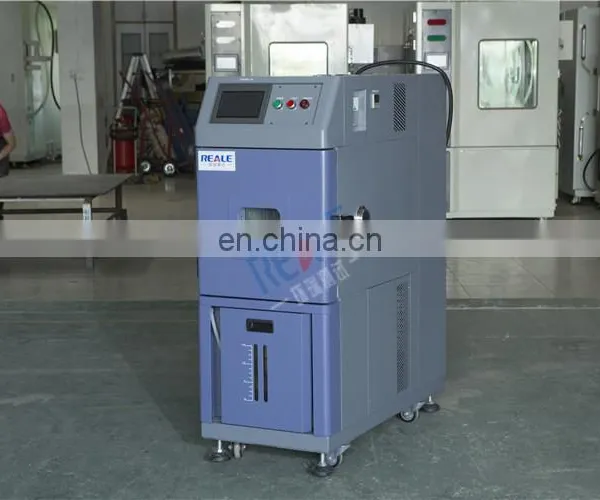

Help CenterClimatic Temperature Humidity Camera Cycling Hot and Cold Test Cabinet Climate Test Chamber
Related Products
-
-60C~150C Thermal Shock Test Chamber Two Zone Under Alternating High-low Temp Testing Environment Hot Cold Thermal Shock TesterNegotiableMOQ: 1 -
Stable Humidity Temperature Damp Heat Environmental Stability Climate Test ChamberNegotiableMOQ: 1
-
Standard Environmental Humidity Temperature Steady State Testing Cabinet Climate Chamber Factory PriceNegotiableMOQ: 1
-
High Quality Damp Heat Temperature Humidity Stability Chamber / CameraNegotiableMOQ: 1
-
Lab Climatic Testing Used Heat Temperature Humidity Cycles Damp Moisture Test Chamber Climate Resistance Test ChamberNegotiableMOQ: 1
The temperature and humidity values set by the user can be maintained in the temperature and humidity test chamber, and these temperature and humidity values can also be alternately changed by program settings. If you need to test the performance of the product under high temperature, low temperature, high humidity, dryness, alternating temperature and humidity, then Huanrui temperature and humidity test chamber is your best choice.
| Model | RHP-23 | RHP-64 | RHP-80 | RHP-100 | RHP-120 | RHP-150 | RHP-225 | RHP-408 | RHP-800 | RHP-1000 | |
| System | Balanced temperature & humidity control system |
||||||||||
| Temp.Range | -20°C~150C°;-40°C~150C°;-70°C~150C° |
||||||||||
| Humidity Fluctuation | 20%~98%R.H | ||||||||||
| Temperature Deviation | ±0.5℃ | ||||||||||
| Humidity deviation | ±2.5%R.H | ||||||||||
| Heat Up Time | -20°C~150°C 45 minutes, -40°C~150°C 60 minutes, -70°C~150°C 75minutes | ||||||||||
| Pull Down Time | 20°C~-20°C 40minutes, 20°C~-40°C 60minutes, 20°C~-70°C 85minutes | ||||||||||
| Internal dimension | W | 30 | 40 | 40 | 50 | 50 | 50 | 60 | 68 | 100 | 100 |
| H | 30 | 40 | 50 | 50 | 50 | 60 | 75 | 80 | 100 | 100 | |
| D | 25 | 40 | 40 | 40 | 48 | 50 | 50 | 75 | 80 | 100 | |
| External dimension | W | 50 | 60 | 60 | 70 | 70 | 70 | 80 | 88 | 120 | 120 |
| H | 125 | 140 | 155 | 155 | 155 | 161 | 176 | 176 | 195 | 195 | |
| D | 90 | 110 | 110 | 115 | 123 | 125 | 125 | 150 | 155 | 175 | |
| Insulation material | Stainless steel 304 | ||||||||||
| Exterior meterial | Backed paiting steel or stainless steel(SUS304) | ||||||||||
| Insulation meterial | Rigid polyruethane foam +glass fibre | ||||||||||
| Refrigeration system | Single section/cascade type, hermetic/semitight compressor,CFC free refrigerant | ||||||||||
| Controller | Color LCD screen in English/Chinese, programing,communicating function | ||||||||||
| Safety Devices | No welding wire switch, compressor overheating and over current protection, over temperature protection, blower overload protection, dry heating machine protector,low water protection, fault warning system. | ||||||||||
| Standard Accessories | one observation window, one test hole, two sets of test rack, one floodlight, one indicator light, four moving wheels, one humidifying tank, 2meters of power cord, communication interface | ||||||||||
| Ambient Temp. | 5°C~35°C | ||||||||||
| Power | AC380V±10% 50HZ 3 phase 4 wires+ground wires | ||||||||||
If you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days. We can offer operation video and English operation muanual. We can provide video-conference. If customers require on-site service, the transport and travel expense shall be borne by customer.
Pre-service
--24 Hours online service for your consult.
--Help choose right model,and a series of service,person,advise.
Middle service
--Give you best offer
--Provide discount for many sets order
--Do customer's request:
--Choose payment term you convienent.
--Promptly production and delivery,inform you in time.
--Can provide invoice value as you like to decrease your tax.
After sale service
--1 year warranty service and all life maintenance.
--Technical Egineer are avalible for oversea trainning.
--Free change for some parts
--Remote control technical consult
--Free installation DVD
--Maintenance plan
