Product Application
Salt spray corrosion test chamber can assess the ability of salt spray corrosion on materials and its protective layer, and the similar process quality of similar protective layers. At the same time, it can assess the ability of certain products to resist salt spray corrosion; this product is suitable for parts and electronic components. Salt spray corrosion tests on components, protective layers of metallic materials, and industrial products.
SPECIFICATIONS |
||||||||
Model |
RHL60 |
RHL90 |
RHL120 |
RHL160 |
||||
Test temperature |
salt water test 35℃±1℃, corrosion test 50℃±1℃ |
|||||||
Saturated barrel temperature |
salt water test 47℃±1℃, corrosion test 63℃±1℃ |
|||||||
PH |
salt water test 6.5-7.2, corrosion test 3.0-3.2 |
|||||||
Temperature deviation |
±2.0℃ |
|||||||
Internal dimension(CM) |
60X40X45CM |
90X50X60CM |
120X50X100CM |
160X50X100CM |
||||
External dimension(CM) |
113X107X63CM |
146X128X91CM |
190X140X120CM |
224X150X160CM |
||||
Water volume(L) |
15 |
25 |
40 |
60 |
||||
Spray quantity(ml/h) |
1.0-2.0 |
|||||||
The way |
Air extrusion |
|||||||
Safety Devices |
Water controller, state warningx3, overheat protection switchx2 |
|||||||

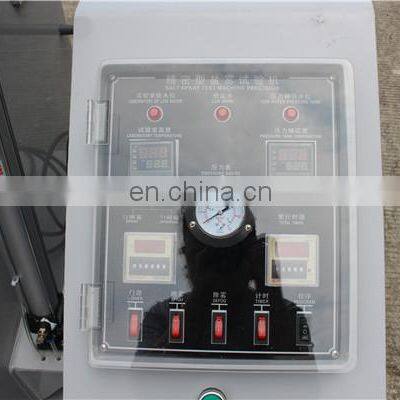

Name: Controller
Inside and outside the box are made of imports of high temperature and high humidity and corrosion of A gray PVC, the use of advanced ring belt production of three-dimensional reinforcement technology, welded, strong structure, never deformation, gorgeous generous. Suitable for salt spray, copper acetate and other test specifications test.
Name: Placement Table
The sample placement table is made of high temperature resistant ABS board, which has strong bearing capacity (less than 10KG, the test sample rack adopts the plane indexing type, adjusts the angle randomly, and the fog on all sides is even, the fog is completely consistent, the test result is accurate, and the number of test samples is placed.
Name: Nozzle
Made of special glass mouth, adjustable spray size and spray angle
Name: Heating pipe
With direct heating, the heating rate reduces the standby time. When the temperature is reached, the constant temperature state is automatically switched, the temperature is correct, and the power consumption is low. Pure titanium heat pipe, acid and alkali corrosion, long service life.
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
If you meet any problems in future during testing process, we promise we will give you a reply within 48 hours and solution provide within 3 working days. If customers require on-site service, the transport and travel expense shall be borne by customer.
Dongguan Huanrui Environmental Testing Equipment Co., Ltd. was established in 2001. It is a professional manufacturer of simulated environmental testing equipment integrating R&D, design, production and sales. Huanrui has passed ISO9001:2015 international quality management system certification. In 2016, it was awarded the honorary title of "High-tech Enterprise" and obtained a number of national patents for product technology. In 2018，the branch of Huanrui “Hangzhou Huanrui Test Equipment Co., Ltd." was established in Hangzhou city and a service office was established in Vietnam.
Q: Are your company a trading one or a factory?
A: We are a factory over18-year experience.
Q: After an order is placed, when to deliver?
A: Generally about 25days. If we have inventory, we can arrange to ship within 3-5 days. Please be aware that our production lead times depend on specific items and item quantities.
Q: What about the product' services and quality?
A: We have Pre-service, middle-service and after-sale service. Can provide video training to show you how to install & operate. We can also arrange engineer to train the operation of equipment to customer's company when you need. Core components almostly are from the import.
