Engineer Design Laboratory Test Water Resistant Testing Equipment

Engineer Design Laboratory Test Water Resistant Testing Equipment photo-1
Engineer Design Laboratory Test Water Resistant Testing Equipment photo-2
Engineer Design Laboratory Test Water Resistant Testing Equipment photo-3
Engineer Design Laboratory Test Water Resistant Testing Equipment photo-4
Engineer Design Laboratory Test Water Resistant Testing Equipment photo-5
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Government ministry/Bureau/Commission
Year Established:
2009
Annual Export Value:
US$2.5 Million - US$5 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Product Description

Product Application

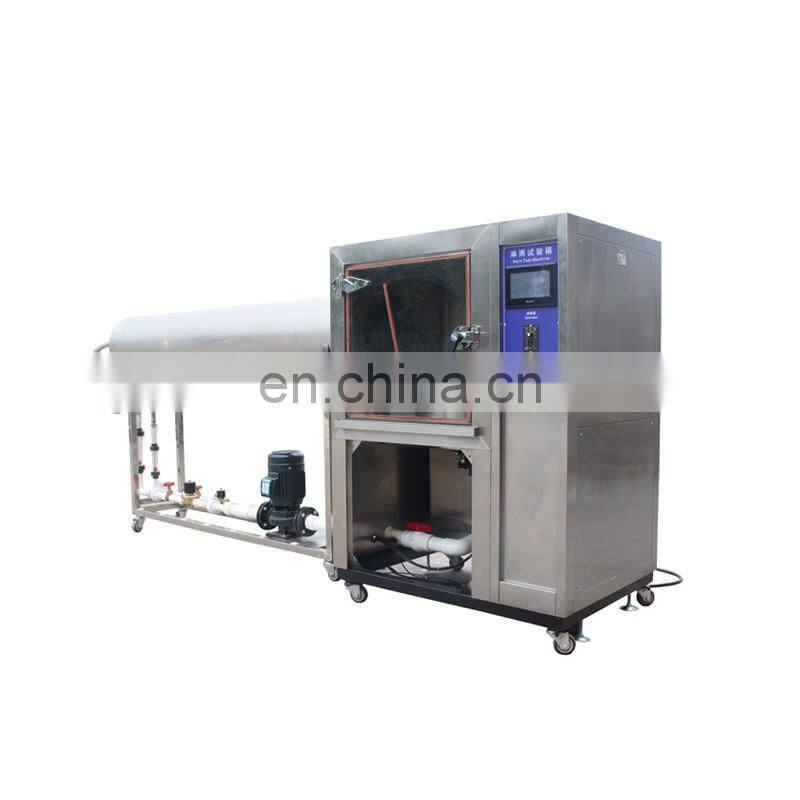

Waterproof testing machine is applicable to external lighting and signal devices and automotive lamp housing protection, can provide realistic simulation of electronic products and their components during transport and use may be subjected to various water and spray test environment. In order to achieve detection of various products waterproof performance.

SPECIFICATIONS
Model
RAI800
RAI1000
Temp. range
Rt~100℃
Spray ring radius
R375mm
R500mm
Diameter
φ16mm
Spray aperture
φ0.4mm
Aperture spacing
50mm

Internal dimension
(CM)
W800
W1000
H800
H1000
D800
D1000

External dimension (CM)
W1080
W1200
H1180
H1380
D1540
D1760

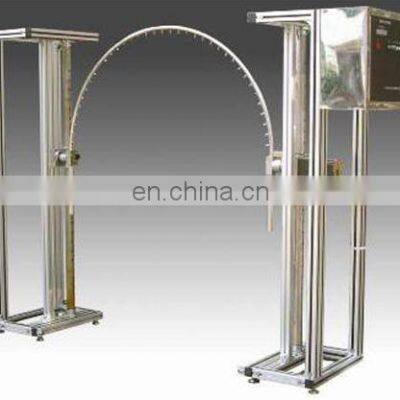

Pendulun swing tube
360° rotating
Turn right arm
±45°,±60°,±90°,±180°
Hydraulic control
Flowmeter
Controller
Imported FM Inverter/Imported Programmable Time Computer Integrated Controller
Certifications
Detailed Images


Name:  Machine Materials


Case shell material is treated with high-quality stainless steel plate, and the inner material is made of stainless steel plate.

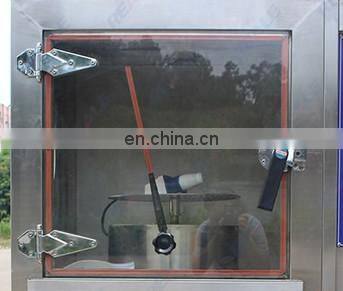

Name: Visible Glass Door

Large-area visible glass door facilitates observation of the test sample in the test chamber.


Name: Moving wheels

The bottom of the machine adopts high-quality fixed PU wheels, which is more convenient and quick to move.

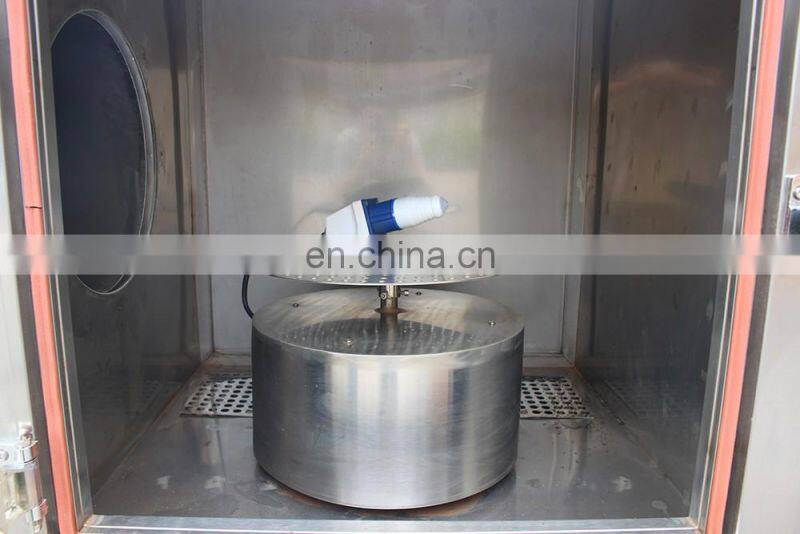

Name:  Sample Stage

Adjustable speed sample stage.

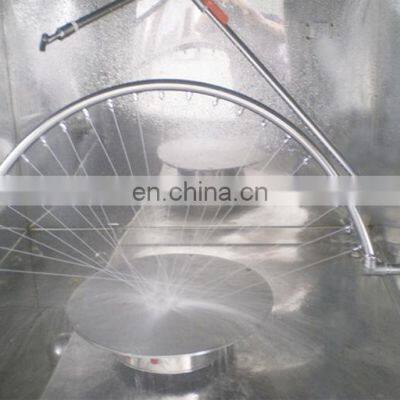

Name: Water spraying device

With 270 degree pendulum tube and 360 degree swivel water jet device.

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to    use the machine.

* Engineers available to service machinery overseas.

If you meet any problems in future during testing process, we promise we will give you a reply within 48 hours and solution provide within 3 working days. If customers require on-site service, the transport and travel expense shall be borne by customer.

Packing & Delivery
Company Information

Dongguan Huanrui Environmental Test Equipment Co., Ltd. is an influential manufacturer, specializing in the production environmental testing equipment over 18years. Have won the honorary title of High-Tech Enterprise, obtained national patents of various products and technologies and been certificated by ISO9001:2015 International Quality Management System. Our company main products are programmable constant temperature and humidity test box, walk-In aging test room, cold and heat shock test box, rapid temperature change test box, high and low temperature test box, and our products are used in electronic electrician, communication, computer, aviation, weapon, vehicle, ship, petrifaction and other industries and fields.

FAQ

Q: Are your company a trading one or a factory?
A:  We are a factory over18-year experience.

Q: After an order is placed, when to deliver?
A: Generally about 25days. If we have inventory, we can arrange to ship within 3-5 days. Please be aware that our production lead times depend on specific items and item quantities.

Q: What about the product' services and quality?
A: We have Pre-service, middle-service and after-sale service.
 Can provide video training to show you how to install & operate. We can also arrange engineer to train the operation of equipment to customer's company when you need. Core components almostly are from the import.
