DC High Voltage Testing tool Series HVT/ cable breakdown testing, Digital kilo voltmeter and uA/mA meter displayed,low weight

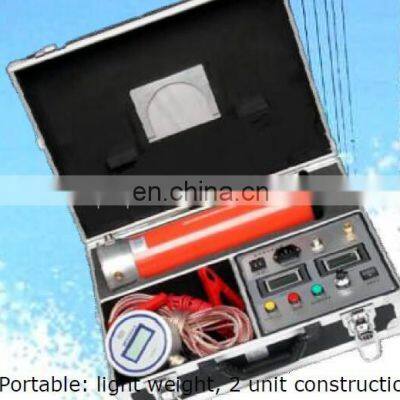

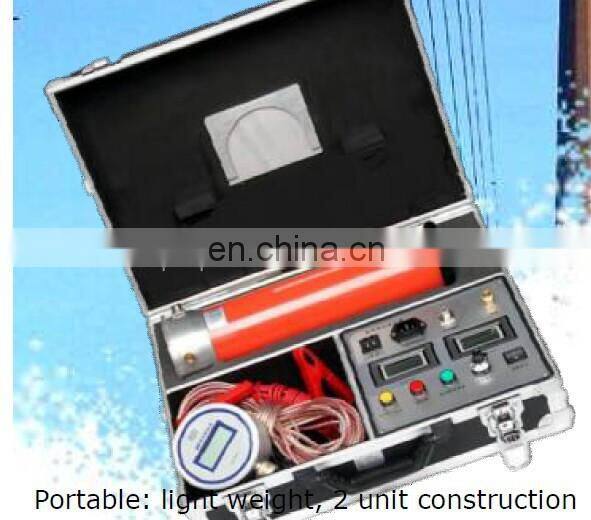

Portable: light weight, 2 unit construction
• Rugged, Reliable
• Digital readout of test voltage in kV, leakage current in μA / mA·
• Contains all features needed for electrical maintenance, testing of
new or installed electrical apparatus like cables cables, zinc oxide
arrester,motor etc.
• Bring great convenience to measurement of zinc oxide arrester with the added function of high-accuracy 75%VDC-1mA.
Application:
These portable testers have been designed to be used in testing high voltage equipment in power engineering. Routine testing of the insulation and leakage is a necessary requirement for surge arresters, cable breakdown testing, capacitor charging and other laboratory use.
Main Features:
•Switched-mode technology utilizing pulse width modulation to control the output voltage accurately.
•Voltage divider is an integral part of the testerwith an surge limiting resistor.
•Tester delivered in two sections: Control and HV unit. Each packed in a flight case for easy transportation.
•Testers of over 200kV voltage, HV unit has adjustable legs to increase the equipment's stability.
•Digital kilo voltmeter and μA/mA meters display the test voltage and leakage current.
•Zero start up. Audible alarmand LEDs for breakdown and over voltage occurrences.
•Small dimension. Low weight. Carried conveniently.
•Discharge polewith limiting current impedance.
Technical Data:
Supply power : 220V AC ± 10%, 50 Hz.
Output voltage : As per model.
Output current : As per model.
Environment temperature : 450C
Ripple factor : < 0.35%. Relative humidity : 90%.
rip mA : 1.15 times rated Relative altitude : 1500m
ating : current.
Intermittent. (Max.30 minutes at full load).
Accuracy and stability of HV adjustment : <1%.
Meters :LED digital readouts for kV: Double range mA: Double range
Accessories:
• Molded mains card - 1 No.
• Extra mA meter, digital in HT side - 1 No.
• Interconnecting cable, 3 Meter long - 1 No.
• Earth cable, 4 meter long - 1No.
• Discharge rod - 1 No.
Model Output Control Unit HV Unit Dimension(cm) Weight(kg) Height(mm) Weight(kg)
HVT-60-5 60kV/5mA 22×34×30 7 800 17
HVT-100-5 100kV/5mA 22×34×30 7 880 20
HVT-120-5 120kV/5mA 22×34×30 7 880 20
HVT-160-2 160kV/2mA 22×34×30 7 905 19
HVT-200-5 200kV/5mA 40×50×27 16 1200 23
HVT-250-5 250kV/5mA 40×50×27 16 1205 25
HVT-300-5 300kV/5mA 40×50×27 16 1208 25
* Specification subject to change due to constant up gradation Modelsb beyond 300 kV against specific inquiry
Why TOP Is Your Best Choise???
Exquisite design, good performance, high quality, new and advanced technology adopted, low price!!!
Other Testing Equipment:
Acidity tester model ACD-3000I
Moisture content tester (TPEE)
Total base number analyzer (TBN tester) TBN-2030
Fully automatic interfacial tension analyzer model IT-800
Gas-chromatography transformer oil gas analyzer model DGA2013-1

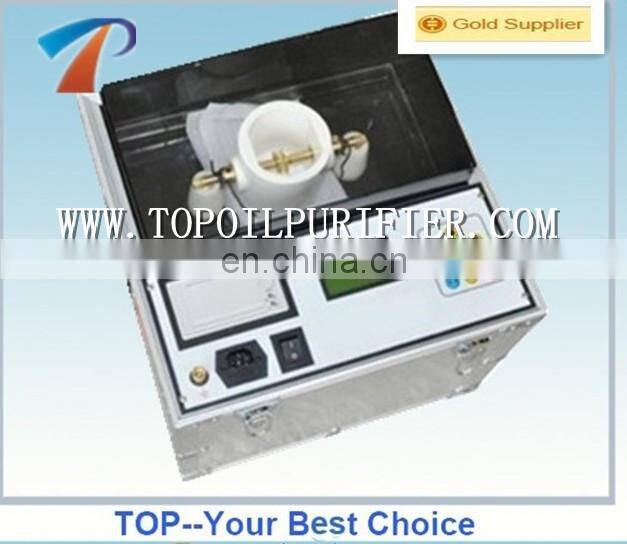

Transformer oil breakdown voltage tester ( BDV test kit) series IIJ-II
