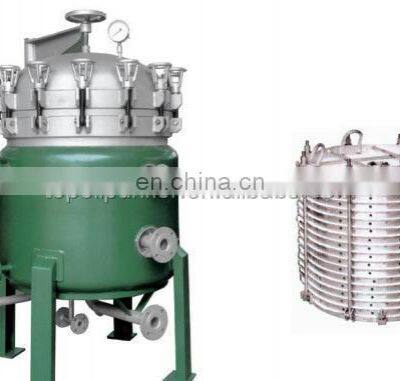

Series VFD-II horizontal paper plate precision filtering machine
Description
Series VFD-II horizontal paper plate precision filtering machine is a kind solid-liquid separation equipment of high efficiency, energy saving, precision, clear filtration with closed operation. It is widely used in chemistry, petroleum, food, oil, pharmaceutical and other industries.
Properties of applicable object: material having requirements on weak corrosion and high hygiene.
Application scope
Beverage: beer, fruit juice, wine, milk, etc..
Food: oil, dewaxing, degreasing, bleaching, vinegar, sweet syrup, etc..
Medicine: hydrogen peroxide, vitamins, etc..
Other: purification of air, water, etc.
Features
The filtering machine works in a closed cylinder body and is composed of a plurality of filter plates arranged horizontally with filter paper clipped in the middle thereof. It filters in a pressure way in a closed container relying on filter paper as filter medium. During the filtration, the liquid to be filtered is input into the filter body by a delivery pump and enters between two layers of filter plates along a hole on the outer circumference of the filter plate. The liquid to be filtered flows into the center channel of the filter plate passing through the filter paper and supporting plates with holes, and then flows out from the output on the bottom of the filter body. After filtration, the remaining liquid in the filter machine by the compressed air.
Technical Parameter:
Model |
Diameter of cylinder body |
Working pressure (Mpa) |
Working temperature (℃) |
Filtering area |
Diameter of inlet & outlet |
Overall ￠×H
|
|
VFD-II-1.5 |
400 |
≤0.3 |
≤150 |
1.5 |
Dg40 |
2 |
670×975 |
VFD-II-3 |
600 |
3 |
Dg40 |
4 |
970×1285 |
||
VFD-II-5 |
800 |
5 |
Dg40 |
7 |
1100×1800 |
||
VFD-II-7 |
800 |
7 |
Dg40 |
10 |
1100×1935 |
||
VFD-II-10 |
900 |
10 |
Dg65 |
13 |
1300×2000 |
||
VFD-II-12 |
900 |
12 |
Dg65 |
15 |
1300×2160 |
Located at Chongqing city--a southwest electromechanical manufacturing center as well as national municipality, Chongqing TOP is a professional leading manufacturer and supplier of oil purifiers and various related testers. We consists of departments respectively for technological development, machinery manufacture, instrument manufacture, quality control etc. On basis of mature development and manufacture technology and highly qualified production management team, the products own high quality, easy operation, excellent performance and lone service life.
TOP Oil Purifiers are widespread in the fields of electric power, petrifaction, mineral, shipbuilding, steel construction, bridge, automobile and railway, playing a great role in reducing energy consumption for clients as well as environmental pollution. We provides you with reliable oil purifiers such as transformer oil purifier, turbine oil purification machine, hydraulic oil purifier, lubricating oil filtration machine, fuel oil restoration, oil and water separator, oil regeneration equipment, waste oil recycling equipment etc.
TOP Testers works on the development, production, market, technical and after-sale service for petrochemical analyzers, transformer substation electrical testing equipment and circuit detecting equipment. Main products are water content testers, surface/interfacial tension testers, flash point testers, kinematic viscosity testers, oil acidity testers, insulation oil dielectric strength testers, transformer characteristics testers, relay protection testers, high voltage testing equipment etc.
Honest Team - TOP always honestly treat you and keep faith to make you satisfied with every cooperation with us.
Sincere Communication - TOP sincerely communicate with you to guarantee the provided products to be your ideal ones.
Reliable Quality -TOP own high quality and high performance for every TOP product is under strict quality control and testing.
Service Commitment - TOP bring you prompt, considerate and professional aftersale service and technical support, and explore technology future together.
Certificates
Office & Factory
Our oil purification / recycling machines
Our customer site
Test Equipment
If you are interested in this product, please don't hesitate to contact with me. I will give response within 24 hours. Kindly add my WhatsApp +0086 13983391036 for instant communication.
