Product Description

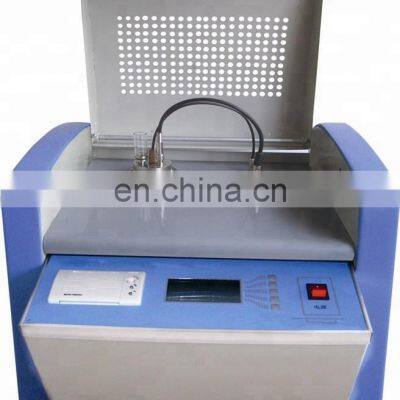

Insulating Oil Dielectric Loss And Resistivity Tester TP-6100A

TP-6100A Insulating oil dielectric loss and resistivity tester is based on ASTM D 924, IEC and GB/T5654-2007. It is used for testing dielectric loss factor and DC resistivity of insulation oil and other liquid insulating medium. The instrument is characterized by integrated structure, and integrates the dielectric loss of grease cup, temperature controller, temperature sensor, dielectric loss test bridge,

1.DC 500V dielectric dissipation factor tester for transformer oil oil cup uses a three-electrode structure in line with GB /
T5654-2007, the inter electrode spacing of 2mm, can eliminate the impacts of stray capacitance and leakage impact on the dielectric loss test results. It has a drain solenoid switch, you can drain all the sample oil in the oil cup without removing the oil cup and rinse the oil cup with sample oil.
2.The instrument uses mid-frequency induction heating, PID temperature control algorithm. This heating method has some advantages,eg, oil cup and heating body non-contact, heating evenly and quickly, also easy to control, thus the temperature strictly controlled within the preset temperature range of error.
3.Internal standard capacitors for SF6 inflatable three-pole impact of capacitors, the capacitor dielectric loss and electrical
capacity are not affected by ambient temperature, humidity, etc., to ensure that the instrument is still consistent accuracy after prolonged use.

Power Voltage	AC 220V±10%
Power Frequency	50Hz/60Hz ±1%
Measurement Range	capacitance	5pF~200pF
		relative permittivity	1.000~30.000
		dielectric dissipation factor	0.00001~100
		DC Resistivity	2.5 MΩm~20 TΩm
Measurement Accuracy	capacitance	±(1%reading+0.5pF)
		relative permittivity	±1% reading
		dielectric dissipation factor	±(1% reading +0.0001)
		DC Resistivity	±10% reading
Resolution Ratio	capacitance	0.01pF
		relative permittivity	0.001
		dielectric dissipation factor	0.00001
Temperature Range	0~125℃
Thermometric Error	±0.5℃
AC testing voltage	500 ~ 2200V adjustable, frequency 50 HZ
DC testing voltage	0 ~ 500V adjustable
Power Dissipation	100w
Boundary Dimension	500mm360mm420mm
Weight	22kg

1.1.Fully Automatic Karl Fischer Water Content Tester TP-2100
2.Digital Karl Fischer Water Content Tester TP-6A
3.Kinematic Viscosity Tester VST-2000
4.Kinematic Viscosity Tester TPV-8
5.Kinematic Viscosity Tester VST-3000
6.Fully Automatic Oil Acidity Tester (6 cups) ACD-3000I
7.Fully Automatic Surface/Interface Tension Tester IT-800

8.Automatic Surface/Interface Tension Tester (Platinum Plate Method) IT-800P
9.Fully Automatic Open Cup Flash Point Tester TPO-3000
10.Fully Automatic Closed Cup Flash Point Tester TPC-3000
11.Digital Open Cup Flash Point Tester TPO-100
12.Digital Closed Cup Flash Point Tester TPC-100
13.Cloud Point & Pour Point Tester PT-2000

MOQ	1 Set
Trade Terms	EXW, FOB, CIF, CFR
Payment Terms	T/T, L/C
Port of Loading	Any Port of China
Packing Method	Internaional Standard Wooden Case
Transportation Method	By Sea, By Land, By Air, By Express
Supply Capability	100 Sets/Month

* The warranty period is 24 months from commissioning acceptance date on. After the warranty period is over we provide lifelong maintenance and technical service.
* We guarantee the maintenance time no more than 3 working days and response time within 1 hour.
* We build instrument service profile for our clients to record the product service and maintenance conditions.
* After instruments start service, we will pay follow-ups to collect the service conditions.
