Mobile Oil Filtering Machine GF Coconut Oil Centrifuge
- 1000 per Month
- T/T Credit Card
- Liquid-Liquid-Solid Separation Centrifuge for Edible Oil, Turbine Oil, Grease
- High Speed GF Tubular Centrifuge For Edible Oil, Coconut Oil Etc.
- Tubular Centrifugal Cooking Oil Water Separation/ Virgin Coconut Oil Centrifuge Machine
- GF-105 Virgin Coconut Oil Tubular Centrifuge Separator Machine/SS Level Separating Centrifuge Machine
- GF-125 Virgin Coconut Oil Water Separator,Coconut Milk Tubular Centrifuge Separator Machine
- GF-LD Tubular Separator/ Virgin Coconut Oil Centrifuge Machine
Product Description
Mobile Oil Filtering Machine GF Coconut Oil Centrifuge
Introduction:
This Three Phase Small Capacity Virgin Coconut Oil Centrifuge Machine is used for separating various liquids that are difficult for separation, especially adapt for liquid-liquid separation, liquid-liquid-solid separation, liquid-solid separation. It's widely used in pharmacy, healthy food, drinks and chemical industries, etc. Such as transformer oil, edible oil, turbine oil, lubricating oil, vegetable oil ,fuel, grease, saponification, all kinds of powder, and sugar paste. It also can be used in separating blood plasma of biological leechdom, extracting blood plasma from animal's blood; refining soaking placenta, multi-phenol tea, and concentrated phosphatide from soybeans; purifying ejiao; separating oil and handling sewage, various kinds of medicine, etc
Working principle:

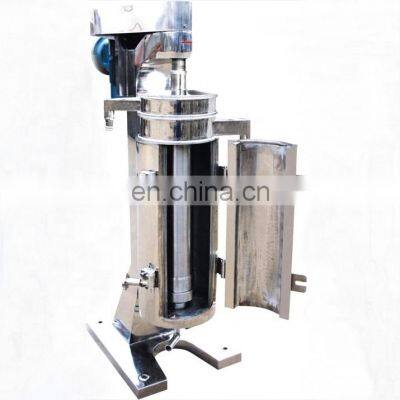

This Virgin Coconut Oil Centrifuge Machine is a high-speed separator with strong separating capacity, as an intermittently operated centrifugal equipment, composed of the main body, driving unit, bowl, liquid collector tray, and feed liquid bearing seat. The upper part of the bowl is the flexibility spindle and the lower part is the floating damper bearing. The spindle is coupled by coupling seat buffer and the driven wheel. The motor passes the dynamic force to the driven wheel through driving strap and tension pulley, thus for the bowl to rotate around its own axis at high speed, to form a strong centrifugal force field. The material is injected inside from the liquid inlet on the bottom. The centrifugal force compels the material liquid to flow upwards along the inner wall of bowl, and to be separated due to densities of different ingredients of material liquid. GF model is a separating equipment where there the liquid phase of large density is formed into outer ring and the liquid phase of small density is shaped into inner ring, to flow to the top of bowl, to be discharged out from their respective liquid outlets. The micro solids settle on the wall of the bowl and are to be manually discharged after the machine is shut down.
these are tubular&horizontal centrifugal machine and vacuum oil purifier
Model | GF80 | GF105 | GF125 | GF150 |
Sedimentation volume(L) | 2.67 | 6 | 8 | 10 |
Capacity (water capacity)L/H | 600 | 1600 | 2200 | 3200 |
Motor power (kw) | 1.5 | 2.2 | 3 | 3 |
Machine dimension (mm) | 500*700*1300 | 600*1000*1600 | 600*1000*1600 | 600*1000*1600 |
Hello Friend!
Chongqing TOP is a professional leading manufacturer and supplier of oil purifiers and various related testers. We consists of departments respectively for technological development, machinery manufacture, instrument manufacture, quality control etc. On basis of mature development and manufacture technology and highly qualified production management team, the products own high quality, easy operation, excellent performance and lone service life.
Customer satisfaction is our utmost priority thus, customer service team is always on the brink to help our customers with their queries at any time.
We believe in working as a unit with an attitude of complete trust and understanding and are determined to provide safe, reliable and competitively priced products to our customers.
TOP Oil Purifiers uses single or multi-stage filtration to remove, particulate, free water, and small quantities of dissolved water if necessary. The systems are usually customized to suite the specific customer application. Oil "regeneration", "reclamation", "recycling" are all terms used to describe the process of restoring used, aged, contaminated oils to "like new" reusable condition. The reclamation process removes free water, most dissolved water, dissolved gas, particulate, carbon contamination, acids, oxidation by products, most color bodies, wear metals, and most additive chemicals.
TOP Oil Testers works on the development, production, market, technical and after-sale service for petrochemical analyzers, transformer substation electrical testing equipment and circuit detecting equipment. Main products are water content testers, surface/interfacial tension testers, flash point testers, kinematic viscosity testers, oil acidity testers, insulation oil dielectric strength testers, transformer characteristics testers, relay protection testers, high voltage testing equipment etc.
Honest Team - TOP always honestly treat you and keep faith to make you satisfied with every cooperation with us.
Sincere Communication - TOP sincerely communicate with you to guarantee the provided products to be your ideal ones.
Reliable Quality -TOP own high quality and performance for every TOP product is under strict quality control and testing.
Service Commitment - TOP bring you prompt, considerate and professional aftersale service and technical support, and explore technology future together.
Certificates
machining
cutting
welding and polishing
assembly semi-finished machine
finished machine
packed machine with enclosure
Contact us today to discuss your tailor made Oil Maintenance Plan!
