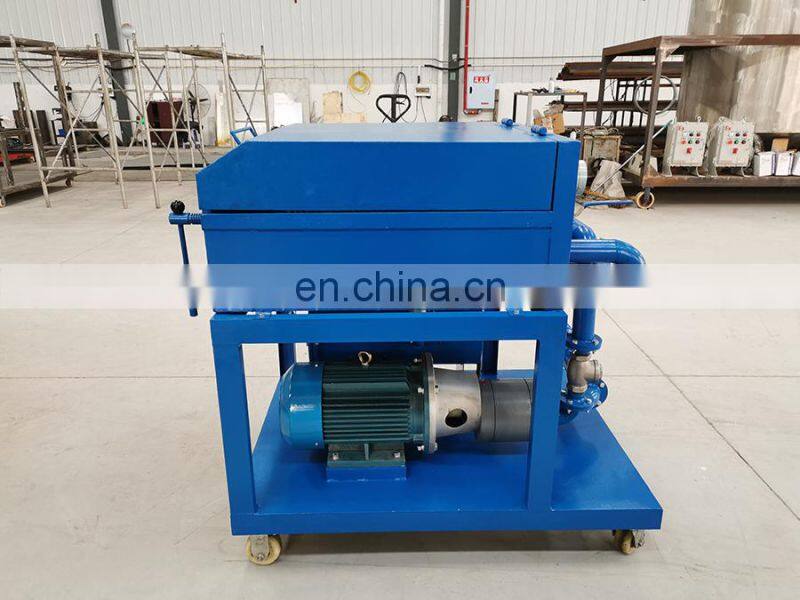

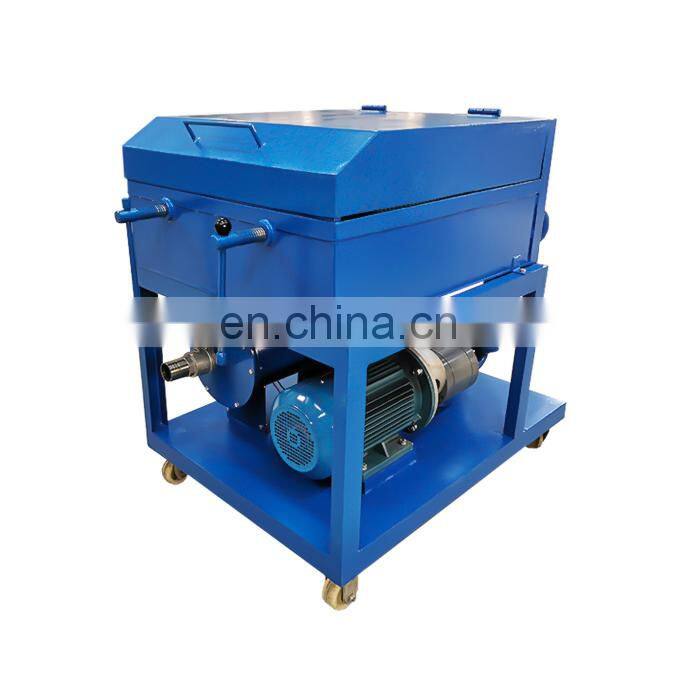

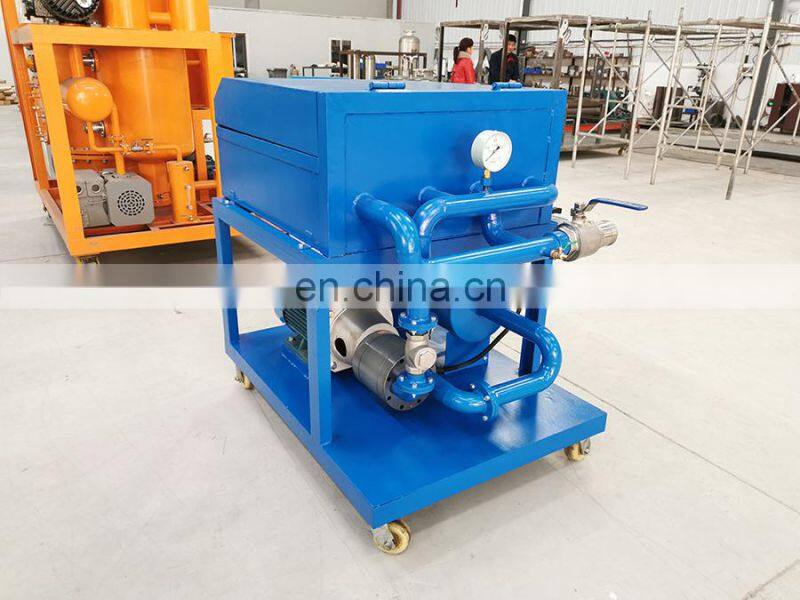

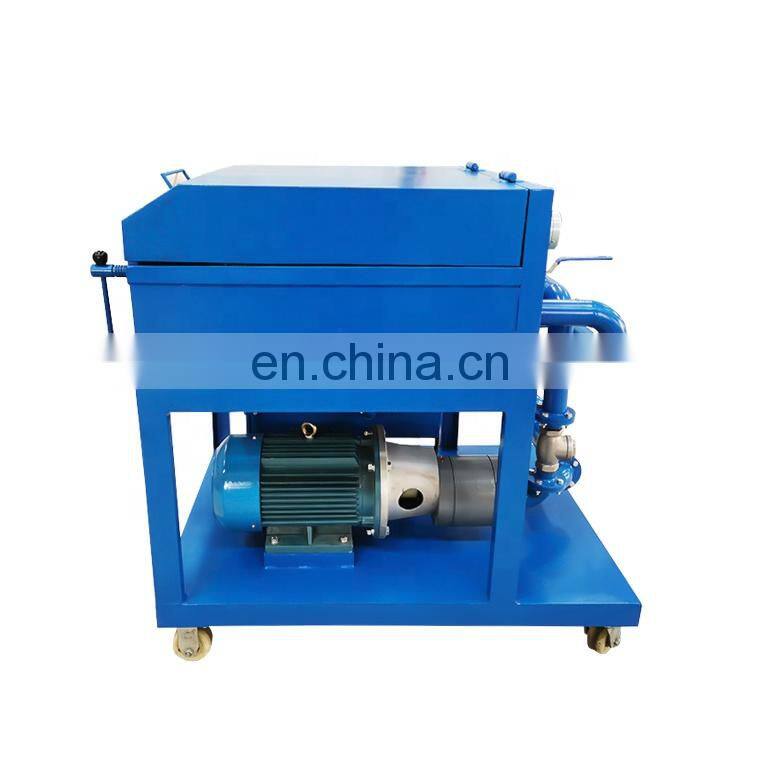

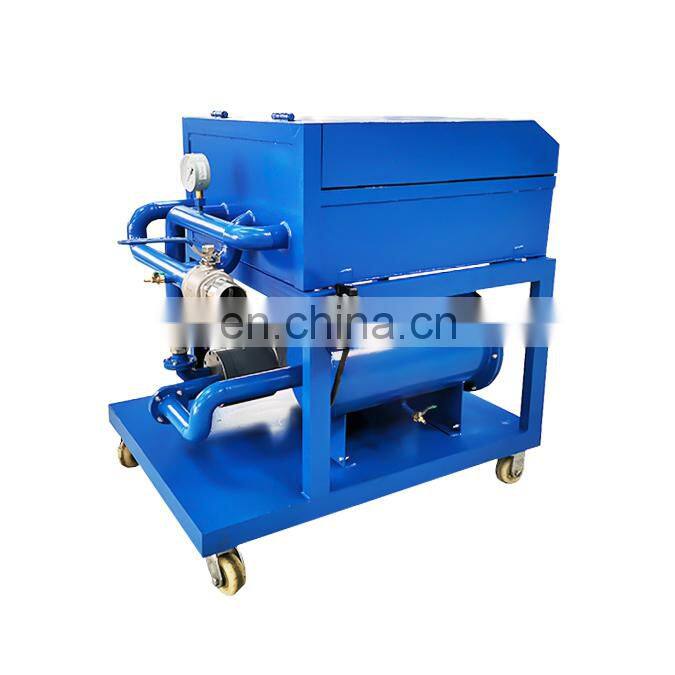

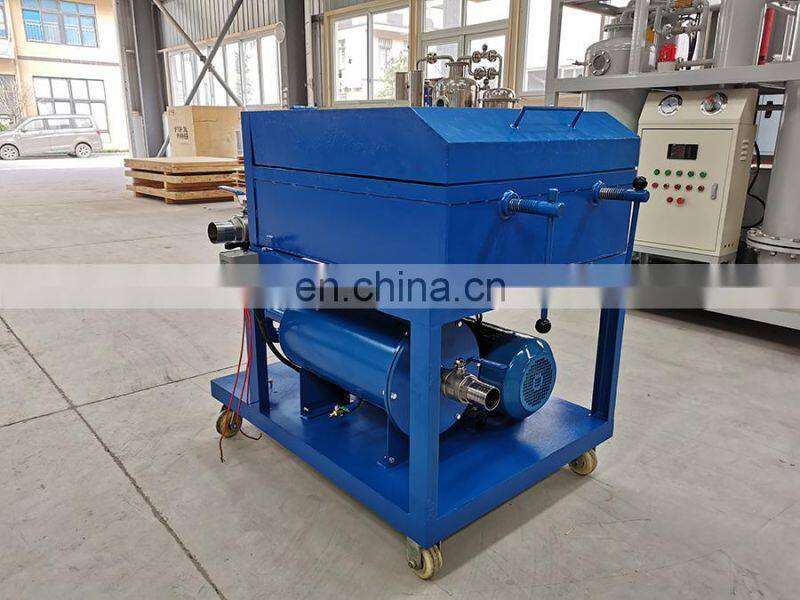

PL-30 Engine Pyrolysis Oil Paper Filtering/Manual Switch Oil Pressure Filtration Plant
- 1000 per Month
- T/T Credit Card
- 30LPM Portable Frying Oil Paper Press Filter Plate Frame Engine Oil Purifier Machinery PL-30
- PL-30 Particulate Removal Oil Filter Oil Purifier for Oils with Plate and Frame Structure
- New Pressed Coconut Oil Filtration Machine Stainless Steel Filter Press
- BAS Series Stainless Steel Virgin Coconut Oil Filter Press Machine
- High pressure commercial coconut milk processing machine
- SS filter plate for Virgin Coconut Oil / Portable oil filter press machine oil purifier
Product Description
Item | Unit | PL-30 | PL -50 | PL -100 | PL -125 | PL -150 | PL -200 | PL -300 | |||||||
Flow rate | L/min | 30 | 50 | 100 | 125 | 150 | 200 | 300 | |||||||
Working pressure | MPa | 0-0.5 | |||||||||||||
Filtering area | ≥m2 | 0.3 | 0.39 | 1.3 | 1.54 | 1.89 | 2.01 | 3.1 | |||||||
Pressurized | Manual | ||||||||||||||
Filter room number | 11 | 13 | 10 | 12 | 14 | 18 | 23 | ||||||||
Filter plate number | 12 | 14 | 11 | 13 | 15 | 19 | 24 | ||||||||
Flow rate | L/min | >30 | >50 | >100 | >125 | >150 | >200 | >300 | |||||||
Pressure | Mpa | 0.6 | |||||||||||||
Power supply | 380v 3Ph 50hz | ||||||||||||||
Power | KW | 1.1 | 3 | 4 | 5.5 | ||||||||||
Revolution | r/min | 1400 | |||||||||||||
Filter accuracy | ≥1µ | ||||||||||||||
Filter paper size | mm | 185*190 | 285*290 | ||||||||||||
Inlet | mm | 32 | 32 | 44 | 44 | 50 | 50 | 65 | |||||||
Outlet | mm | 25 | 25 | 32 | 32 | 44 | 44 | 50 | |||||||
L | mm | 700 | 750 | 900 | 1100 | 1300 | |||||||||
W | mm | 300 | 440 | ||||||||||||
H | mm | 720 | 840 | 1000 | |||||||||||
Weight | Kg | 76 | 86 | 130 | 180 | 210 | 230 | 280 |

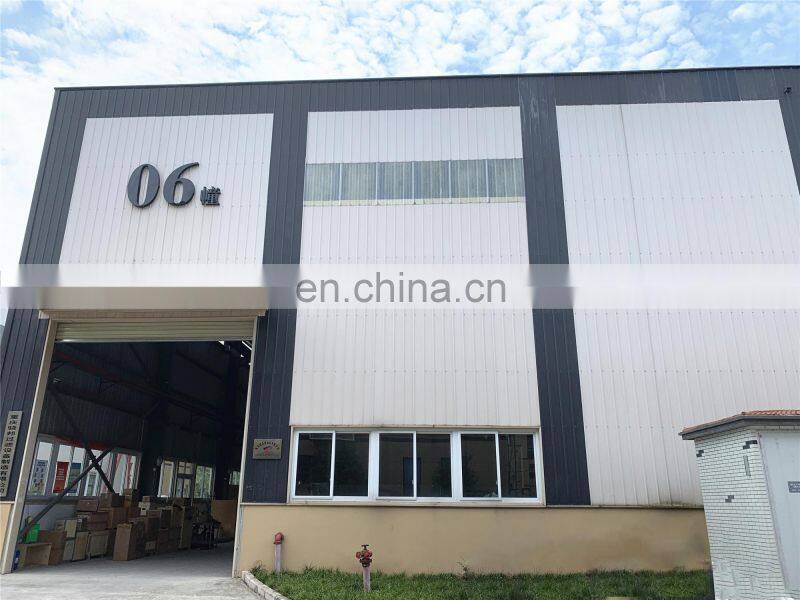

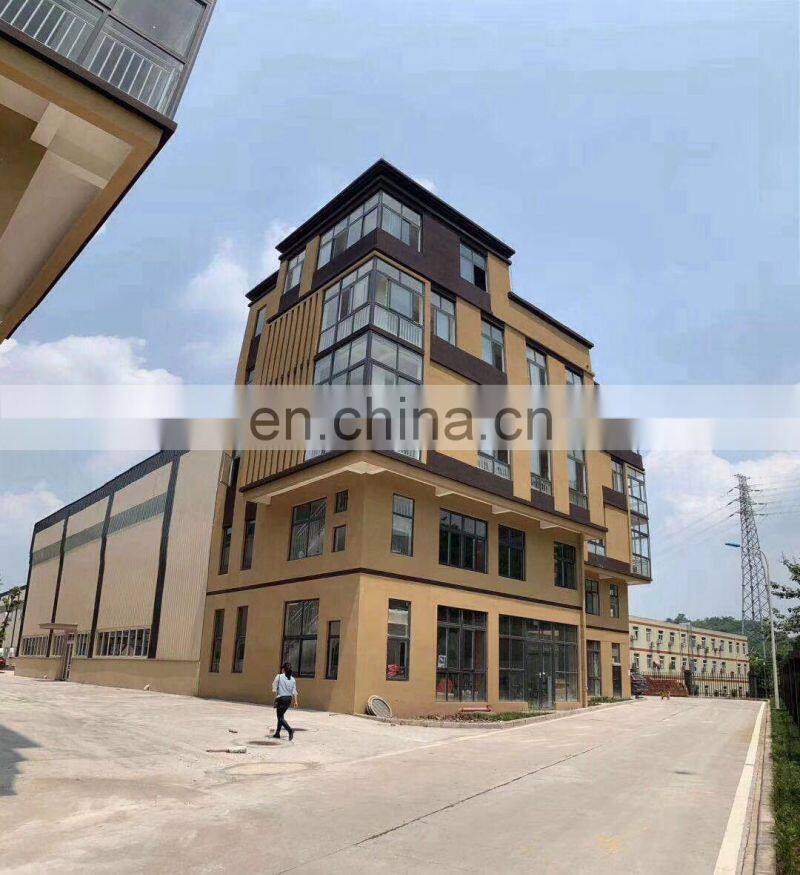

Chongqing TOP Oil Purifier Co.,Ltd, established in 2 0 1 2 , is a professional manufacturer engaged in the research, development, production, sale and service of oil purifiers and various related testers.We are located in Chongqing China - a southwest electromechanical manufacturing center as well as national municipality, which is one of the most well-known oil purifier manufacturers in southwest China. Dedicated to strict quality control and thoughtful customer service, our experienced staff are always available to discuss your requirements and ensure full customer satisfaction. On basis of mature development and manufacture technology and highly qualified production management team, the products own high quality, easy operation, excellent performance and long service life. In addition, Our company has won C E,S G S certificates. Selling well in all cities and provinces around China, our products are also exported to clients in such countries and regions as Australia, Canada, USA, South Africa , Asia etc.. Our company holds the managerial idea that “ Honest treatment,Sincere Communication,Reliable Quality and Service Commitment”, and tries its best to do well at any aspect from each part, each point of procedure of manufacturing to final inspection, packing and shipment. We also welcome O E M and O D M orders. Whether selecting a current product from our catalog or seeking engineering assistance for your application, you can talk to our customer service center about your sourcing requirements.
maintenance and technical service.
* We guarantee the maintenance time no more than 3 working days and response time within 1 hour.
* We build instrument service profile for our clients to record the product service and maintenance conditions.
* After instruments start service, we will pay follow-ups to collect the service conditions.
