2021 Ready to Ship in Stock Heating Layer TYR-10 High Vacuum Black Diesel Oil Decoloration Equipment

FOB Price

Negotiable

1 (Min.Order)

Supply Ability 1000 per Month
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

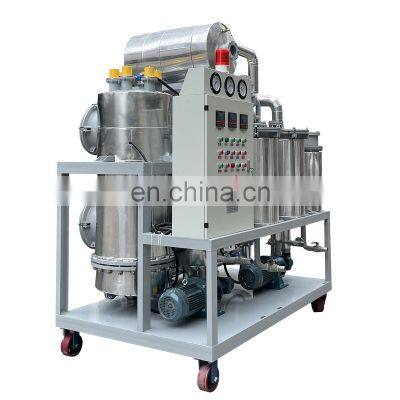

TYR Series Oil Purification and Decolorization Machine

Parameters

Unit

TYR-1

TYR-2

TYR-3

TYR-5

TYR-10

TYR-15

TYR-20

Treatment Capacity

Ton/day(8 hr))

Power Supply

380V/50HZ/3Phase (Customizable)

Working Noise

dB(A)

≤65

Working Vacuum

MPa

-0.06～-0.095

Working Pressure

MPa

≤0.5

Working Temperature

℃

30～90

Inlet (outlet) caliber

Ф25

Ф32

Ф42

Ф50

Weight

1500

2000

2500

3000

3500

4000

4500

Size

Length

1800

1850

1900

1950

2000

2200

2300

Width

1300

1350

1400

1450

1500

1600

Height

2300

2400

2500

2700

After treated

Color

≤ 1-3

Impurity

μm

≤1(Customizable)

Water

ppm

≤100

Demulsification

min

≤15(GB/F 7305)

Cleanliness

grade

≤6(NAS1638)

TYR series oil decoloration machine can quickly remove impurities, water, gases and recover the oil color to original color. This machine uses our special additive to discolor, which is purely natural and has high efficiency. It can treat hydraulic oil, machinery oil, coolant oil, cooking oil, coconut oil in oil field, mine, metallurgy, electricity, transportation, manufacturing, food industry and so on. The treated oil is very clear and transparent. It can also be equipped with waste oil distillation plant to highly improve the dark color of base oil/diesel after distillation process. Besides, it is frequently inquired by customer to pre-treat the used cooking oil before further biodiesel.

This machine adopts the latest micro-filtration technology, which is a multi-functional purification system with vacuum system, three-stage of filters(including primary filter, secondary filter and fine filter) as well as decoloring device. It adopts pure physical treatment to remove water, gases, impurities and decolor, which will not affect the composition and performance of the oil. Also, equipped with chain protection device, the machine is easy to operate, safe and reliable.

Details Image

Related Products

1.ZY series vacuum transformer oil purifier
2.ZYA series vacuum automatic transformer oil purifier
3.ZYB series vacuum transformer oil regeneration purifier
4.ZYD series double-stage vacuum transformer oil purifier
5.ZYD-I series ouble-stage transformer oil regeneration purifier
6.ZYD-M series trailer-mounted transformer oil purifier
7.TY series vacuum turbine oil purifier

8.TYA series vacuum lubricating oil purifier
9.TYB series coalescence-separation oil purifier
10.TYC series vacuum lubricating oil regeneration purifier
11.CYA series centrifugal oil purifier
12.TPR series waste engine oil recycling system
13.PL series plate and frame oil filter press
14.JL series portable oil purifier
15.BZ series transformer oil regeneration device

Packing & Delivery

MOQ	1 Set
Trade Terms	EXW, FOB, CIF, CFR
Payment Terms	T/T, L/C
Port of Loading	Any Port of China
Packing Method	Internaional Standard Wooden Case
Transportation Method	By Sea, By Land, By Air, By Express
Supply Capability	100 Sets/Month

* The warranty period is 24 months from commissioning acceptance date on. After the warranty period is over we provide lifelong maintenance and technical service.
* We guarantee the maintenance time no more than 3 working days and response time within 1 hour.
* We build instrument service profile for our clients to record the product service and maintenance conditions.
* After instruments start service, we will pay follow-ups to collect the service conditions.
