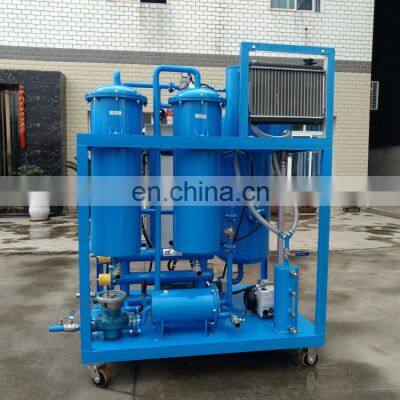

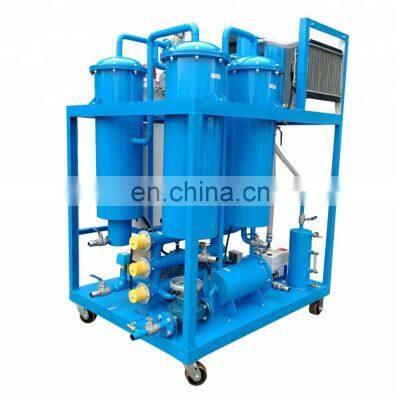

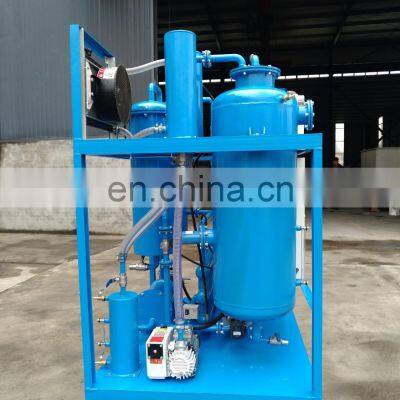

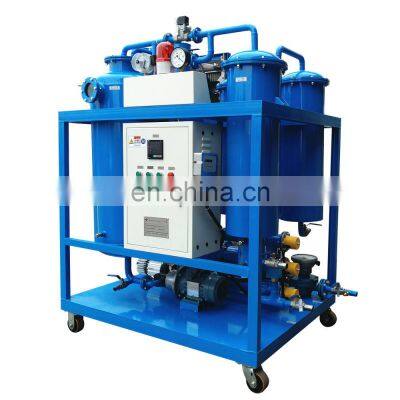

TY Series Vacuum Turbine Oil Purification System

FOB Price

Negotiable

1 (Min. Order)

Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

TY Series Turbine Oil Purification Machine

Parameter			Unit	TY-10	TY-20	TY-30	TY-50	TY-100	TY-200	TY-300
Flow rate			L/min	10	20	30	50	100	200	300
Vacuum degree			Mpa	-0.06～-0.095
Working pressure			Mpa	≤0.5
Working temperature			℃	≤40~60 (no more than 55℃ for purifying turbine oil.)
Power Supply			V/Hz	380/50/3P (Customized)
Heating power			kW	15	18	24	30	60	81	90
Total power			kW	17	20	26	32	64	86	100
Inlet (outlet) dimension			mm	Φ32	Φ32	Φ32	Φ42	Φ42	Φ60	Φ76
Weight			kg	400	480	600	700	800	1100	1350
Overall dimension	L	mm	1300	1300	1400	1400	1500	1850	2100
		W	mm	1000	1050	1100	1150	1100	1300	1400
		H	mm	1600	1700	1800	1850	1850	1900	2000
After treated by machine	Moisture content	PPM	≤50
		Demulsification value		New oil≤15min,running oil≤30min
		Impurity size	micron	≤1
		Gas content	%	≤0.1
		Clean degree	NAS	≤4 Grade

Our TY Series turbine oil purifier is applied for on-line turbine oil filtration in electric power, metallurgical, chemical engineering industries. It is good at emulsion breaking, dehydration and removing moisturem gasm impurities, soap, gelatin, acid, pigment and metal particulates in emulsified turbine oil and low-viscosity lubricating oil as well as turbine oil used in other machinery and electric power equipment, and improve the oil quality to ensure a normal work of the generator sets adjustment and lubrication system.

1. it is strong ability of dehydration and breaking emulsion, that is easy to separate the great moisture and tiny moisture out of the used oil. Because of the special break emulsion device (water separator), the emulsified oil could be treat and become transparent. 2. It is strong ability of removing impurities, that is the big area and deep-seated accurate filtration material can eliminate the tiny particles from used oil that could replace oil system clean device, make great polluted oil system recovered and meet “the operating turbine oil pollution control standard”. 3. It is strong ability of automatic, safe and reliable operation. This model is used float ball level automatic control device that realizes auto working completely without manual labour, leads to a simple and stable operation. 4. Thus, TY series is specially fit for applying to filter turbine oil, hydraulic oil and the low viscosity oil that contains lots of water or tiny particles which need to be precisely processed.

Details Image

Related Products

1.ZY series vacuum transformer oil purifier
2.ZYA series vacuum automatic transformer oil purifier
3.ZYB series vacuum transformer oil regeneration purifier
4.ZYD series double-stage vacuum transformer oil purifier
5.ZYD-I series ouble-stage transformer oil regeneration purifier
6.ZYD-M series trailer-mounted transformer oil purifier
7.TY series vacuum turbine oil purifier

8.TYA series vacuum lubricating oil purifier
9.TYB series coalescence-separation oil purifier
10.TYC series vacuum lubricating oil regeneration purifier
11.CYA series centrifugal oil purifier
12.TPR series waste engine oil recycling system
13.PL series plate and frame oil filter press
14.JL series portable oil purifier
15.BZ series transformer oil regeneration device

Packing & Delivery

MOQ	1 Set
Trade Terms	EXW, FOB, CIF, CFR
Payment Terms	T/T, L/C
Port of Loading	Any Port of China
Packing Method	Internaional Standard Wooden Case
Transportation Method	By Sea, By Land, By Air, By Express
Supply Capability	100 Sets/Month

* The warranty period is 24 months from commissioning acceptance date on. After the warranty period is over we provide lifelong maintenance and technical service.
* We guarantee the maintenance time no more than 3 working days and response time within 1 hour.
* We build instrument service profile for our clients to record the product service and maintenance conditions.
* After instruments start service, we will pay follow-ups to collect the service conditions.
