Fuel Oil Purification Decolorization Machine Decolorizing Red Diesel Equipped With Pressure Protection Device

Introduction:

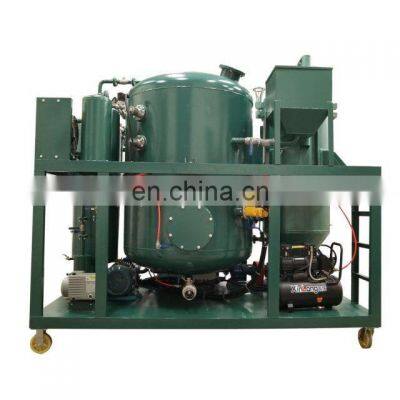

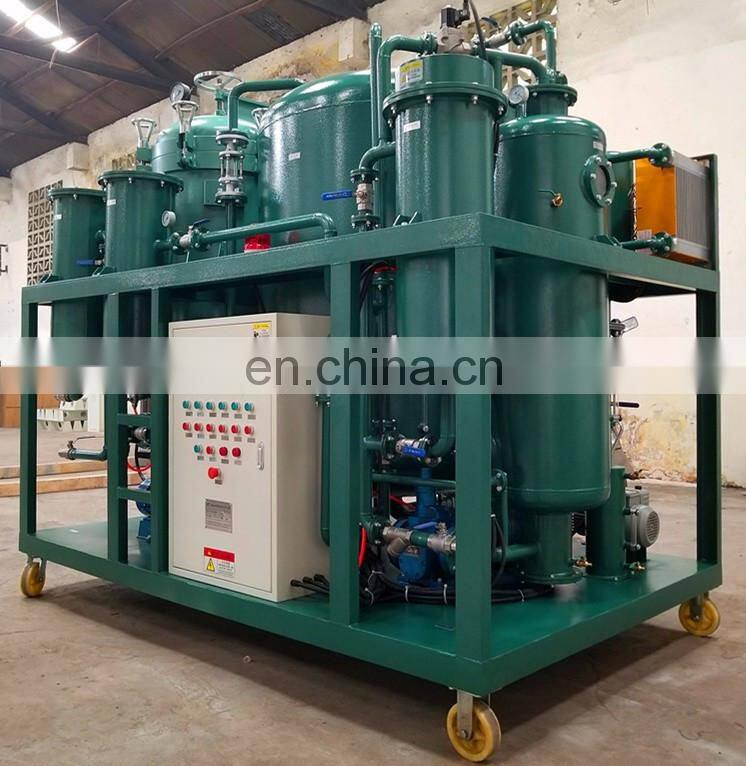

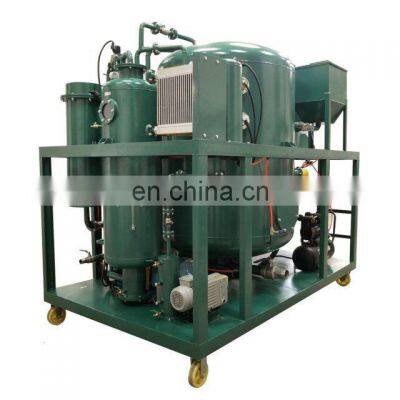

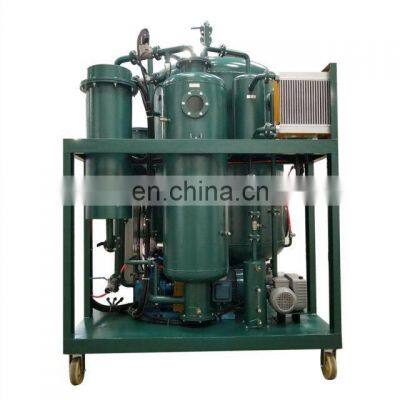

After many years of deep research, our company successfully developed TYS series waste oil decoloration vacuum oil purifier machine which can quickly separate gas, water, particulates, free carbon and volatile matters (like alcohol, gasoline, ammonia gas, etc) out from the waste oils.

TYS series can quickly remove out impurities and recover the oil color to original color. This machine uses our special additive to discolor, which is pure natural and has high efficiency. It can treat hydraulic oil, machinery oil, coolant oil, cooking oil, coconut oil in oil field, mine, metallurgy, electricity, transportation, manufacturing, food industry.

The treated oil is very clear and transparent. In the whole treatment process, it adopts purely physical treatment without breaking down the components of oils. It can also used to be equipped with waste oil distillation plant to highly improve the oil color after distillation process.

Working Principle:

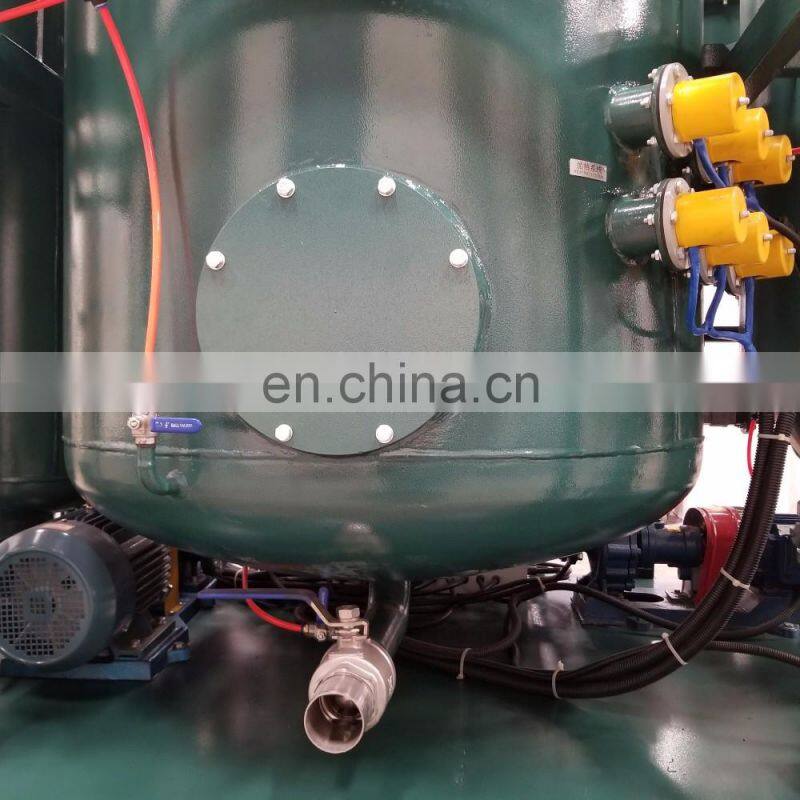

In the working process, the polluting oils enter the heater from the inlet under the action of atmospheric vacuum sucking. Then the heated oil flows into the pre-filter device to remove large grains. After that, the oil enter the vacuum separator, flowing past the special divergence apparatus which can make the oil has a huge surface area in the unit volume and let it expose in an low relative humidity environment to cleaning water, air and other gases from the oil.

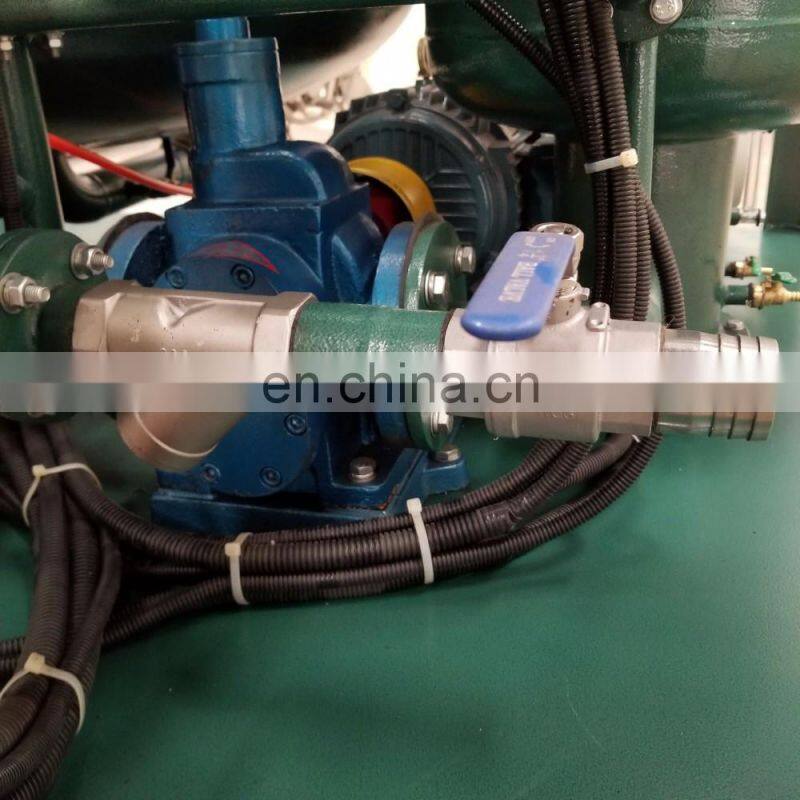

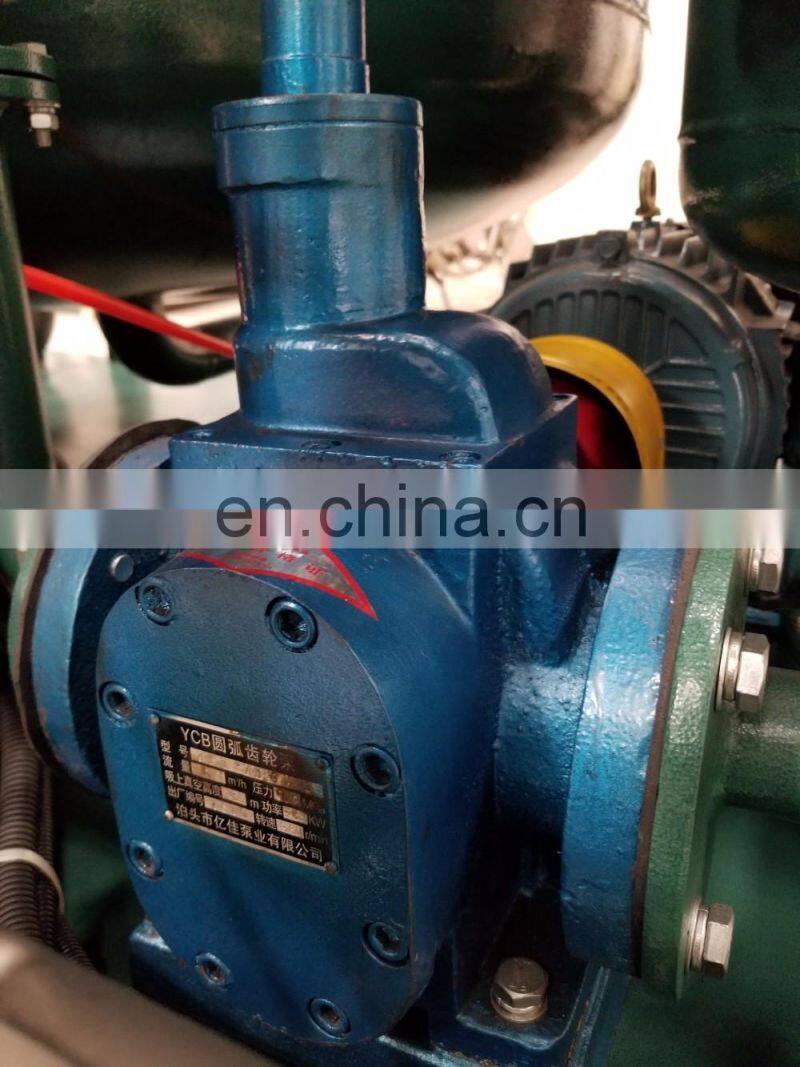

The mixed gases which consist of evaporated water and gases will turn to liquids after condensating through the water tank and cooler. Then the liquids flows into the water receiver and the rest air will be vacuum evacuated from liquids. The oil without water will be transported into the fine filter by the oil drain pump to remove suspending impurities and get the cleaning oil. A cleansing process needs several times of circulating to completely separate the water out and it depends on how much of the moisture content in the oil. The last step, the purified oil will be processed by the decoloring system and change to the new oil.

Features
1. Strong purifying ability, removing the fine particles by the fine filtration system with large area and deep level.
2.A utomatic back-flushing function: automatically cleaning and purifying a lot of impurities left after treatment.

3. Advanced dielectric absorption cooling system.
4. Pressure protection device, auto heating with temperature control, auto condensed water separating apparatus, drainage in the online operating process, easy to operate, reliable and safe.
5. High quality filter material, large dirt holding capacity, strong corrosion and heat resistance. High mechanical strength, high accuracy of purifying and long service life.
6. Unique degassing and dewatering system: stereoscopic evaporation technology, and multilevel oil water separating technology which can quickly separate water, gas and other impurities from the oils.

Chongqing TOP is a professional leading manufacturer and supplier of oil purifiers and various related testers. We consists of departments respectively for technological development, machinery manufacture, instrument manufacture, quality control etc. On basis of mature development and manufacture technology and highly qualified production management team, the products own high quality, easy operation, excellent performance and lone service life.

Customer satisfaction is our utmost priority thus, customer service team is always on the brink to help our customers with their queries at any time.

We believe in working as a unit with an attitude of complete trust and understanding and are determined to provide safe, reliable and competitively priced products to our customers.

TOP Oil Purifiers uses single or multi-stage filtration to remove, particulate, free water, and small quantities of dissolved water if necessary. The systems are usually customized to suite the specific customer application. Oil "regeneration", "reclamation", "recycling" are all terms used to describe the process of restoring used, aged, contaminated oils to "like new" reusable condition. The reclamation process removes free water, most dissolved water, dissolved gas, particulate, carbon contamination, acids, oxidation by products, most color bodies, wear metals, and most additive chemicals.

TOP Oil Testers works on the development, production, market, technical and after-sale service for petrochemical analyzers, transformer substation electrical testing equipment and circuit detecting equipment. Main products are water content testers, surface/interfacial tension testers, flash point testers, kinematic viscosity testers, oil acidity testers, insulation oil dielectric strength testers, transformer characteristics testers, relay protection testers, high voltage testing equipment etc.

Honest Team - TOP always honestly treat you and keep faith to make you satisfied with every cooperation with us.
Sincere Communication - TOP sincerely communicate with you to guarantee the provided products to be your ideal ones.
Reliable Quality -TOP own high quality and performance for every TOP product is under strict quality control and testing.
Service Commitment - TOP bring you prompt, considerate and professional aftersale service and technical support, and explore technology future together.

Certificates

Contact us today to discuss your tailor made Oil Maintenance Plan!
