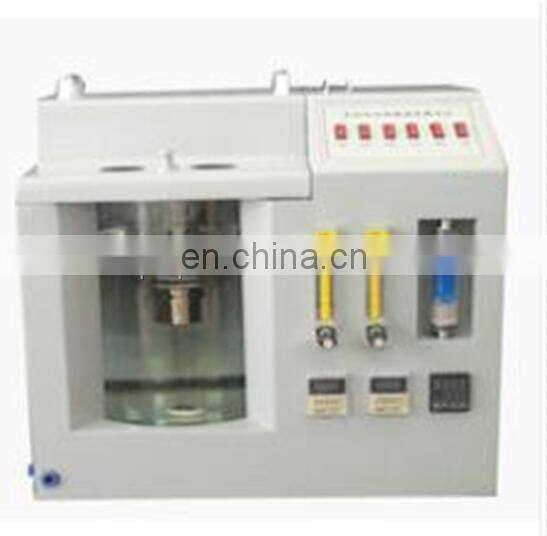

Model TP-1881 Foaming Tendency Analyzer,Petroleum Products Engine Coolant Oil Foam Tendency Tester



Introduction:

  • Petroleum Products Engine Coolant Oil Foam Tendency Tester conform to ASTM D1881 Foam Test Method and Chemical Industry Standard SH/T0066; Meet the requirements ASTM D1881 Foaming Tendency of Engine Coolants test method.







Specifications:

  • Applicable standards ASTM D1881, SH/T0066
    Digital temperature control 88±1℃
    Air flow 1000±25ml/min
    Working unit 3 holes working simultaneously
    Pressure display pressure meter
    Pressure adjustment Through flow meter
    Stirring method Electric stirring
    Heating method Electric tube heating
    Power supply AC220V ± 10%, 50Hz
    Heating power 2000W
    Measuring range Room temperature ~ 99.9 °C
    Working environment Ambient temperature: -10~ +40℃; Relative humidity:85%







Features:

  • Meet ASTM D1881 standard;
  • Adopts high temperature glass as heating bath to ensure the constant and even working temperature
  • Stainless steel skeletal, with Pyrex tank and cover, can place and fix 2pcs cylinders, no need of steel ring to avoid floating;
  • With 2pcs high accuracy flow meters, 1pc controlling box including all electric elements;
  • Can do testing at 88℃;
  • Aluminum cover with 2 holes for placing cylinders;
  • Electric heating bath, with stirring device above;
  • Stainless steel heating device;
  • Stainless steel cooling ring, when connect with cooling water it can control bath temperature at 24℃, which meet ASTM D892 requirement;
  • Adjustable and accurate flow meter with pin valve, support and exhauster connection;
  • 2pcs exhausters, original Norton(aluminum made ball type) or Mott(stainless steel made cylinder type);
  • 2pcs 1000ml with scale Pyrex cylinders, with rubber plug;
  • Micro-computer control, PID function, digital display temperature, accuracy 0.1°C, Pt100 RTD  temperature probe;

Model TP-1881 Foaming Tendency Analyzer,Petroleum Products Engine Coolant Oil Foam Tendency Tester

Model TP-1881 Foaming Tendency Analyzer,Petroleum Products Engine Coolant Oil Foam Tendency Tester
