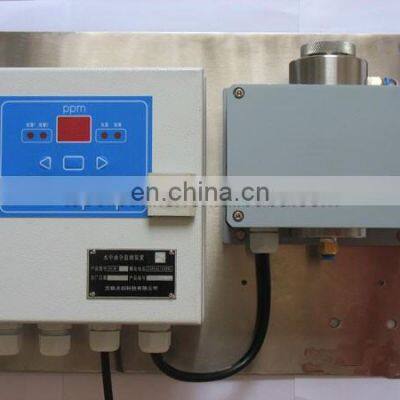

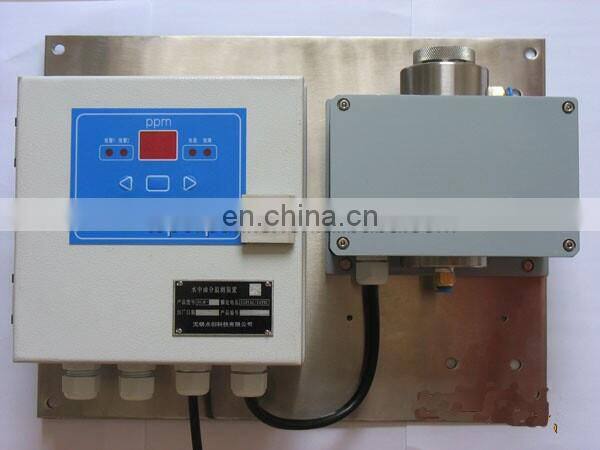

Portable Online Laboratory Measuring Instrument Oil in Water Analyzer
OCM-30 30 ppm Bilge Alarm is a new type instrument for monitoring micro-oil content in waste water.It's suitable for continuous monitoring of the oily water discharge in the bilge, with a 15 overrun alarm system and a controlling system for waste water discharge. In most case, it applied as a set device for oily water separator.
Feature
(1)Applying the most advanced multi-band infrared measuring technique and the micro-processing technology, fast response with high-accuracy-measurement;
(2)The overall use of EMI suppression design to overcome the environmental impact on equipment,and improve system stability and equipment reliability;
(3)Real-time display of oil concentration and working state of the system.
(4)Real-time recording of the alarm status and automatically store data,historical data at any time to print;
(5)Measuring room to facilitate maintenance and cleaning,simple operation;
(6)With the monitoring of operation condition,automatic control over discharge of sewage to function when equipment in failure,maintenance or replacement
(7)The 30 ppm Bilge Alarm type BilgMon 488 is approved and certified in accordance with the latest IMO resolution MEPC107(49) .
Model |
OCM-30 |
Range: |
0 – 30 mg/l can exceed to 50mg/l |
Accuracy |
Better than 2mg/l |
Linearity |
better than 2 % |
Display |
Two 14-segment LED display |
Power Supply: |
220VAC/110VAC ± 10% |
Consumption: |
5 VA |
Alarm Points: |
1-30ppm (adjustable) |
Output Signal: |
0-20mA or 4 - 20 mA, reversible Ri < 500 Ω |
Sample Water Pressure: |
0.05 -8 bar |
Sample Flow: |
approx. 0.2 - 4 l/min depend on pressure |
Ambient Temperature: |
0 to + 55° C |
Sample Water Temperature: |
+ 1 to + 80° C |
Size (over all): |
394 mm W x 280 mm H x 138 mm D |
Degree of Protection: |
IP 65 |
Weight: |
8kg |
Pipe Connections: |
R 1/4" Female |
