They are hydraulic clamping machines to pull out casing pile pipe or similar pipe. Pull out casing pile pipe or similar pipe. They may be coupled to the base pile machine by means of telescopic boom or they can work alone with its own hydraulic power pack
diaphragm wall stop-end extractor
Hydraulic equipment designed for the extraction of diaphragm wall stop-end sheet piles width 600 to 1200 mm The unit is operated by a power pack and it is composed of heavy duty base frame with two trapezoid sliding columns maneuvered by 4 hydraulic rams with 750 mm stroke. The system is complete with locking system pins to ensure the stop end sheet piles to the sliding frames and to prevent dropping of the column.
1drawing tianjin huacahng xingye technology co ltd email info@tjdrilling.com whatsapp 008618902059907

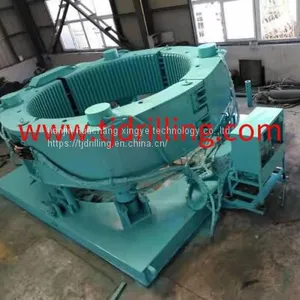

2000mm casing extractor with diesel engine power used for secant pile and pile foundation work
NAME |
UNIT |
parameter |
REMARK |
LIFT SYLINDER250/160/1000 |
PC |
4 |
|
MAX STOKE OF CYLINDER |
mm |
1000 |
|
NUMBER OF CLAMP CYLINDER 360/180/300 |
PC |
1 |
|
MAX CLAMP FORCE |
t |
220 |
|
MAX CASING SIZE |
mm |
2000 |
|
MAX LIFT FORCE |
t |
600 |
|
WEIGHT |
kg |
14000 |
|
OVER SIZE (L×W×H) |
m |
4.6×3×2.4 |
Model |
DL80 |
REMARK |
Engine model： |
QSB3.9-C100-31 |
European III emission standard |
Engine power kW |
60 |
|
Discharge l/min |
120 |
|
Working pressure ：MPa |
25 |
|
oiltank L |
500 |
|
Over size(L×W×)Hmm) |
2500×1500×1500 |
|
WEIGHT (kg) |
2000 |
