Product Description

Application:

This device tests the flash point of petroleum products, and complies to the regulated methods of ASTM D93, SH/T 0315 Closed Cup Flash Point Tester Technical Conditions and GB/T261 Petroleum Products Flash Point Test Open (Cup Method).

Features
1. Highlighted LED timely displays voltage; with heating power continuously and step-less adjustable; temperature rising precision greatly improved.
2. With temperature rising adjustment button and air cooking control button.
3. Designed totally regarding national standard; stirring high and low speed two-way regulation.
4. High precision air valve adjustment, safe and reliable.


Technical parameters

Heating device
Heating power: 600W, continuously adjustable: 0-600W
Electric stirring device
Motor and flexible axle jointing stirring; stirring vane: 840mm
Standard oil cup
Inner diameter: 50.8mm; Depth: 56mm
Ignition device
Oil test capacity groove depth: 34.2mm
Thermometer
Oil test capacity: about 70ml
Working power
Gas ignition.(or other civil use gases )
Power consumption
Internal marked mercury thermometer; complies to GB514 standard.
Detailed Images
Certificates
Packing & Delivery
Packaging:
Standrad exported wooden case



Details

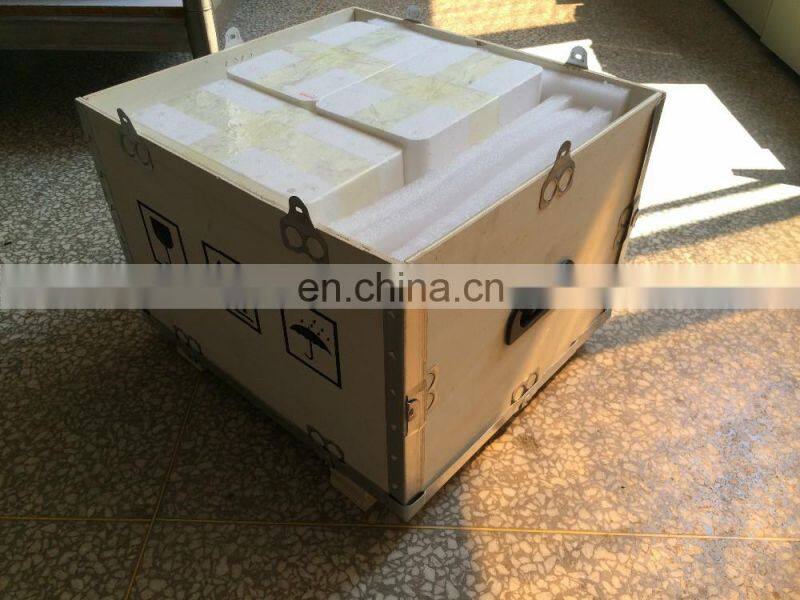

*Reinforced standard exported wooden case with cushioning insole materials, strong and durable,  suitable for long distance transportation.

*We will check every packing detail carefully to keep the product sent to you in a perfect condition.
Delivery:
Transport Mode
Air lift & Express or others
Delivery Date
Within 5~7 working days



Details
*Appointed express company (TNT, DHL, EMS...etc) could be used in shipment.

*Whole process monitoring and logistics real-time tracking ensure the goods arrive safely and timely.
