Astm D86 Automatic Distillation Range Tester Model DIL-100Z

FOB Price

Negotiable

1 (Min. Order)

Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

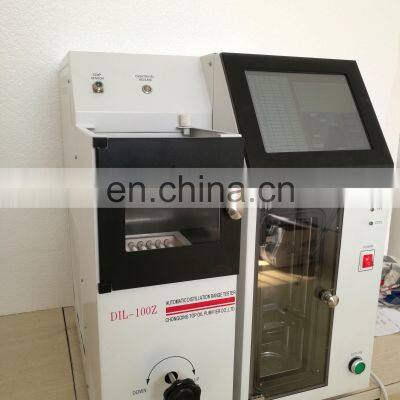

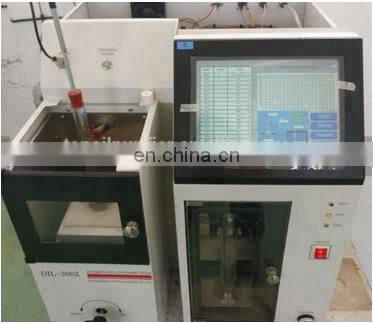

Automatic Distillation Range Tester DIL-100Z

This instrument is used for determination of distillation range of petroleum products according to the test method in GB/T 6536, complying with ASTM D86 and IP123. This instrument will automatically control the heating process and distillation speed, as well as record and print all record data.

(1) Automatically controlling of test process. 10” touch LCD for display of temperature, volume and curves during the whole process.
(2) Level tracking system consists of American Haydon high-stepping linear motor, imported integral linear ball screw
circumferential positioning laser tracker (Japan KEYENCE). The cooling tube and cylinder room are refrigerated mechanically; imported Danfoss (Secop) compressor. Circulate in the cooling medium. Check and add cooling water every 2 years.
(3) Automatically heating control of distillation over, the sample can be heated to 95% of the flow rate from initial boiling
point controlled within 4~5ml per minute.
(4) Provide initial boiling point and final boiling point temperature, and various percentage temperature and flow rate.
(5) Automatically measuring of local atmospheric pressure, and corrected to standard atmospheric pressure.
(6) Stopping of test by the steam temperature available.
(7) The test result can be stored, queried and printed.

Power	AC220V±10% 50Hz
Heating power	2KW
Cooling power	0.5KW
Steam temperature	0-400℃
Oven temperature	0-500℃
Refrigeration temperature	0-60℃
Refrigeration accuracy	±1℃
Temperature measurement accuracy	±1℃
Power consumption	<700w
Volume accuracy	±0.1ml

1.1.Fully Automatic Karl Fischer Water Content Tester TP-2100
2.Digital Karl Fischer Water Content Tester TP-6A
3.Kinematic Viscosity Tester VST-2000
4.Kinematic Viscosity Tester TPV-8
5.Kinematic Viscosity Tester VST-3000
6.Fully Automatic Oil Acidity Tester (6 cups) ACD-3000I
7.Fully Automatic Surface/Interface Tension Tester IT-800

8.Automatic Surface/Interface Tension Tester (Platinum Plate Method) IT-800P
9.Fully Automatic Open Cup Flash Point Tester TPO-3000
10.Fully Automatic Closed Cup Flash Point Tester TPC-3000
11.Digital Open Cup Flash Point Tester TPO-100
12.Digital Closed Cup Flash Point Tester TPC-100
13.Cloud Point & Pour Point Tester PT-2000

MOQ	1 Set
Trade Terms	EXW, FOB, CIF, CFR
Payment Terms	T/T, L/C
Port of Loading	Any Port of China
Packing Method	Internaional Standard Wooden Case
Transportation Method	By Sea, By Land, By Air, By Express
Supply Capability	100 Sets/Month

* The warranty period is 24 months from commissioning acceptance date on. After the warranty period is over we provide lifelong maintenance and technical service.
* We guarantee the maintenance time no more than 3 working days and response time within 1 hour.
* We build instrument service profile for our clients to record the product service and maintenance conditions.
* After instruments start service, we will pay follow-ups to collect the service conditions.

Chongqing TOP Oil Purifier Co., Ltd

Located at Chongqing city--a southwest electromechanical manufacturing center as well as national municipality, Chongqing TOP is a professional leading manufacturer and supplier of oil purifiers and various related testers. Our company consists of departments respectively for technological development, machinery manufacture, instrument manufacture and quality control etc.
