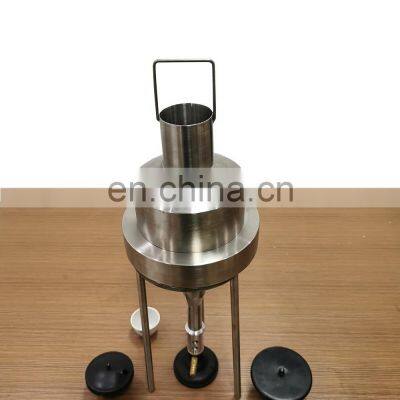

Good Appearance Portable GB / T 268 The Amount Of Carbon Residue Tester photo-2

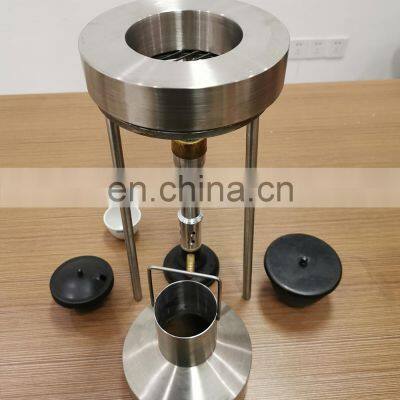

Good Appearance Portable GB / T 268 The Amount Of Carbon Residue Tester photo-3
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Association
Year Established:
1994
Annual Export Value:
US$5 Million - US$10 Million
Contact Supplier Request Quote Chat Now
Chongqing Top Oil Purifier Co., Ltd
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us

TP-268 Carbon Residue Tester（Conradson Method）

The instrument is designed and made as per national standard of People’s Republic of China GB/T268 Standard Test Method for Carbon Residue of Petroleum Products by Conradson Method. It is used to determine the amount of carbon residue of petroleum products after evaporation and pyrolysis, so as to check coke forming property of petroleum products.It can also meet requirements of ASTM D189 Standard Test Method for Conradson Carbon Residue of Petroleum Products.
It has simple design and will come with complete accessories. The test can be done as loon as equip civil gas.
1. Porcelain crucible：
About 30ml.
2. Inner iron crucible：
About (75±5)ml.
3. Outer iron crucible：
About(190±10)ml with cover.
4. Supporter：
Height: (250±10)mm
Bore diameter: Ф(130±5)mm
5. Flame shield：
Diameter of upper port:Ф(90±2)mm
Diameter of lower port:Ф(82±2)mm
6. Round iron cover：
The height of underpart is (50～53)mm.
The height of cone in the middle is (25±2)mm.
There is a piece of iron wire as the fire bridge on the top.
The height is (50±3)mm.It is regarded as the indicator of max height.
7. Blowtorch：
It adopts gas torch .
8. Dimension：
Ф130mm×400mm
