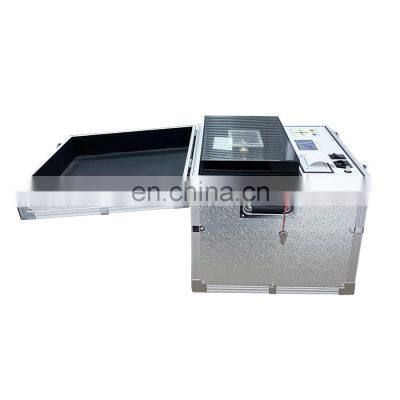

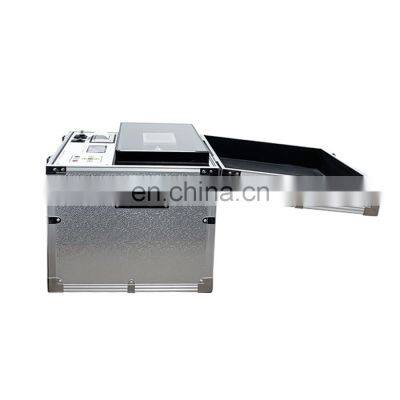

Insulating Oil BDV Tester 100kv Oil Breakdown Voltage Testing Machine

FOB Price

Negotiable

1 (Min. Order)

Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

Products Description

Fully Automatic Transformer Oil Dielectric Strength BDV Tester

Power supply	AC220V±10%, 50Hz/60Hz
Output voltage	60kV/80kV/100 kV
Capacity	2.0 kVA
Speed of voltage increase	about 2 k V/ s
Voltage inspection accuracy	1 %
Breakdown sensitivity	< 0.1 kV
Waveform distortion	≤ 1 %
Breakdown response time	≤ 10 ms
Polar distance	2.5 mm
Operating environment	Temperature: 0 ℃ -40 ℃
	Humidity: Max. relative humidity 85%
Storage environment	Temperature: - 20 ℃ - 60 ℃
	Humidity: Max. relative humidity 75%
Dimension	380mm380mm380mm
Weight	32kg(N.W.)

IIJ-II series fully automatic oil tester is apply to test the insulating oil's dielectric strength, which is designed as per the requirement of IEC165 Testing Method of Insulation Oil Medium Strength, which via proper programming, has got functions of auto boosting, step down, stirring, display and print out. After breakdown of oil medium, HV break off will operate within 10 seconds to enable an auto isolation of control system partly; this effectively safeguards the personnel security and equipment safety.Features:The automatic oil tester adopt industrial SCM to control which is applied to integrate circuit, new model I/0 connection , particular testing and anti-jamming technology which is largely improved the machine's capacity .

● Easy operation,high automation. (only press button once and all work done automatically) ● Menu management, data input simple and convenient. ● Store 99 data of oil sampling tests for review and print. The test data can be saved even the power is off. ● The clock is still on after power off. (The internal time of the system just for test reference, not for standard time) ● Strong anti-interference, high precision testing. ● Small measurement, light weight, convenient for outdoor operation. ● The software can be upgraded through RS232 terminal.

1.1.Fully Automatic Karl Fischer Water Content Tester TP-2100
2.Digital Karl Fischer Water Content Tester TP-6A
3.Kinematic Viscosity Tester VST-2000
4.Kinematic Viscosity Tester TPV-8
5.Kinematic Viscosity Tester VST-3000
6.Fully Automatic Oil Acidity Tester (6 cups) ACD-3000I
7.Fully Automatic Surface/Interface Tension Tester IT-800

8.Automatic Surface/Interface Tension Tester (Platinum Plate Method) IT-800P
9.Fully Automatic Open Cup Flash Point Tester TPO-3000
10.Fully Automatic Closed Cup Flash Point Tester TPC-3000
11.Digital Open Cup Flash Point Tester TPO-100
12.Digital Closed Cup Flash Point Tester TPC-100
13.Cloud Point & Pour Point Tester PT-2000

MOQ	1 Set
Trade Terms	EXW, FOB, CIF, CFR
Payment Terms	T/T, L/C
Port of Loading	Any Port of China
Packing Method	Internaional Standard Wooden Case
Transportation Method	By Sea, By Land, By Air, By Express
Supply Capability	100 Sets/Month

* The warranty period is 24 months from commissioning acceptance date on. After the warranty period is over we provide lifelong maintenance and technical service.
* We guarantee the maintenance time no more than 3 working days and response time within 1 hour.
* We build instrument service profile for our clients to record the product service and maintenance conditions.
* After instruments start service, we will pay follow-ups to collect the service conditions.
