2021 New Year Promotion Movable Trailer Enclosed Transformer Oil Purifier ZYD-M-50
Applications

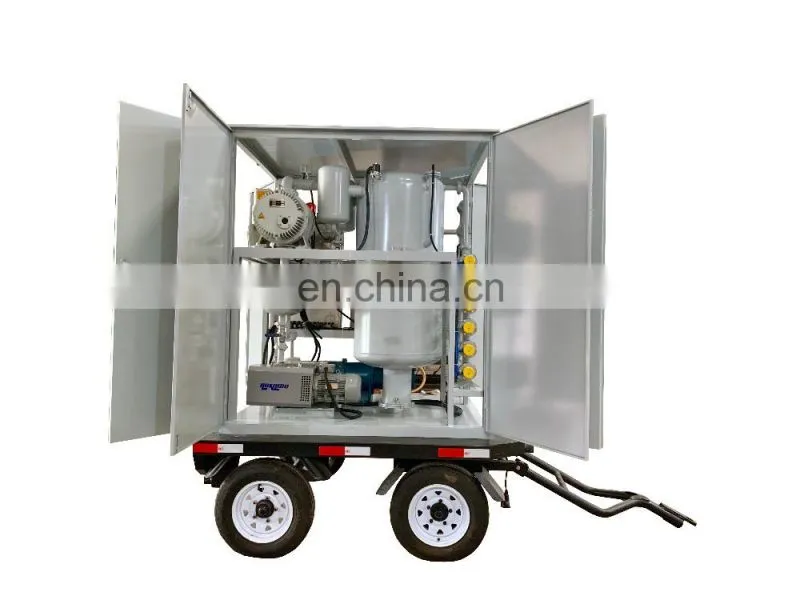

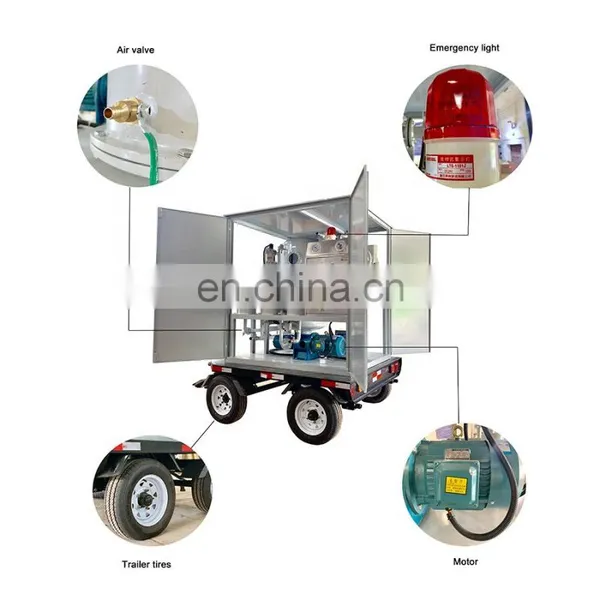

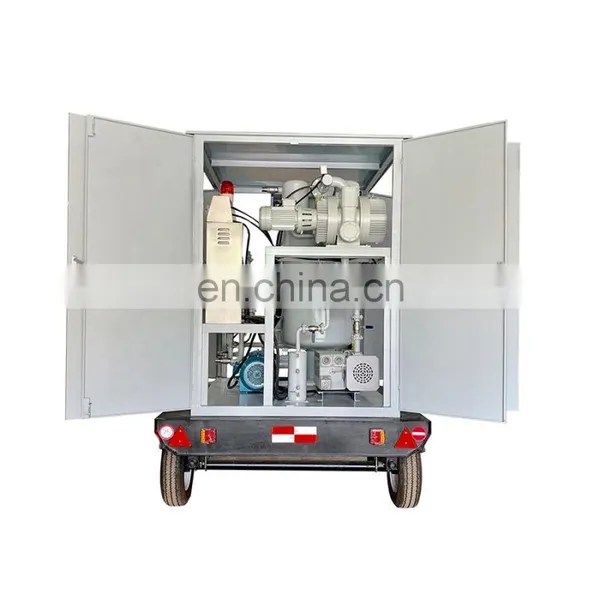

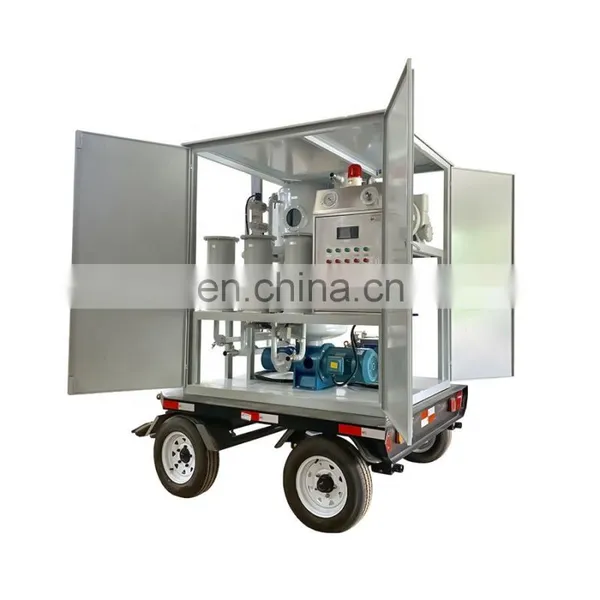

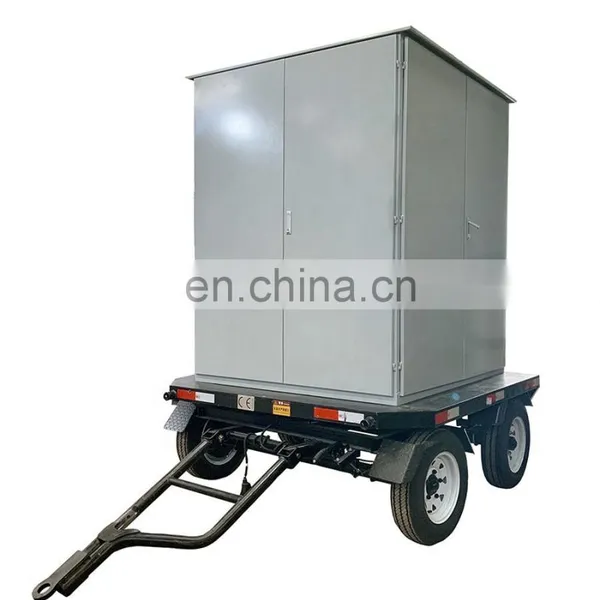

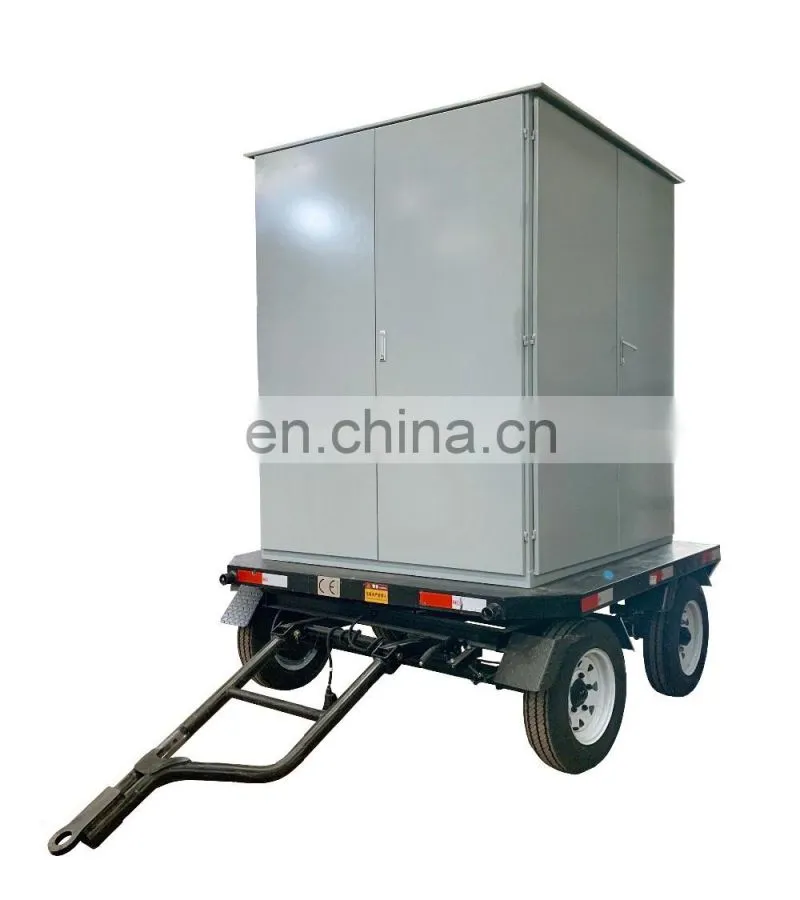

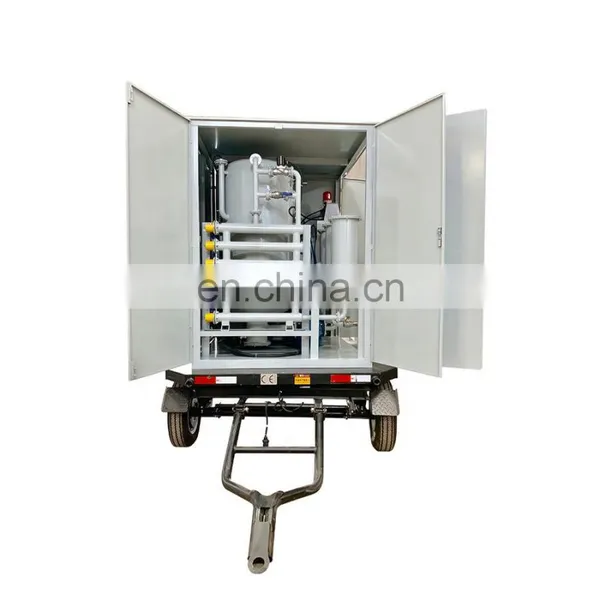

ZYD-M-50 Factory Price Movable Trailer Enclosed Insulation Oil Purifier is equipped with a movable trailer and has been specially designed for on site use to completely regenerate insulating oils in energized or de-energized transformers. The ZYD-I system provides regular oil purification such as degassing, drying and particulate removal but also can remove acidity, sludge, other soluble oil decay products and discoloration.
Advantages:
Comparing with the single stage vacuum oil purifier, this machine can dewater, degas and removes the impurities more quickly, more completely, and makes the oil BDV (Breakdown Voltage) of 75 KV or higher. As the bridge-type vacuum linking system that can purify and also can be an independent vacuum power supply, this machine can treat the electric insulation devices.
Working Principle:
The insulating oil is conveyed into the degassing tank by means of pressure difference. Oil is indirectly heated by the heater, thus avoiding hot spots and over-swinging of the pre-selected operating temperature. The special degassing system and geometry with several stages in degassing tank creates a large oil surface and a resulting thin film for most effective maximum degassing.
The treatment with a lower end vacuum (-0.08 to -0.095 MPa) guarantees, among others, that no light fractions are evaporated in the insulating oil, whereby the required characteristics of the oil are not changed.

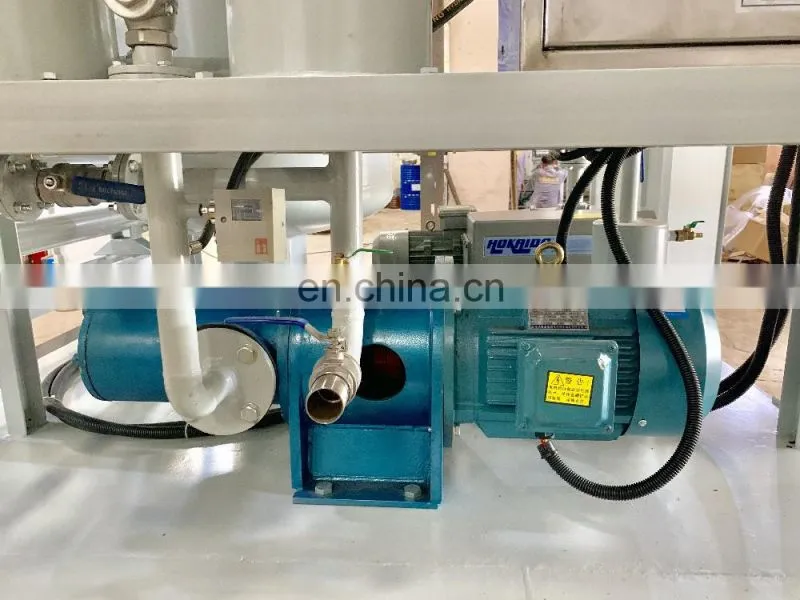

The oil level regulation in the degassing tank assures a continuous oil flow-through in the plant, thus resulting in an optimized degassing of the oil.After degassing and dehydration under vacuum, the oil is conveyed by means of a specially sealed and frequency controlled pump into regeneration system. Then oil through the fine filter and out of the plant.
Technical Parameter for ZYD-M Series |
||||||||||||||||
Item |
Unit |
ZYD-M-30 |
ZYD-M-50 |
ZYD-M-100 |
ZYD-M-150 |
ZYD-M-200 |
ZYD-M-250 |
ZYD-M-300 |
||||||||
Flow rate |
L/h |
1800 |
3000 |
6000 |
9000 |
12000 |
15000 |
18000 |
||||||||
Working vacuum |
MPa |
-0.08~-0.099 |
||||||||||||||
Working pressure |
MPa |
≤0.3 |
||||||||||||||
Temperature range |
°C |
20 ~ 80 |
||||||||||||||
Power |
3 ph 380V 60Hz (Or as needed) |
|||||||||||||||
Working noise |
dB(A) |
75 |
75 |
75 |
75 |
80 |
80 |
80 |
||||||||
Heating power |
kW |
30 |
30 |
45 |
60 |
75 |
90 |
120 |
||||||||
Total power |
kW |
35.5 |
37.5 |
52.5 |
71.4 |
86.5 |
102.5 |
135 |
||||||||
Oil Inlet/Outlet |
mm |
φ25 |
φ32 |
φ42 |
φ50 |
φ50 |
φ60 |
φ60 |
||||||||
Weight |
Kg |
600 |
800 |
1050 |
1400 |
1800 |
2000 |
2200 |
||||||||
mm |
1050 |
1100 |
1200 |
1450 |
1600 |
1800 |
1900 |
|||||||||
Overall |
mm |
750 |
800 |
950 |
950 |
1100 |
1200 |
1200 |
||||||||
mm |
1350 |
1400 |
1500 |
1650 |
1800 |
1900 |
1900 |
|||||||||

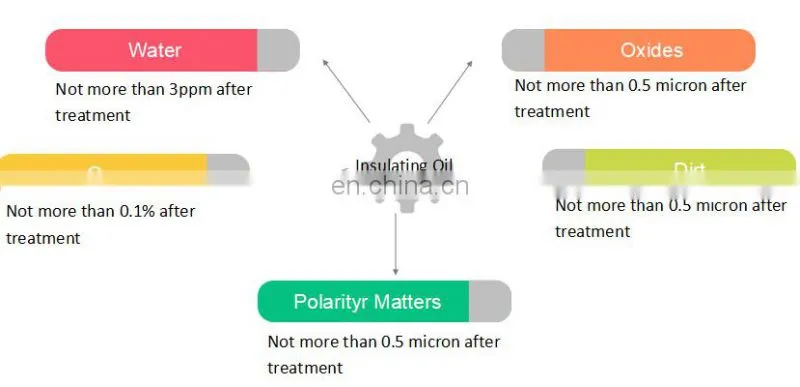

Guarantee Value:
Item |
Unit |
After treatment |
Breakdown Voltage |
kV |
≥75 |
Moisture content |
PPM |
≤3 |
Gas content |
% |
≤0.1 |
Impurity size |
micron |
≤0.5 (no free carbon) |
IFT |
dynes/cm |
≥40 |
Acid value |
mg KOH/g |
≤ 0.03 |
Dielectric loss factors |
tgδ(90°C) |
≤0.001 |
Colour |
L |
≤0.5 |
Chongqing TOP Oil Purifier Manufacture Co., Ltd is a professional leading manufacturer of oil purifiers and oil testers. We takes the mission of existing on the basis of excellent quality as well as developing technical innovation,and introduces advanced technology.
TOP Oil Purifiers are widespread in the fields of electric power, petrifaction, mineral, shipbuilding, steel construction, bridge, automobile and railway, playing a great role in reducing energy consumption for clients as well as environmental pollution. We provides you with reliable oil purifiers such as transformer oil purifier, turbine oil purification machine, hydraulic oil purifier, lubricating oil filtration machine, fuel oil restoration, oil and water separator, oil regeneration equipment, waste oil recycling equipment etc.
TOP Testers works on the development, production, market, technical and after-sale service for petrochemical analyzers, transformer substation electrical testing equipment and circuit detecting equipment. Main products are water content testers, surface/interfacial tension testers, flash point testers, kinematic viscosity testers, oil acidity testers, insulation oil dielectric strength testers, transformer characteristics testers, relay protection testers, high voltage testing equipment etc.
Cooking Oil Purifier
Transformer Oil Purifier
Turbine OIl Purifier
Lube Oil Purifier
1.ZY series vacuum transformer oil purifier
2.ZYA series vacuum automatic transformer oil purifier
3.ZYB series vacuum transformer oil regeneration purifier
4.ZYD series double-stage vacuum transformer oil purifier
5.ZYD-I series ouble-stage transformer oil regeneration purifier
6.ZYD-M series trailer-mounted transformer oil purifier
7.TYA series vacuum lubricating oil purifier
8.TYB series coalescence-separation oil purifier
9.TYC series vacuum lubricating oil regeneration purifier
10.CYA series centrifugal oil purifier
11.TPR series waste engine oil recycling system
12.PL series plate and frame oil filter press
13.JL series portable oil purifier
14.BZ series transformer oil regeneration device
Pre-sale Service
①Will give response within 24 hours for all inquiries and questions about our products.
②Recommend the most suitable machine according customer's demands.
③Professional pre-sale model/configuration selection advise and technical support -- offered by experienced technician.
④ Free on-site installation, debugging and technical training -- offered by strictly trained technology application engineers.
⑤Offer OEM service.
After-sale Service
① The warranty period is 24 months from commissioning acceptance date on. After the warranty period is over we provide lifelong maintenance and technical service.
②We guarantee the maintenance time no more than 3 working days and response time within 1 hour.
③We build instrument service profile for our clients to record the product service and maintenance conditions.
④ After instruments start service, we will pay follow-ups to collect the service conditions.
①Standard export wooden case with high quality cushioning material ensure the item arrive customer in good condition.
②Carefully check every packing detail before delivery to avoid any troubles during the transportation.
③Appointed logistics company could be used according to customers demands.
④ Do our best to make sure customer can get their goods in time.
