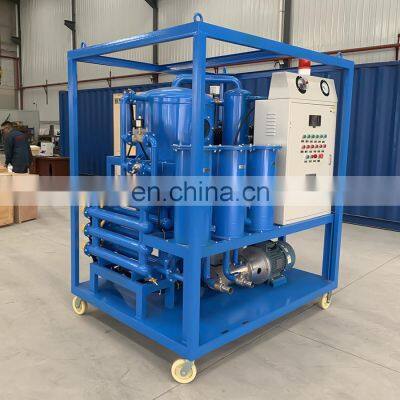

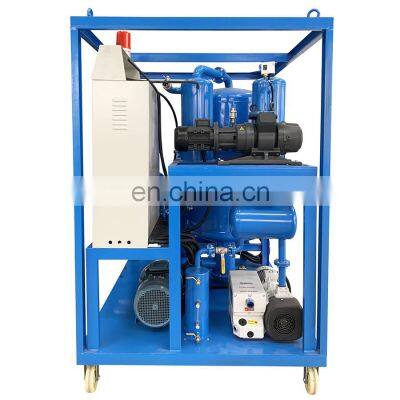

ZYD High Efficiency Double Stage Vacuum Switch Transformer Oil Purification Machine

FOB Price

Negotiable

1 (Min. Order)

Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

Series ZYD Transformer Oil System

Item			Unit	ZYD-30	ZYD-50	ZYD-100	ZYD-150	ZYD-200	ZYD-250	ZYD-300
Flow rate			L/h	1800	3000	6000	9000	12000	15000	18000
Working vacuum			MPa	-0.08~-0.099
Vacuum pressure			MPa	≤0.3
Temperature range			℃	20~80
Power				3ph 380V 60Hz(or as need)
Working noise			dB(A)	75	75	75	75	80	80	80
Heating power			kW	30	30	45	60	75	90	120
Total power			kW	35.5	37.5	52.5	71.4	86.5	102.5	135
Oil Inlet/Outlet			mm	φ25	φ32	φ42	φ50	φ50	φ60	φ60
Weight			Kg	600	800	1050	1400	1800	2000	2200
Overall	Length	mm	1050	1100	1200	1450	1600	1800	1900
		Width	mm	750	800	950	950	1100	1200	1200
		Height	mm	1350	1400	1500	1650	1800	1900	1900
Breakdown Voltage			kV	≥75
Moisture content			PPM	≤3
Gas content			%	≤0.1
Impurity size			micron	≤1 (no free carbon)
IFT			dynes/cm	≥40
Acid value			mg KOH/g	≤ 0.03
Dielectric loss factors			tgδ(90℃)	≤0.001

Details Image

Related Products

1.ZY series vacuum transformer oil purifier
2.ZYA series vacuum automatic transformer oil purifier
3.ZYB series vacuum transformer oil regeneration purifier
4.ZYD series double-stage vacuum transformer oil purifier
5.ZYD-I series ouble-stage transformer oil regeneration purifier
6.ZYD-M series trailer-mounted transformer oil purifier
7.TY series vacuum turbine oil purifier

8.TYA series vacuum lubricating oil purifier
9.TYB series coalescence-separation oil purifier
10.TYC series vacuum lubricating oil regeneration purifier
11.CYA series centrifugal oil purifier
12.TPR series waste engine oil recycling system
13.PL series plate and frame oil filter press
14.JL series portable oil purifier
15.BZ series transformer oil regeneration device

Packing & Delivery

MOQ	1 Set
Trade Terms	EXW, FOB, CIF, CFR
Payment Terms	T/T, L/C
Port of Loading	Any Port of China
Packing Method	Internaional Standard Wooden Case
Transportation Method	By Sea, By Land, By Air, By Express
Supply Capability	100 Sets/Month

* The warranty period is 24 months from commissioning acceptance date on. After the warranty period is over we provide lifelong maintenance and technical service.
* We guarantee the maintenance time no more than 3 working days and response time within 1 hour.
* We build instrument service profile for our clients to record the product service and maintenance conditions.
* After instruments start service, we will pay follow-ups to collect the service conditions.

Chongqing TOP Oil Purifier Co., Ltd

Located at Chongqing city--a southwest electromechanical manufacturing center as well as national municipality, Chongqing TOP is a professional leading manufacturer and supplier of oil purifiers and various related testers. Our company consists of departments respectively for technological development, machinery manufacture, instrument manufacture and quality control etc.

You are much welcome to contact me online or send offline message at now.

CHONGQING TOP OIL PURIFIER CO.,LTD Address: No. 1, Jianlong N. Rd., Jiulongpo District, Chongqing, China Email: sales3@topoilpurifier.com;topoilpurifier02@gmail.com Skype:topoilpurifier01 Mobile: 0086-13038306308 （WhatsApp） WeChat:saas-area Tel/Fax: 0086-23-88901306 ;
