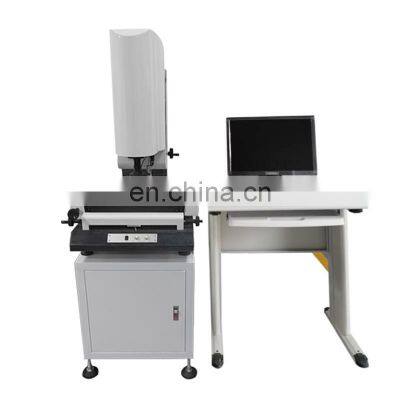

CNC 2D 3D Optical Coordinate Image Measuring Instrument Video Measuring System Plastic Auto Parts
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Agent
Year Established:
2001
Annual Export Value:
US$1.5 Million - US$2.5 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Contact Angle Contact Angle Measurement Contact Angle MeterNegotiableMOQ: 1 -
Scan Laser Cmm Machine Cnc Coordinate Measuring 3dNegotiableMOQ: 1
-
Automatic Water Drop Vtilt Angle Contact Angle Measurement Meter Goniometer InstrumentNegotiableMOQ: 1
-
Low Cost 3D Optical Vision Coordinate Laser Measuring CMM Machine 6 Axis With ProbeNegotiableMOQ: 1
-
Low Cost 3D Optical Vision Coordinate Laser Measuring CMM Machine 6 Axis With ProbeNegotiableMOQ: 1
Product Overview
Optical Coordinate Measuring Machine is applicable to two coordinates measuring for the purpose of all fields of application, machinery, electronics, instruments, plastic etc widely used
Instrument characteristics
All three axes are driven by Taiwan's high-precision V-shaped guide rail and precision toothless screw, with low noise and low vibration, and the smallest dynamic geometric error and deformation;
It adopts high-quality granite and marble base and column, which has good temperature stability and anti-effective deformation ability.
The granite and marble workbench is adopted, with small inertia, ensuring the positioning accuracy and steady-state performance of high-speed operation.
The finite element structure analysis and optimized structure design ensure the high precision and high stability of the whole system for this series.
The KMN integrated control box adopts British technology to realize the synchronous control and adjustment of the lighting computer.
PRODUCT SPECIFICATIONS
Model |
2010 |
3020 |
4030 |
||
XYZ Measuring stroke |
200*100*200 |
300*200*200 |
400*300*200 |
||
Working distance |
90mm |
||||
Dimensions |
1280*661*1700 |
1321*800*1700 |
1400*1000*1700 |
||
Maximum load |
30Kg |
||||
Instrument weight |
90Kg |
150Kg |
250Kg |
||
power supply |
220V+10%, 50HZ-60HZ |
||||
Indication error |
(3.0＋L/200) μm |
||||
Industrial computer |
Dual-core 2.8/Memory 2G/HDD 320G/19"LCD color display |
||||
Touch probe |
Contact probe (optional) |
||||
Imaging system |
Wuguang high-definition continuous zoom lens/magnification ratio 0.7-4.5X Optional: 0.5X objective lens, magnification 15-115X Optional: 2X objective lens, magnification 60-460X |
||||
Light source system |
LED ring surface light source + contour LED cold light source |
||||

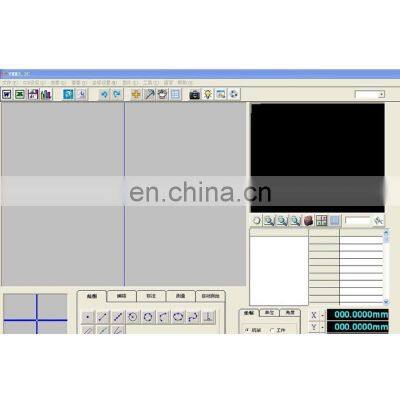

Software function
1. Coordinate translation and coordinate correction make measurement more convenient and quicker and improve measurement efficiency;
2. Convenient and quick element combination function, users can combine points, lines, circles, distances and angles by simply clicking on the graphics;
3. The measurement data is sent directly to AutoCAD, and the measured graphics can be saved in dxf files;
4. The measurement data can be sent to Excel for statistical analysis. ☆Chinese, English and traditional language interface switching;
5. Cross-line edge search, edge discoloration, manual point picking;
6. Multiple edge seeking modes, the computer automatically picks up points, and automatically recognizes circles and arcs, greatly improving the speed of picking points;
7. Graphics zoom in, graphics zoom out, graphics translation, graphics printing graphics selected, unselected, graphics deleted;
8. Set the grayscale, saturation and contrast of the image, and save the image in BMP format;
9. Two-dimensional image calibration to achieve precise measurement of size; including line, circle, angle, rectangle, polygon and other measurement tools, real-time measurement of distance, diameter, angle, area, circumference and other parameters;
10. Element measurement: multi-point measurement of points, lines, circles, arcs, ellipses, a specified number of points to measure rectangles, automatic identification of points, lines, circles, and arcs;
11. Element structure: center point structure, intersection structure, midpoint structure, line structure, circle structure, angle structure;
12. Element presets: point, line, circle, arc;
13. Automatic edge finding function, image sharpening, eliminating the influence of object edge burrs, and improving detection accuracy and repeatability. Ring measurement, angle measurement, line width, line distance, etc. measurement.
PRODUCT CONFIGURATION
CHANGCHAI high power engine
Detail 2
Detail 3
About our company
Hongjin Testing Instrument Company is a professional manufacturer of various testing equipment for more than 14 years. Hongjin instruments are widely used in paper products, color printing packaging, ink printing, tape, bags, shoes, leather products, environment, toys, baby products, food, hardware, electronic cables, plastic products, rubber products, household appliances, and other industries , And apply to all scientific research units, quality inspection institutions and universities.
