300mm Fall Height Pneumatic Directional Drop Tester For Mobile Phone
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
Mobile Phone IPAD Directional Drop Test Machine PC Mobile Phone Directional Drop Tester
-
PC Mobile Phone Directional Drop Tester With Touch Screen
-
PC Mobile Phone Electronics Directional Drop Impact Testing Machine
-
China Factory PC Electronics Mobile Phone Directional Drop Tester
-
Astm D256 Two Arm Luggage Falling Dart Impact Tester Drop Tower Testing Machine Parts
-
Single Wing Carton Chair Cement Packaging Bag Drop Weight Impact Testing Machine Suppliers
Product Description
Product Overview
Introduction:
This equipment is designed to evaluate the impact of the product on the performance of the product after the product has been accidentally dropped. When applied to mobile phone, PDA, telephone, electronic dictionary, adapter, battery and other small consumer electronics for the original posture and acceleration drop test.
FEATURES AT A GLANCE
1. The frame is made of aluminum profile + thick transparent acrylic, beautiful appearance and firm structure;
2. The lifting mechanism is guided by linear slide rails, and the synchronous belt drives the lifting, and the test height can be set arbitrarily;
3. Realize product multi-angle test;

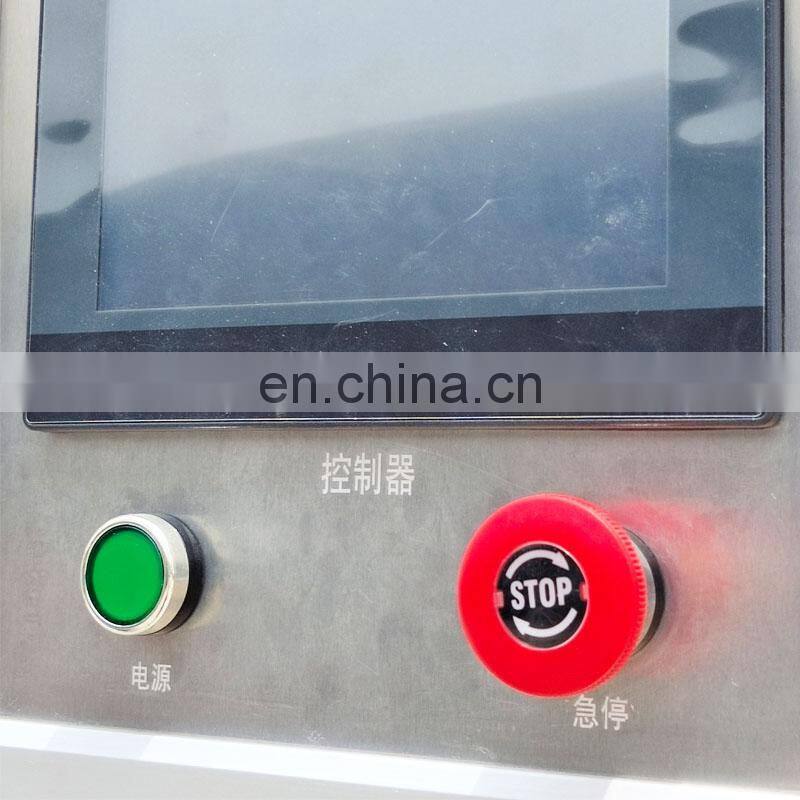

4. Using touch screen + PLC control, can display the test height and the number of drops and other data.
5. Equipment with safety device: safety light curtain (the equipment will automatically stop when the hand reaches into the test area)

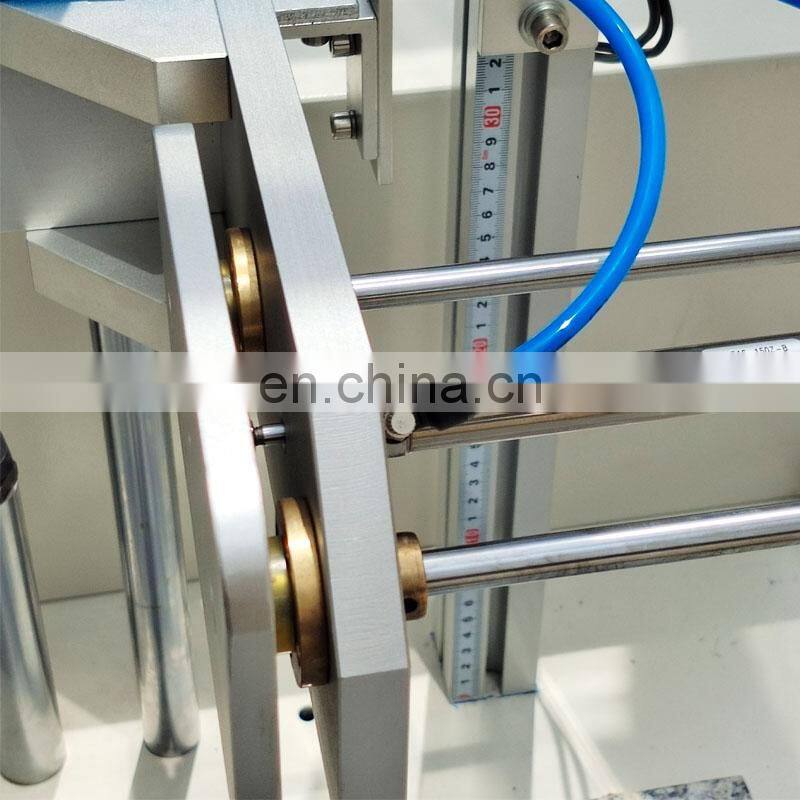

Detail 1

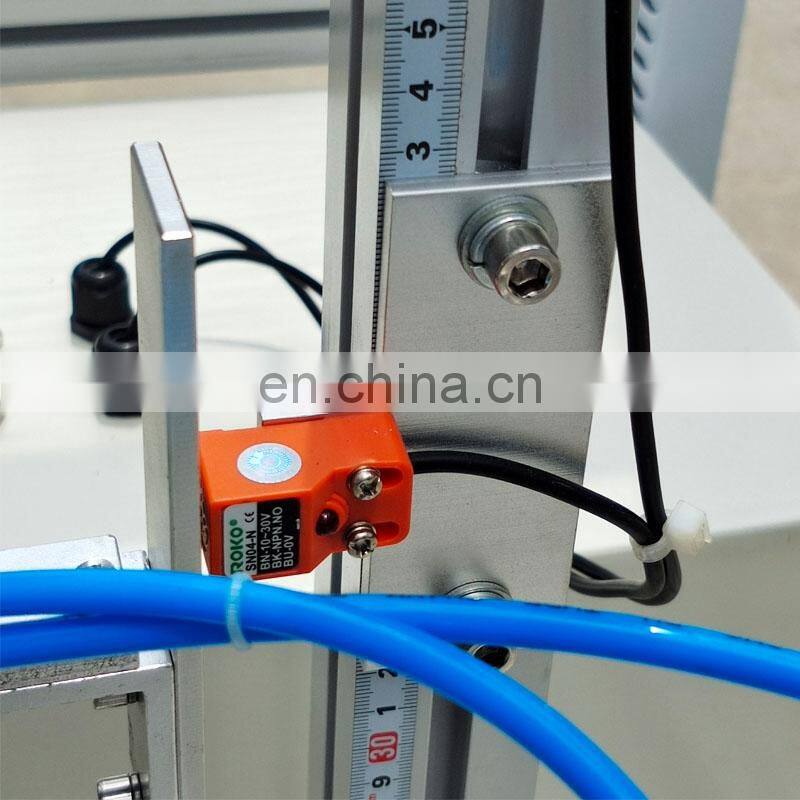

Detail 2
Detail 3
PRODUCT SPECIFICATIONS
Air pressure | 0.2～0.6Mpa |
Dimensions | 800*1000*2200mm (L/W/H) (with protective door) |
Machine weight | 150kg |
Power | 1000W |
Power supply | AC 220V 50Hz |
Operation mode | touch screen to set related data (height, real-time acceleration>9.2m/s²) |
Drive mode and drop angle | brake stepper motor drive, all-round drop. |
Drop height range | 300—1500mm, (settable) displacement accuracy is +0.5mm |
Falling method | orientation + Freedom can be switched at will. 5. Fixture adjustment: adjustable angles are 0°, 45°, 90° |

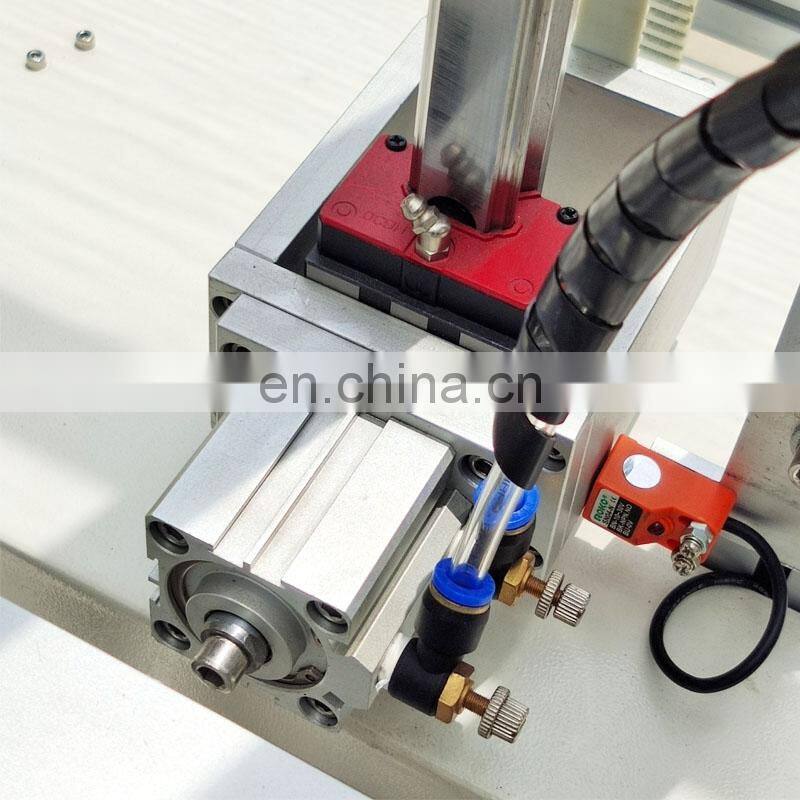

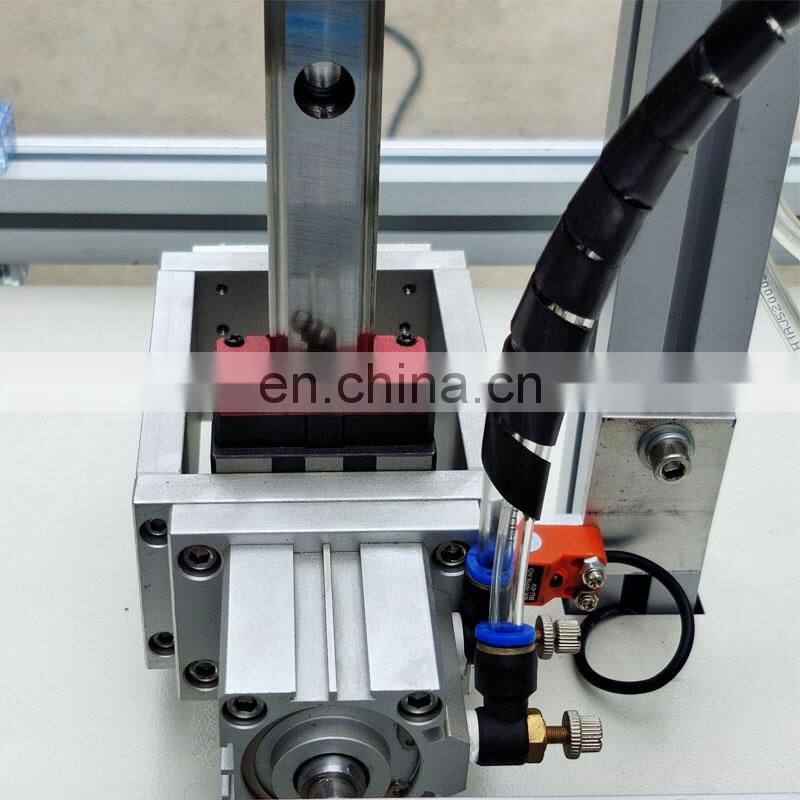

Clamping method | cylinder to clamp |
Clamping range | clamping range 0~180mm |

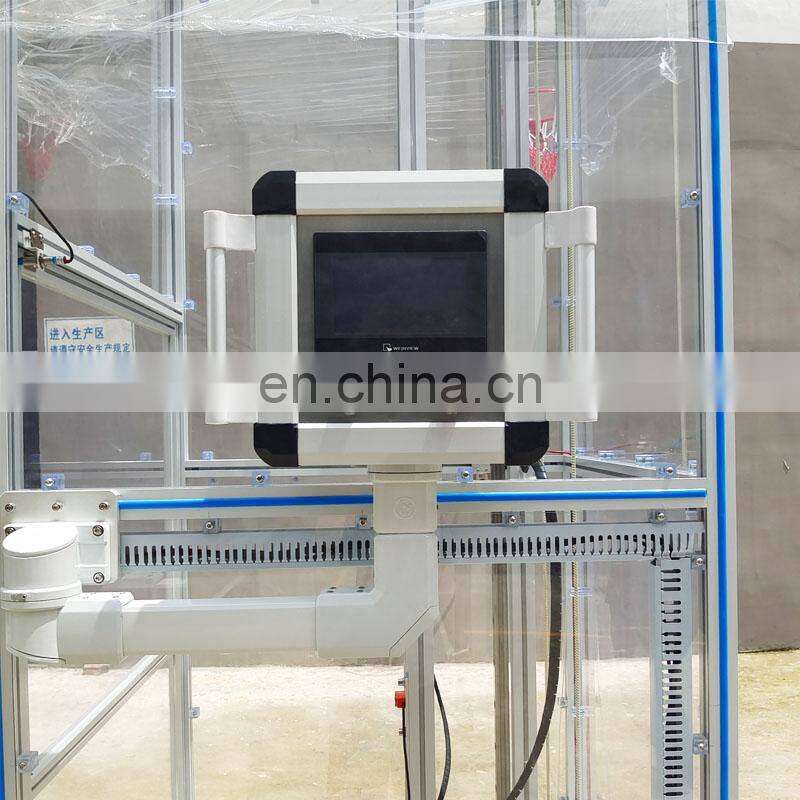

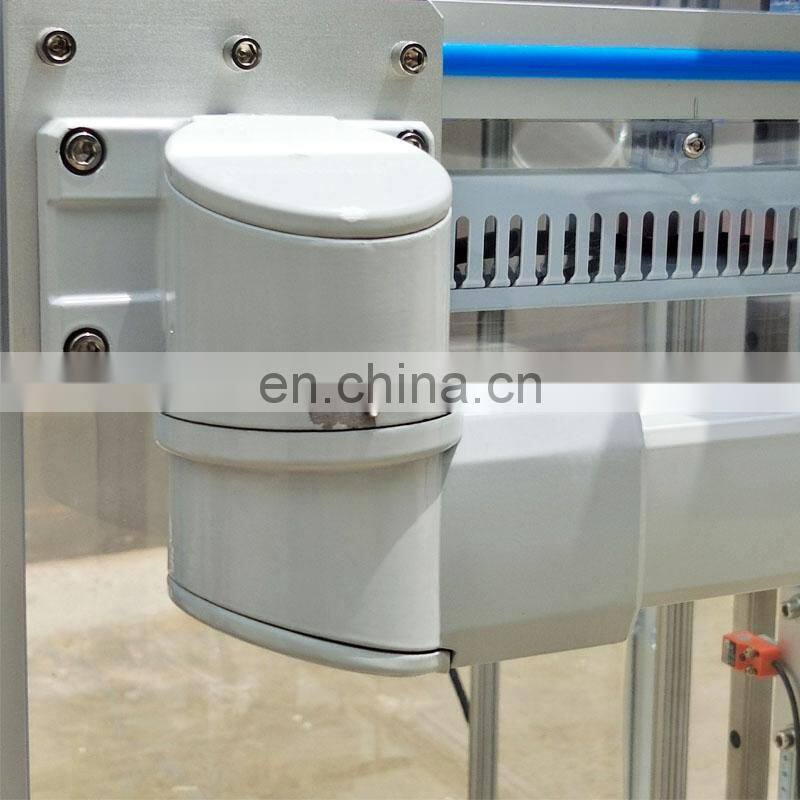

Controller | the controller can be rotated 360° |
Falling contact surface | marble board, steel plate, wood board |
Test data | drop height |
Falling method | repeated falling |
PRODUCT CONFIGURATION
1
2
3
Successful Project
SIMILAR PRODUCTS

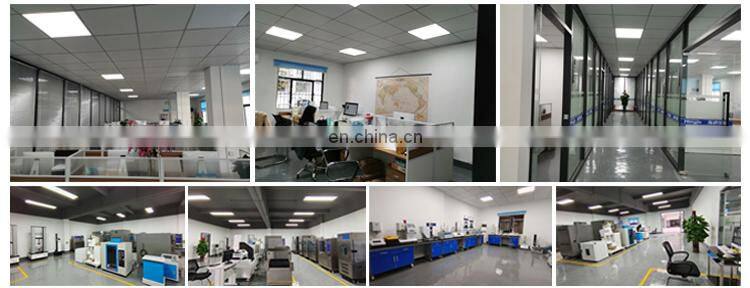

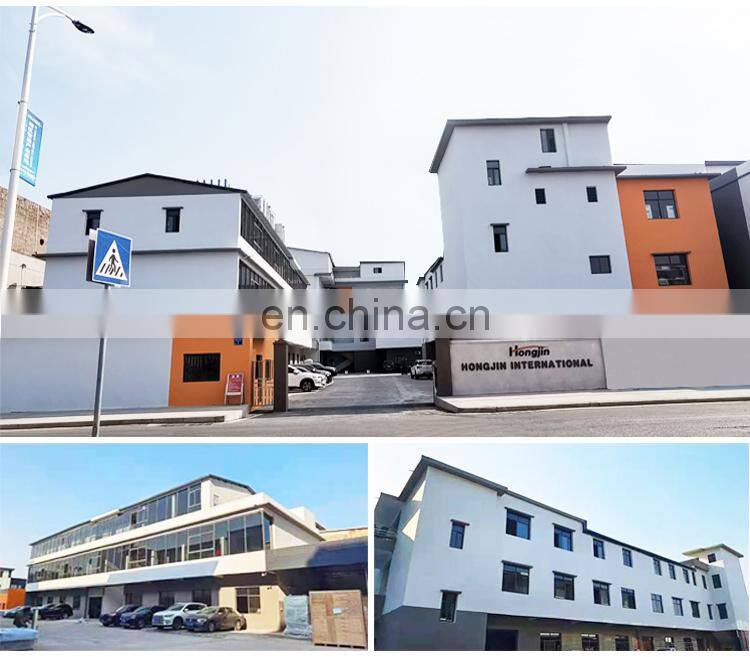

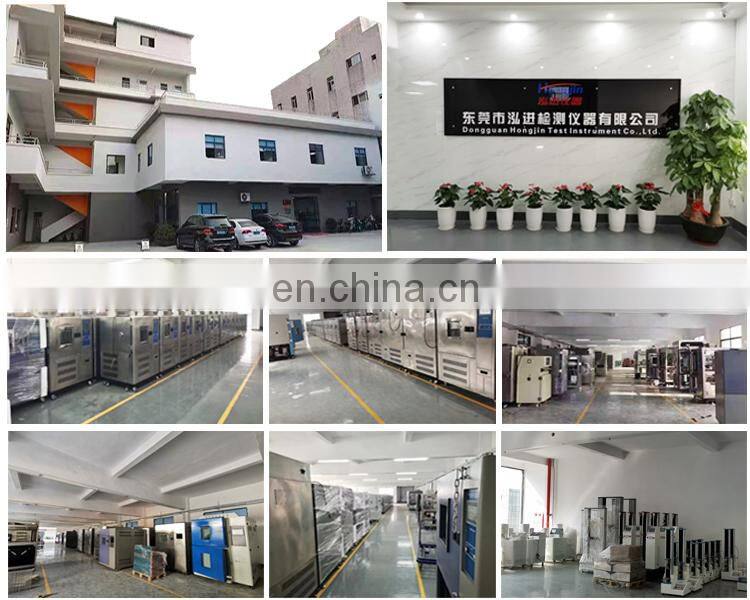

Company Profile
