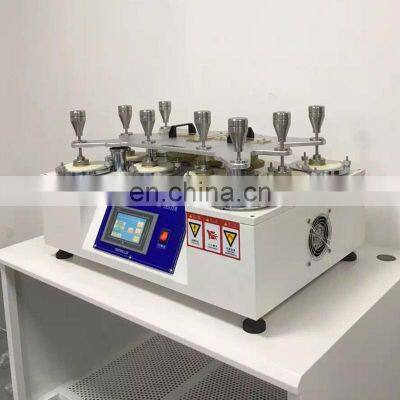

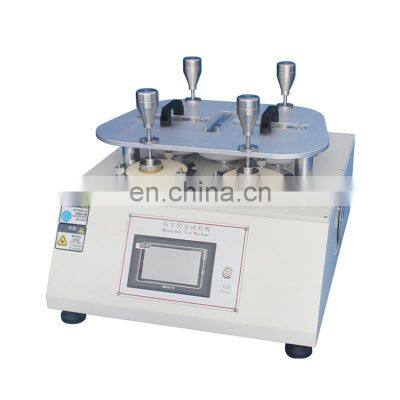

1.Hongjin Martindale Fabric Abrasion Resistance Testing Machine Textile Abrasion Resistant Tester Price mainly applies to the resistance test of textile and outside layer, lining or underlayer of the footware or the similar fabric.
2.Hongjin Martindale Fabric Abrasion Resistance Testing Machine Textile Abrasion Resistant Tester Price is to determine the abrasion and pilling resistance of all kinds of textile structures. Samples are rubbed against known abradants at low pressures and in continuously changing directions and the amount of abrasion or pilling is compared against standard parameters.

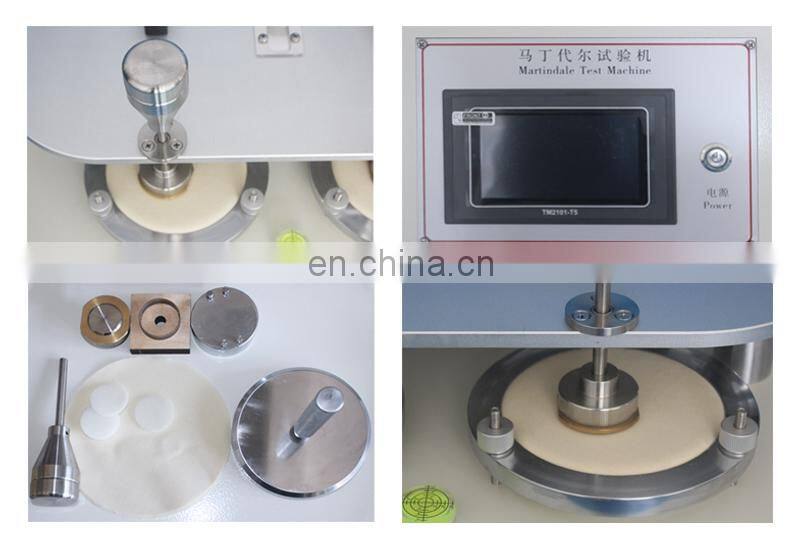

3.The unique design of Hongjin Martindale Fabric Abrasion Resistance Testing Machine Textile Abrasion Resistant Tester Price allows removal of individual sample holders for examination without lifting the top motion plate. Martindale tester provides individual counters and parking function, interval time settable, large touch-screen display, Standard sample holders and 9 and 12kpa Weights are included.

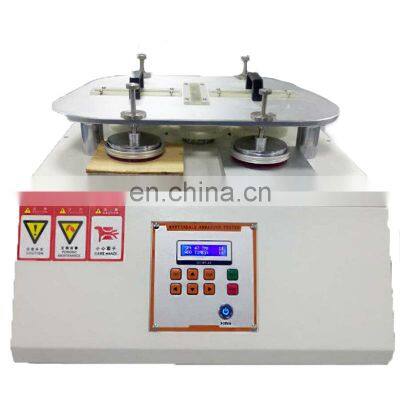

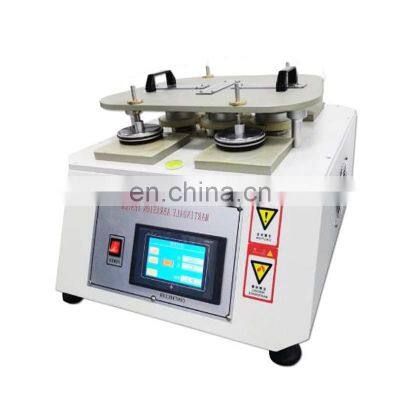

4.Martindale Tester is available with 4, 6, 8 test positions, and we have LCD control and Touch screen control, 2 different control models.
Technical parameters of wear tester
| Station number | 9 station |
| Count display | a. Estimated counting:0~999999 times |
| b. Total counting:0~999999 times | |
| Maximum dynamic range | 24±0.5mm ,60.5±0.5mm |
| Weight of pressure thing | a.Gripper:200±1g |
| b. Cloth samples hammer:395±2g | |
| c. Furniture accessories sample hammer:594±2g | |
| d. Stainless steel butterfly piece:260±1g | |
| Effective friction diameter of grinding block | A type: 200g (1.96N) friction head ¢ 28.8-0.084mm |
| B type: 155g (1.52N) friction head ¢ 90-0.10mm | |
| The relative velocity of Gripper and the grinding station | 50-2r/min |
| Weight of pressure hammer | 2385±10g |
| Dimensions | 885mm×600mm×410mm(L×W×H) |
| Weight | 150kg |
| Power | Ac220V,50Hz |
Q: Are your company a trading one or a factory?
A: We are a factory over13-year experience.
Q: After an order is placed, when to deliver?
A: Generally about 15 days. If we have inventory, we can arrange to ship within 3-5 days. Please be aware that our production lead times depend on specific items and item quantities.
Q: What about the product' services and quality?
A: We have Pre-service, middle-service and after-sale service. Can provide video training to show you how to install & operate. We can also arrange engineer to train the operation of equipment to customer's company when you need. Core components almostly are from the import.
Q: Our controller is self-developed, which is convenient to provide non-standard customization quickly
