Phone Touch Screen Click Marked Cross Life Tester, Mobile Phone Button Mark Lineation Life Test Machine
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Agent
Year Established:
2001
Annual Export Value:
US$1.5 Million - US$2.5 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Digital Finished Whole Shoes Sole Bending Resistance Test Machine FactoryNegotiableMOQ: 1 -
1-2000000cp Range Digital Viscosimetre Viscosimeter ViscometerNegotiableMOQ: 1
-
Best Supply Price Of RCA Paper Abrasion Testing Machine Tester Test EquipmentNegotiableMOQ: 1
-
RCA Scroll Tape Abrasion Tester/Paper Friction Testing MachineNegotiableMOQ: 1
-
Light Sources D65 TL84 F UV CWF U30 Color Assessment Light Box Color Matching Cabinet Benchtop SpectrophotometersNegotiableMOQ: 1
Product Description
Equipment use:

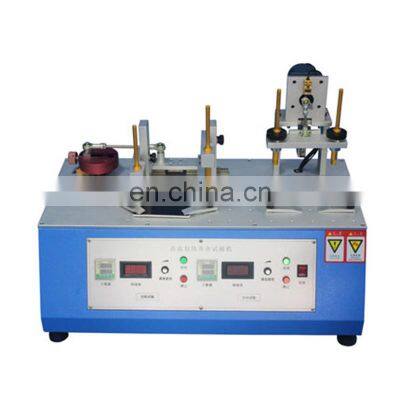

The touch screen click marking tester is a high-tech product integrating precision machinery and automatic control marking. This machine is mainly used for the endurance test of frame, click and friction on the handwriting screen and touch screen of small consumer electronic products such as mobile phones, dialogue machines and electronic dictionaries. This product has the advantages of strong functions, simple programming, convenient operation and low price.
Features:
1. Motion trajectory and test: Convenient coordinate finding point function, just take three points in the program to generate circle, triangle and other motion trajectories, any two points can draw a line, any four points can be used to draw a rectangle, and it can be tested according to the test. The mobile phone specification stores the motion track for the next call;
2.Adopting stepping motor with linear guide rail and ball screw as the movement mechanism, accurate positioning, high precision, low noise, precision and durability.
3. Real-time display of current X, Y coordinate values, motor drive speed, real-time position changes, etc.;
4. The surface of the machine is made of high-rigidity aluminum with anodizing treatment, which is rich in texture.
5. The XY axis is driven by a stepping motor, ball screw drive, high speed, low noise, and durable use;
Specification
X-axis movement range | 0～300mm |
Y-axis movement range | 0～300mm |
Click on the cylinder stroke | 0～15mm |
Positioning accuracy | 0.05mm |
Moving speed | 30-3000mm/min |
Pressure range | 0～800gf |
Dimensions | 750 x 600 x 450mm |
Weight | 80kg |
Power supply | AC220V |
Packing & Delivery
Company Profile
FAQ
Why choose us?
1. About voltage
Intimately serve plugs in different countries, manually change the voltage from 110V to 220V, and insurance indicator light.
2. Excellent after-sales service:
12 months warranty. In the process of using your machine, if you have any questions, you can contact us at any time, we will give you professional and timely technical guidance, and solve the problem for you through video, telephone and other methods.
3. About our company
We are a professional manufacturer of R&D and production of environmental, mechanics and vibration laboratory instruments. We support factory inspections. We have ISO certification, CE certification and a number of patent certificates to escort export to your country.
