Home > Instruments & Meters > Test Instrument > Test Machine > 3 Axis Large Force Use-Friendly Electrodynamics Shaker Table Meet ISTA Standard

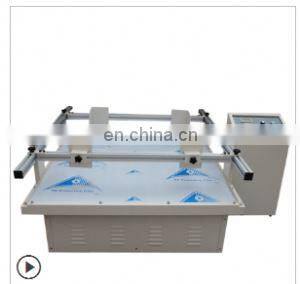

3 Axis Large Force Use-Friendly Electrodynamics Shaker Table Meet ISTA Standard
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Agent
Year Established:
2001
Annual Export Value:
US$1.5 Million - US$2.5 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Battery Vertical Vibration Stand Electromagnetic TesterNegotiableMOQ: 1 -
2000HZ Hot Sale Electromagnetic Tester Shaking Three-axis Vibration Test TableNegotiableMOQ: 1
-
Low Price Transportation Test Standard Accelerated Table Vibration TestingNegotiableMOQ: 1
-
High Pecision Shaker Equipment Vibration Test TableNegotiableMOQ: 1
-
Multifunction Testing Table for Taxi Mobile Phone Vibration Shaker Mechanical Test SystemNegotiableMOQ: 1
Test system composition
1. One-piece horizontal vibration generator
2. Vertical expansion table
3. Cooling fan with muffler
4. Digital switching power amplifier
5. Multi-function vibration control measuring instrument.
Technical performance of each part
(1) Vibration generator and power amplifi
| Maximum load | 120kg |
| Table weight | 1100kg |
| Mean time between failures | >3500 hours |
| Axial vibration isolation frequency | <3Hz |
| Magnetic leakage | ≤1mT |
| Impact displacement | 25mmP-P (maximum) |
| Maximum speed | 1.8m/s |
| Maximum acceleration | 981m/s2 (100g) (no load) |
| Sinusoidal thrust | 2940N (300kg.f) |
| Random thrust | 2940N (300kg.f) |
| Impact thrust | 5880N(600kg.f) |
(2)Water smoothing station
| Table size | 600mm × 600mm (square) |
| Equivalent mass | About 30kg (connecting head) |
| Table thickness | 25 mm |
| Upper limit frequency | Sine 2000Hz, random 2000HZ |
| weight capacity | The test acceleration at 200kg is F=MA, the thrust must be less than F, |
| Countertop material | Aluminum alloy |
(3)Vertical expansion countertop
| Table size | 600mm × 600mm (method) |
| Equivalent mass | About 30kg (moving parts) |
| Table height | 140 mm |
| Upper limit frequency | Sine 1000Hz, random 1500HZ |
| Countertop material | Aluminum alloy |
