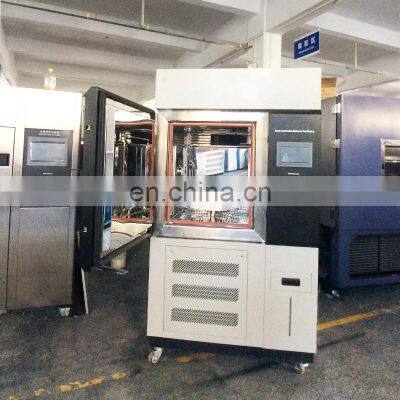

Weather Resistance Weatherometer Xenon Arc Light Aging Testing Chamber
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Agent
Year Established:
2001
Annual Export Value:
US$1.5 Million - US$2.5 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Xenon Arc Lamp Climatic Test ChamberNegotiableMOQ: 1 -
ASTM D4355 Standard Interior Materials Electrical Product Shell Xenon Aging Testing MachineNegotiableMOQ: 1
-
Solar Simulator Light Aging UV Weathering Test Chamber XenonNegotiableMOQ: 1
-
Xenon Lamp Photostability Test ChamberNegotiableMOQ: 1
-
Environmental Accelerated Testers Xenon Lamp Aging Machines With High QualityNegotiableMOQ: 1
Xenon arc weathering test equipment application
The xenon lamp test box uses a xenon arc lamp that can simulate the full sunlight spectrum to reproduce the destructive light waves existing in different environments, which can provide corresponding environmental simulation and accelerated tests for scientific research, product development and quality control. The xenon lamp test box can be used to select new materials, improve existing materials, or evaluate changes in durability after changes in material composition. It can well simulate changes in materials exposed to sunlight under different environmental conditions.
Model |
150 (air-cooled type) |
225 (air-cooled type) |
408 (air-cooled type) |
||
Studio size (DxWxH) mm |
500x600x500 |
500x600x750 |
800x850x650 |
||
Dimensions (DxWxH) mm Total power |
1030x1090x1640 |
1440x1280x2060 |
1440x1380x2060 |
||
Total power |
11.5KW |
12.5KW |
14.5KW |
||
net weight |
340KG |
460KG |
660KG |
||
Blackboard temperature range |
63℃~100℃ |
||||
Humidity range |
65~98%R.H |
||||
Rain cycle |
1 -240 minutes, adjustable interval (break) |
||||
Measuring wavelength |
400nm-1000nm |
||||
Xenon lamp power |
Imported 1.8KW (2000 hours of life) |
||||
Rain time |
1 -9999 minutes, adjustable |
||||
Water spray pressure |
0.12~0.15mpa |
||||
radioactivity |
150W/m2 736W/m2 |
||||
Xenon arc machine features
◆ Full spectrum xenon lamp.
◆ Various filter systems for selection.
◆ Water spray function.
◆ Relative humidity control.
◆ Test chamber air temperature control system.

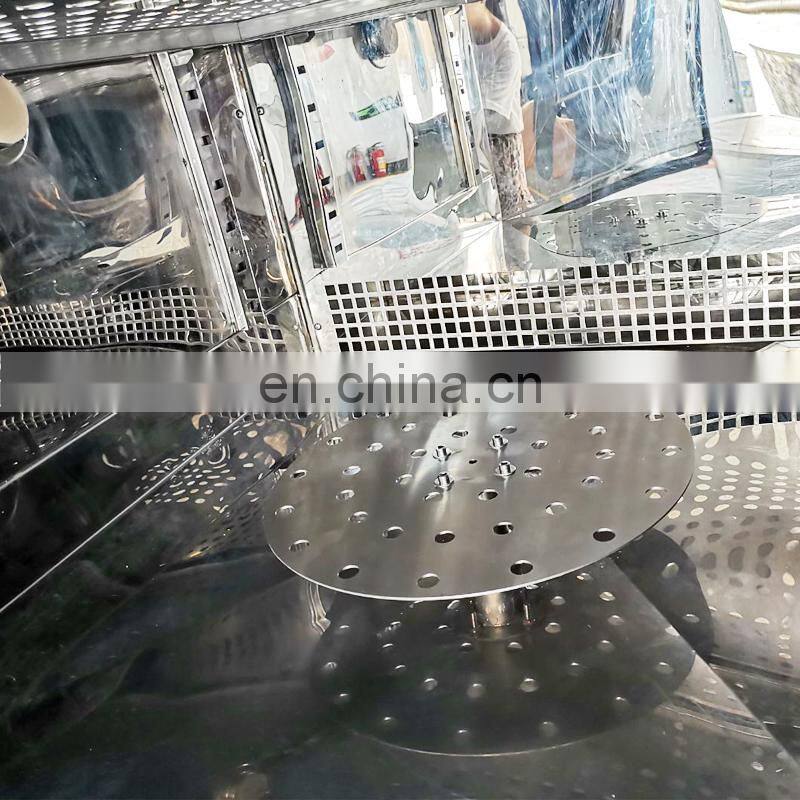

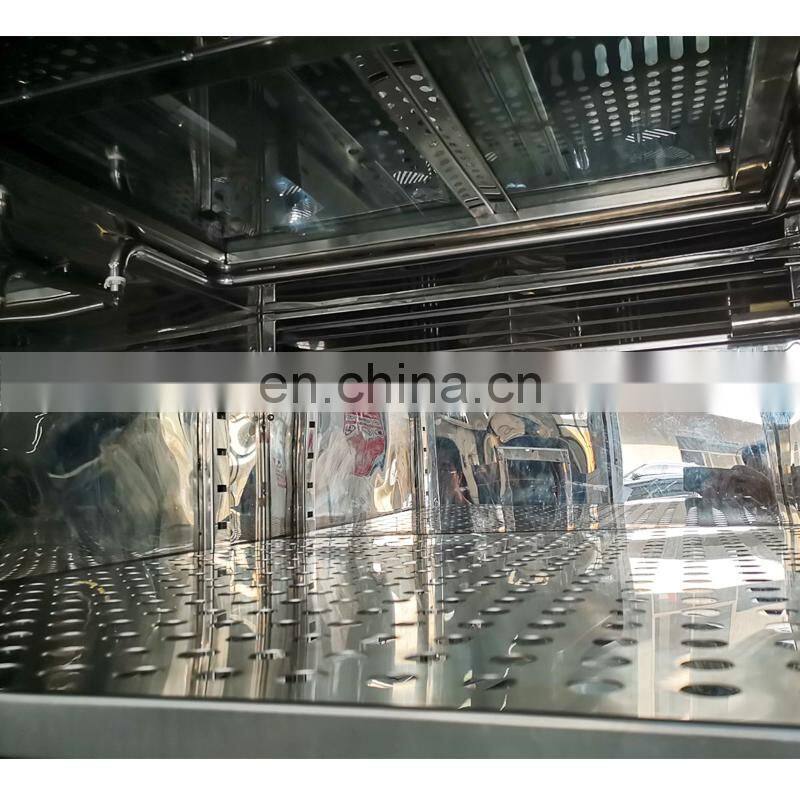

◆ Irregularly shaped flat product shelf for easy placement of products
◆ The xenon arc tube imported from the United States.
◆ It is easy to install and use, and basically does not require routine maintenance.

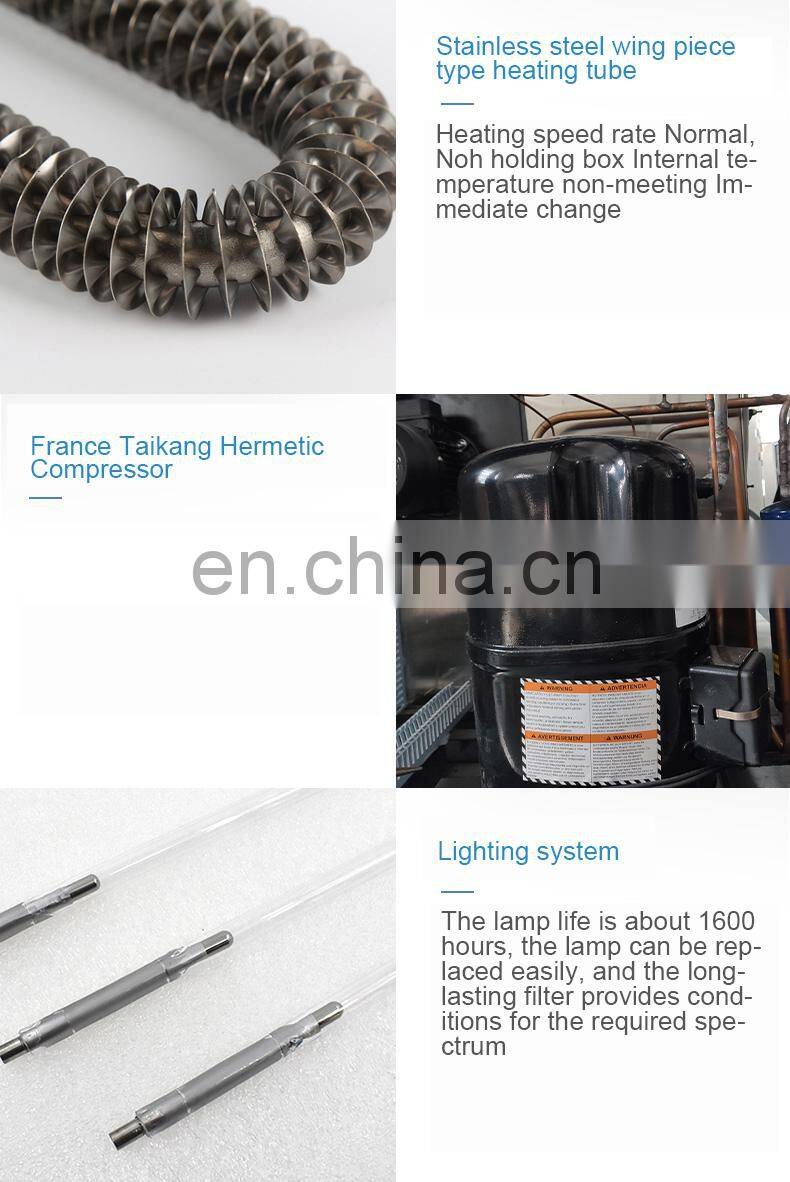

◆ The service life of the xenon arc lamp tube depends on the level of irradiance used. Generally, the service life of the lamp tube is 1600 hours. The lamp can be replaced quickly and easily, and the long-lasting filter provides a guarantee for maintaining the required spectrum.

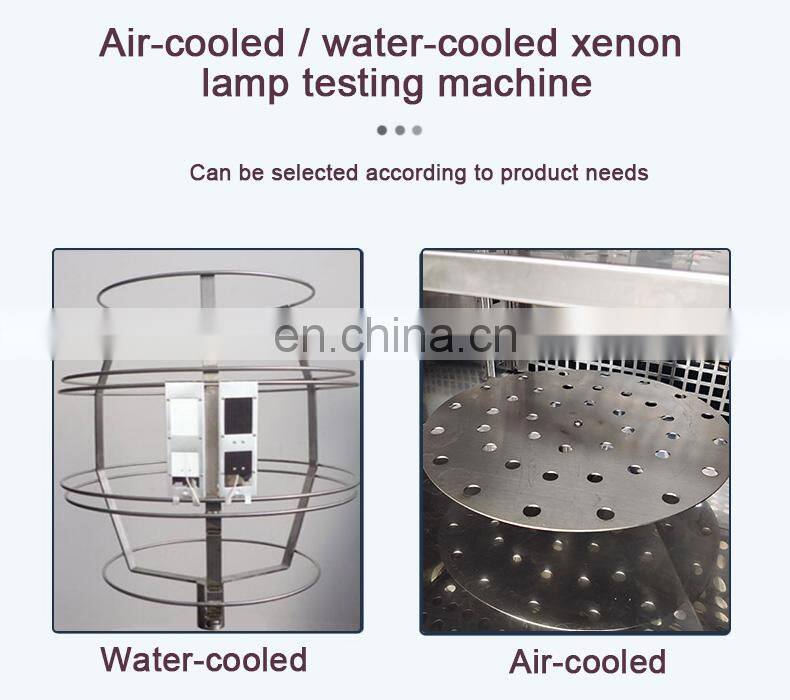

◆ The latest air-cooled xenon lamp solves the problem of high failure rate of the water-cooled xenon lamp cooling method. It is convenient for users to replace the lamp by themselves; maintenance is simple and convenient.
Xenon arc lamp test equipment standard
GB/T8427, IS0105-B02, GB/T 8430, ISO 1 05-B04, GB/T 14576. AATCC TM1 6-2003. GB/T 15102-2006. GB/T 151 04-2006 and other international standards.
About our company
Hongjin Testing Instrument Company is a professional manufacturer of various testing equipment for more than 14 years. Hongjin instruments are widely used in paper products, color printing packaging, ink printing, tape, bags, shoes, leather products, environment, toys, baby products, food, hardware, electronic cables, plastic products, rubber products, household appliances, and other industries , And apply to all scientific research units, quality inspection institutions and universities.
FAQ
1. Are your company a trading one or a factory?
Factory ,14 years focusing on test instruments field,5 years exporting experience.Our factory is in Dongguan, Guangdong, China
2. Do you offer after-sales service? How can I ask for that? And how about the warranty?
Every machine from our factory has a 12-month warranty after shipment. Generally,
we offer 12 months for the FREE maintenance, while considering of sea transportation,
If your machine doesn’t work, you can send E-mail to us and we will try our best to find
the problem by email or skype video chat if neccesary. After confirmation of the problem,
we can send you new spare parts or provide on-site repair.
3. What’s the delivery term?
At most of time, we have stock in the factory. If there is no stock, normally, the delivery
time is 7-20 working days after deposit receipt. If you are in urgent need, we can consider
making a special arrangement for you.
4. Do you accept customization service? Can I have my logo on the machine?
Yes, of course. We can not only offer standard machines, but also customized
machines according to your requirements. And we can also put your logo on the machine.
5. Do you have a branch company or service office in my country?
We have offices in the belowing:
Hangzhou Branch:
Address: Building 1, Haixiang Industrial Park,Moqianshan Road, Xiangfu Town, Gongshu District, Hangzhou, Zhejiang, China
6. How to install and use the product?
We will send you operating instructions, English video by Email. Or you can download on our
officail website directly.
Most of our machine is shipped with a whole part, which means it is already installed, all you
need to do is to connect the power cable and start to use. And if possible, we can also install
your machine at site.
7. What about the services and product' quality?
Service: ,Design service,Buyer lable service.
Quality: Each instruments must be carried out 100% quality examination and test, the finished products must through a third party
calibration institutions before shipping and delivery goods.
