Precision Thermo Testing Machine for Semiconductor,chips,microelectronics,integrated Circuitstester
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Agent
Year Established:
2001
Annual Export Value:
US$1.5 Million - US$2.5 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
80L Thermal Shock Dunk Test Chamber for Coating/pcb/refractory/solder JointsNegotiableMOQ: 1 -
IEC Standard Temperature Cycle Thermal Shock Test Machine ReliabilityNegotiableMOQ: 1
-
ISO 2819 40L Temperature Thermal Shock Test Chamber for Glass Containers in IndiaNegotiableMOQ: 1
-
Programable Lab Test Equipment 40L Liquid to Liquid Thermal Shock ChamberNegotiableMOQ: 1
-
Industrial Price Environmental Cooling and Heating Shock Thermal Type Air Testing ChamberNegotiableMOQ: 1
Product Usage
Product Description
Application
Characteristic analysis, high and low temperature temperature change test, temperature shock test, failure analysis and other reliability tests,
Such as: chips, microelectronics, integrated circuits (SOC, FPGA, PLD, MCU, ADC/DAC, DSP, etc.) flash memory Flash, UFS, eMMC, PCBs, MCMs, MEMS, IGBT, sensors, small module components, optical communications ( Such as: Transceiver high and low temperature test, SFP optical module high and low temperature test, etc.) Other electronic industry, new aerospace materials.
Use

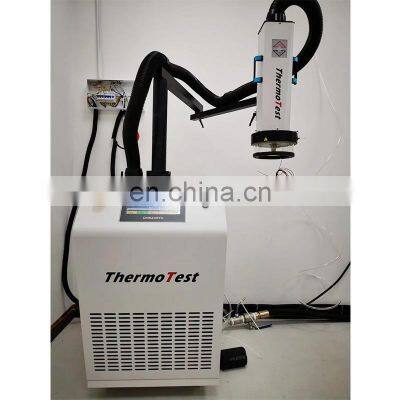

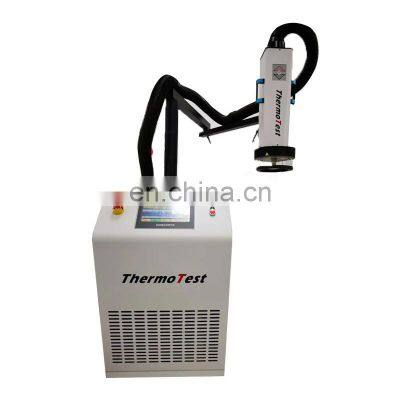

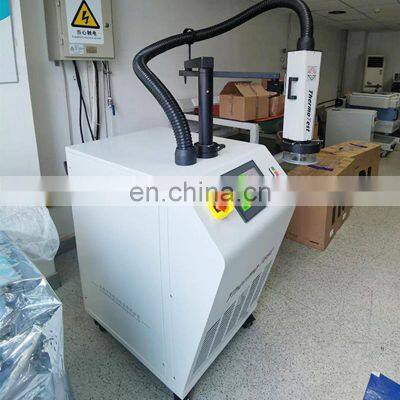

HJ-TS-560 is a precise high and low temperature impact airflow meter, with a wider temperature range-65℃ to +225℃, providing a very advanced temperature conversion test capability. The fastest temperature conversion from -55°C to +125°C takes only 13 seconds; after long-term multi-condition verification, it meets the requirements of various production environments and engineering environments. TS-560 is purely mechanical refrigeration, without liquid nitrogen or any other consumable refrigerants.
Features
1.The temperature change rate is fast, the fastest conversion between -55°C and +125°C takes only 13 seconds. Wide temperature range, -65°C to +225°C Compact structure, mobile design, touch screen operation, human-computer interaction interface, fast DUT temperature stabilization time.
2.Temperature control accuracy ±1℃, display accuracy ±0.1℃
3.Air flow can be as high as 18SCFM
4.Patented defrosting design to quickly remove internal water vapor accumulation
Standard test
1.Meet the U.S. military standard MIL system test standards
2.Meet the GJB system test standards of domestic military components
3.Meet JEDEC test requirements
Technical specifications |
|
Temperature range |
-65 ºC to + 225 ºC |
Typical temperature conversion rate |
-55 ºC to + 125 ºC; ≤13 seconds |
Temperature control accuracy |
± 1 ºC |
Display/setting accuracy |
± 0.1 ºC |
ystem air flow |
4 ~ 18 SCFM（1.9L/s ~ 8.5L/s） |
System operation |
High-definition color touch screen, 7"TFT |
System language |
Chinese /English |
Operation mode |
Manual mode or program mode |
Detection mode |
Air, DUT |
Temperature control |
Internal: TC; Remote/External: T, K; Optional: RTD |
Communication Interface |
RS-232, LAN; Optional: GPIB |
Refrigerant |
HCFC Environmentally friendly refrigerant |
Lift control |
Lifting rod: electric; HEAD: pneumatic control; operation via local or remote interface |
Arm extension |
X：1300mm， Y：400mm， Z：360° |
Heat shield size |
Standard: 140mm; Others: Φ74mm/Φ178mm (Various sizes are available for customization) |
Host size |
638mm * 970mm * 970mm(Length*width*height) |
Noise |
≤59dBA |
Weight |
205Kg |
Power requirements |
220VAC/50Hz，30Amp，1Phase |
Related Products
Product packaging

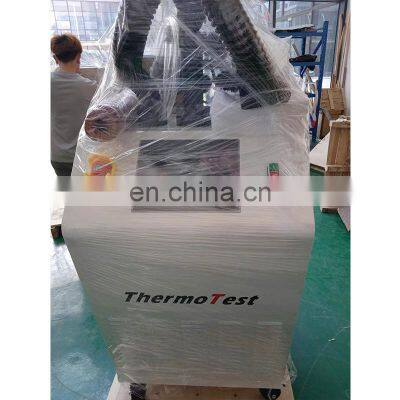

Clean the machine first, and then package with film paper and foam paper. It is best to export wooden boxes according to the size
About our company
Hongjin Testing Instrument Company is a professional manufacturer of various testing equipment for more than 14 years. Hongjin instruments are widely used in paper products, color printing packaging, ink printing, tape, bags, shoes, leather products, environment, toys, baby products, food, hardware, electronic cables, plastic products, rubber products, household appliances, and other industries , And apply to all scientific research units, quality inspection institutions and universities.
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
FAQ
1. Are your company a trading one or a factory?
Factory ,14 years focusing on test instruments field,5 years exporting experience.Our factory is in Dongguan, Guangdong, China
2. Do you offer after-sales service? How can I ask for that? And how about the warranty?
Every machine from our factory has a 12-month warranty after shipment. Generally,
we offer 12 months for the FREE maintenance, while considering of sea transportation,
If your machine doesn’t work, you can send E-mail to us and we will try our best to find
the problem by email or skype video chat if neccesary. After confirmation of the problem,
we can send you new spare parts or provide on-site repair.
3. What’s the delivery term?
At most of time, we have stock in the factory. If there is no stock, normally, the delivery
time is 7-20 working days after deposit receipt. If you are in urgent need, we can consider
making a special arrangement for you.
4. Do you accept customization service? Can I have my logo on the machine?
Yes, of course. We can not only offer standard machines, but also customized
machines according to your requirements. And we can also put your logo on the machine.
5. Do you have a branch company or service office in my country?
We have offices in the belowing:
Hangzhou Branch:
Address: Building 1, Haixiang Industrial Park,Moqianshan Road, Xiangfu Town, Gongshu District, Hangzhou, Zhejiang, China
6. How to install and use the product?
We will send you operating instructions, English video by Email. Or you can download on our
officail website directly.
Most of our machine is shipped with a whole part, which means it is already installed, all you
need to do is to connect the power cable and start to use. And if possible, we can also install
your machine at site.
7. What about the services and product' quality?
Service: ,Design service,Buyer lable service.
Quality: Each instruments must be carried out 100% quality examination and test, the finished products must through a third party
calibration institutions before shipping and delivery goods.
