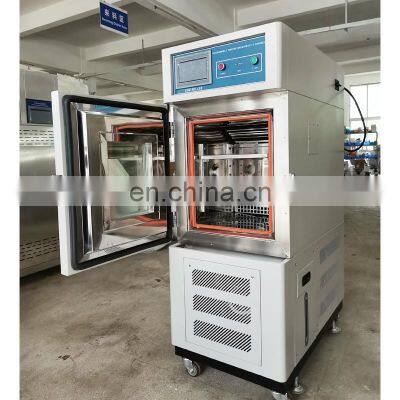

Help CenterSteel Stability Temperature Humidity Climate Test Chamber Density Test
Related Products
-
Gemstone R 449Atemperature Humidity Led Testing Equipment LiquidNegotiableMOQ: 1 -
Universal Temp and Test Chamber Humidity Tester for WholesalesNegotiableMOQ: 1
-
R449A Testing High Low Temperature Humidity Environmental Chamber With CE CertificateNegotiableMOQ: 1
-
Climatic Testing Chambers R449A Aging Tester With CE CertificateNegotiableMOQ: 1
-
R 449A Refrigerant Temperature And Humidity Climate Test Machine For EuropeanNegotiableMOQ: 1
Product Description
1. High-quality appearance, the body adopts arc shape, the surface is treated by matte stripe, and the plane has no reaction handle, which is easy to operate, safe and reliable.
2, rectangular laminated glass viewing window, can be used in the test to observe the test, the window has a sweat-proof electric heater device to prevent condensation, and high-brightness PL fluorescent lamp to keep the box inside lighting.
3, with test holes can be connected to the test power line or signal line and adjust the storage tray up and down;
4. The double-door isolation of the door is tight and tight, which can effectively isolate the internal temperature leakage.
5. The special temperature rise and fall temperature rate controllable technology can realize the continuous and arbitrarily adjustable temperature rise and fall;
6. The compressor circulation system adopts the French "Taikang" brand, which can effectively remove the lubricating oil between the condensation tube and the hand thin tube. The whole series adopts the environmental protection medium (R-404, R-501) of the United States.
7. The controller uses the imported LCD display screen to display the measured value and set value at the same time.
8. The controller has multiple programs to edit the humidity and temperature for quick (QUICK) or slope (SLOP) control.
9. The built-in moving pulley is easy to move and place with a strong positioning screw fixing position.
Model |
HY-TH-80 |
HY-TH-150 |
HY-TH-225 |
HY-TH-408 |
HY-TH-800 |
HY-TH-1000 |
|
Inner size: W×H×D(mm) |
40*50*40 |
50*60*50 |
60*75*50 |
60*85*80 |
100*100*80 |
100*100*100 |
|
External size W×H×D(cm) |
105*165*98 |
105*175*108 |
115*190*108 |
135*200*115 |
155*215*135 |
155*215*155 |
|
Temperature range |
(low:A:+25℃; B:0℃;C:-20℃; D:-40℃;E:-60℃;F:-70℃) ( high :+100℃/+150℃) |
||||||
Temp analytic accuracy/uniformity |
0.1℃/±2.0℃ |
||||||
Temperature control accuracy |
±0.5℃ |
||||||
Heat; cooling time |
Heat up about 4.0°C/min ; Cooling about 1.0°C/min |
||||||
Inner and outer materials |
SUS#304 Stainless steel for inner chamber ; Carton Advanced cold plate nano paint for outer |
||||||
heat insulation material |
Resistant to high temp ,high density,formate chlorine,ethyl acetum foam insulation materials |
||||||
cooling system |
Air cooling/single segment compressor(-40°C) ,air and water double segment compressor (-50°C~-70°C) |
||||||
Protection devices |
Fuse switch, compressor overload switch, refrigerant high and low pressure protection switch, super humidity over-temperature protection switch, fuse, failure warning system |
||||||
Parts |
Watching window , 50mm testing hole , PL internal bulbs , Wet and dry bulb gauze , partition plate , castorx4,Foot Cupx4 |
||||||
Compressor |
Original France"Tecumseh"brand |
||||||
Controller |
TEMI South Korea |
||||||
Power |
AC220V 50/60Hz & 1,AC380V 50/60Hz 3 |
||||||
weight (kg) |
150 |
220 |
270 |
320 |
450 |
580 |
|

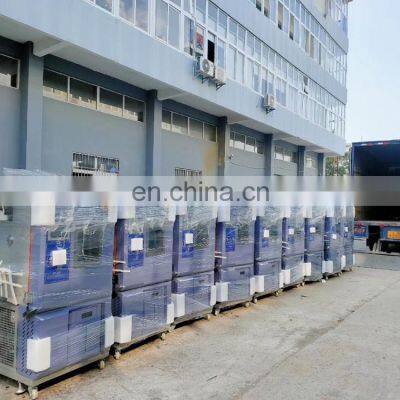

Packaging & Shipping
