Product Overview

Application

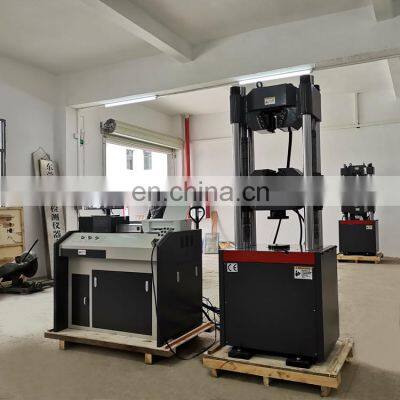

Computer display Hydraulic Universal Testing Machine is a high-precision, multi-purpose material testing machine that tests the mechanical properties of various metal materials, non-metal materials, composite materials in the state of tension, compression and bending.
FEATURES AT A GLANCE
1. AC Servo motor, ensure good performance for long term. 2. PID control, constant loading and unloading and hold on loading, constant-speed displacement and hold on displacement, constant-speed deformation and hold on deformation 3. High precision load cell

4. The extensometer can be configured according to the needs of customers

PRODUCT SPECIFICATIONS
Max load (KN)
100
300
600
1000
Range
whole journey didn't sub-file ,equivalent 3 grade
Test force measuring range (KN)
4%-100%FS
Test Force showed the relative error
≤indicating value±1%
Test Force Resolution
0.01kN
Displacement measurement resolution (mm)
0.01
Max tensile test space (mm)
550
650
750
Max compression space (mm)
380
460
Diameter of round specimen clamp jaw (mm)
Φ6-Φ26
Φ13-Φ40
Thickness of flat specimen clamping jaws (mm)
0-15
0-15/15-30
Maximum clamping width of the flat specimen (mm)
70
75
Maximum clamping width of the flat specimen
2
2/4
Clamping method
Manual clamping
Automatic clamping/Manualclamping
Shear specimen diameter (mm)
10
Upper and lower compression plate size (mm)
Φ160(option 204×204)
The maximum distance between the fulcrum bending
450
Pump motor power (KW)
1.1
Space stretching from the two pillars distance
450
550
Beam moves up and down motor fixed rate (KW)
0.75
Net weight (Kg)
1600
1800
2000
2600
