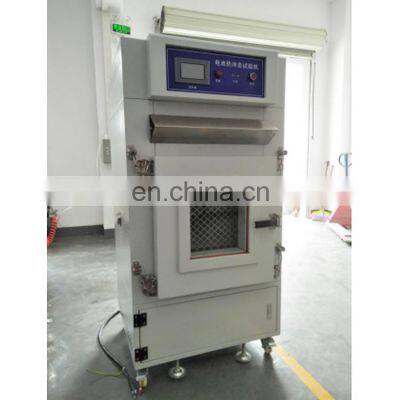

Laboratory Stability Temperature Impact Testing Machine Cycling Battery Thermal Shock Chamber
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Agent
Year Established:
2001
Annual Export Value:
US$1.5 Million - US$2.5 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Laboratory Battery Simulate High Altitude Low Pressure Test ChamberNegotiableMOQ: 1 -
Laboratory Battery Charge and Discharge TesterNegotiableMOQ: 1
-
Laboratory Temperature Control Battery Short Circuit Test ChamberNegotiableMOQ: 1
-
Hongjin Programmable Low Pressure Battery Explosion Proof Test ChamberNegotiableMOQ: 1
-
Battery Dual Explosion-proof Testing MachineNegotiableMOQ: 1
Product Overview
Test purposes
The battery thermal shock tester is to simulate the battery placed in a high temperature box with natural convection or forced ventilation, heating up to the set test temperature at a certain heating rate and keeping it for a certain period of time, using a hot air circulation system to ensure uniform working temperature distribution.
Test method description
After the battery is fully charged in accordance with the specified test method, place the battery in the test box, and the test box will be heated at a temperature rise rate of (5±2)℃/min. When the temperature in the box reaches 130℃±2℃, the temperature will be kept constant, and For 30 minutes, the battery should not fire or explode.
Applicable standards
GB/T 31485-2014 "Safety requirements and test methods for power batteries for electric vehicles"
GB/T 31241-2014 "Safety requirements for lithium-ion batteries and battery packs for portable electronic products"
UN38.3 "Recommendations on the Transport of Dangerous Goods-Manual of Tests and Standards"
IEC62133 "Battery and battery packs containing alkaline or non-acid electrolytes-Safety requirements for sealed batteries for portable equipment and good battery packs"
QC/T743-201X "Lithium-ion Power Battery for Electric Vehicles"
GB/T 8897.4-2008 (IEC 60086-4: 2007) "Primary Batteries Part 4 Safety Requirements for Lithium Batteries"
GB/T 21966-2008 (IEC 62281: 2004) "Safety requirements for lithium primary batteries and accumulators in transportation"
Inner box size: | 500x500x600mm (width x depth x height) |
Outer box size: | 650x510x1280mm (width x depth x height) |
Temperature range: | normal temperature~200℃ |
Temperature display accuracy: | 0.1℃ |
Temperature stability: | ±1.0℃ |
Temperature uniformity: | ±2℃ |
Heating time: | (5±2)℃/min, (average heating, non-linear no-load) |
Temperature control meter: | It can be set by a fixed value. After an experiment is completed, reset a temperature and time point and retest other conditions. |
Material of inner box: | stainless steel plate |
Outer box material: | cold-rolled steel plate baking varnish |
Insulation material: | high-efficiency compressed glass wool |
Power supply: | 1∮, 380V, 20A |
Control formation: | When the temperature of the battery thermal shock test box reaches the set temperature, the time meter will be turned on automatically, and the heating power will be cut off when the time is reached, and the buzzer will prompt |
Air circulation system: | convective air circulation system |
Visible window: | 250 X 250mm tempered explosion-proof glass with a thickness of 20mm. A stainless steel explosion-proof steel screen is installed in front of the glass to increase safety performance |
Product features: | an explosion-proof chain is installed on the door of the box, a movable caster is installed at the bottom, and a pressure relief port is added at the rear of the equipment |
PRODUCT SPECIFICATIONS
Product packaging
Certifications
Company Profile
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
FAQ
1. Are your company a trading one or a factory?
Factory ,14 years focusing on test instruments field,5 years exporting experience.Our factory is in Dongguan, Guangdong, China
2. Do you offer after-sales service? How can I ask for that? And how about the warranty?
Every machine from our factory has a 12-month warranty after shipment. Generally,
we offer 12 months for the FREE maintenance, while considering of sea transportation,
If your machine doesn’t work, you can send E-mail to us and we will try our best to find
the problem by email or skype video chat if neccesary. After confirmation of the problem,
we can send you new spare parts or provide on-site repair.
3. What’s the delivery term?
At most of time, we have stock in the factory. If there is no stock, normally, the delivery
time is 7-20 working days after deposit receipt. If you are in urgent need, we can consider
making a special arrangement for you.
4. Do you accept customization service? Can I have my logo on the machine?
Yes, of course. We can not only offer standard machines, but also customized
machines according to your requirements. And we can also put your logo on the machine.
5. Do you have a branch company or service office in my country?
We have offices in the belowing:
Hangzhou Branch:
Address: Building 1, Haixiang Industrial Park,Moqianshan Road, Xiangfu Town, Gongshu District, Hangzhou, Zhejiang, China
6. How to install and use the product?
We will send you operating instructions, English video by Email. Or you can download on our
officail website directly.
Most of our machine is shipped with a whole part, which means it is already installed, all you
need to do is to connect the power cable and start to use. And if possible, we can also install
your machine at site.
7. What about the services and product' quality?
Service: ,Design service,Buyer lable service.
Quality: Each instruments must be carried out 100% quality examination and test, the finished products must through a third party
calibration institutions before shipping and delivery goods.
