270W-285W Polycrystalline Solar Panel PV Module

270W-285W Polycrystalline Solar Panel PV Module photo-1

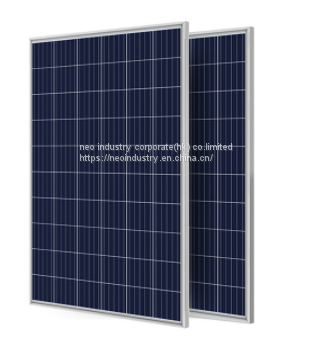

270W-285W Polycrystalline Solar Panel PV Module photo-2

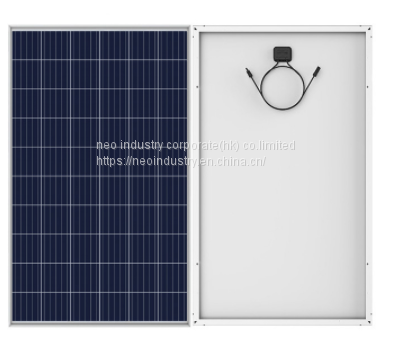

270W-285W Polycrystalline Solar Panel PV Module photo-3
Negotiable MOQ: 100 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Main Markets:
North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe, Central America, Northern Europe, Southern Europe, South Asia, Domestic Market
Location:
Hefei, Anhui, China
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Product Name:   60 Cells 270W-285W Polycrystalline Solar Panel PV Module
Product Description:

IP68 junction box and connector have a high degree of waterproof, effectively resist the harsh environment;

The junction box carries a current of 15A, ensuring high current flow through the modules;

Glue-spilled tank has a double-layer waterproof, cross-section with hook-shaped aluminum frame, enhanced by 10% of the mechanical load strength;

The module refines the current division, thus effectively reducing the loss of up to 2% due to mismatch and increasing the power output of the system;

Excellent salt spray resistance, anti-ammonia and anti PID, TUV, SUD certification approved;

Passed the 2400pa wind load and 5400pa snow load test, ensuring that the module has a stable mechanical life;

Modules are packaged according to color classification, to achieve consistent appearance after installation;


Product Introduction:

Cell Type

Poly Crystalline 156.75x156.75mm

Number Of Cells

60(6x10)

Dimensions(AxBxC)

1650x992x30mm

Weights

18.5kg

Front Glass

3.2mm Tempered Low Iron Glass

Frame

Anodized Aluminum

Junction Box

IP68,with Bypass Diodes

Connector

Mc4 Compatible

Output Cables

Tuv,±length 900mm,4.0mm²


Product Tags: solar panels , SOLAR CELLS , SOLAR SYSTEM , SOLAR HOME SYSTEM , INVERTER , CONTROLLER
