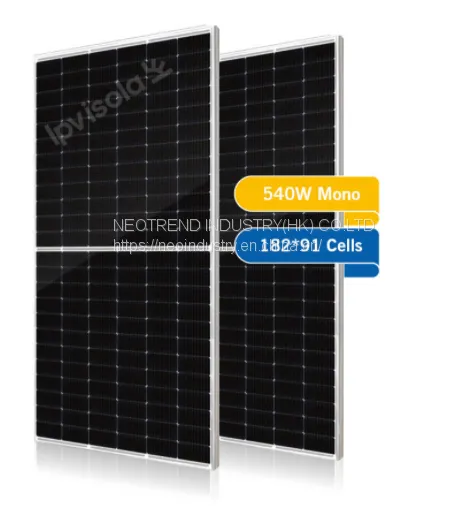

YH540W-36M solar panel

FOB Price

Negotiable / Piece

10 Pieces(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

ELECTRICAL DATA(STC)
Model Type	YH535W-36M	YH540W-36M	YH545W-36M	YH550W-36M
Peak Power(Pmax)	535	540	545	550
Maximum Power Voltage(Vmp)	41.6	41.76	41.93	42.1
Maximum Power Current(Imp)	12.84	12.93	13	13.06
Open Circuit Voltage(Voc)	49.5±3%	49.7±3%	49.9±3%	50.1±3%
Short Circuit Current(Isc)	13.61±3%	13.72±3%	13.81±3%	13.9±3%
Module Efficiency(﹪)	20.93	21.12	21.32	21.51
* STC: irradiance 1000 W/m2, AM 1.5,Gand cell temperature of 25°C

ELECTRICAL DATA(NOCT)
Peak Power(Pmax)	397.7	401.4	405.1	408.9
Maximum Power Voltage(Vmp)	38.62	38.78	38.93	39.09
Maximum Power Current(Imp)	10.3	10.35	10.41	10.46
Open Circuit Voltage(Voc)	46.36±3%	46.54±3%	46.73±3%	46.92±3%
Short Circuit Current(Isc)	10.97±3%	11.05±3%	11.13±3%	11.2±3%
* NOCT: irradiance 800 W/m2, AM 1.5G, ambient temperature 20°C, wind speed 1 m/s

TEMPERATUKE&MAXIMUM RATING
Maximum System Voltage(V)	1500
Maximum Series Fuse Rating(A)	25
Power Tolerance	0～+3﹪
Pmax Temperature Coefficients(W/℃)	-0.350﹪
Voc Temperature Coefficients(V/℃)	-0.250﹪
Isc Temperature Coefficients(A/℃)	+0.04﹪
NOCT Nominal Operating Cell Temperature(℃)	45±2
Operating and Storage Temperature(℃)	-40～+85

MECHANICAL CHARACTERISRTICS
Cell Type	182*91 Mono
No. of Cells	144 (6x12)*2
Dimensions	2256113335mm
Weight	28.4kg
Front Glass	3.2mm high transmission,low iron,tempered glass
Frame	Anodized Aluminium Alloy
Junction box	IP67/IP68
Output cables	4mm² cable 30cm+mc4
MaxWind Load/Snow Load	2400Pa/5400Pa

PACKING WAY
20FT	10Packages/275PCS
40HQ	20Packages/620PCS
