with optimal speed and lightweight.
The addition of disc brakes takes your performance to the next level.
Tapered Headtube compatible with any carbon tapered steerer tube fork for more responsive handling
Race-tuned 6AL/4V diamond shaped top tube is engineered for the pinnacle of performance and durability
Race leading geometry allows for aggressive position, excellent stability and precise handling
Stiff and lightweight
Flat mount disc brake mount
email:carol.liu@comeplaybike.com
whatsapp/wechat/mobile: 8613060477982
1. Specification
Frame Name |

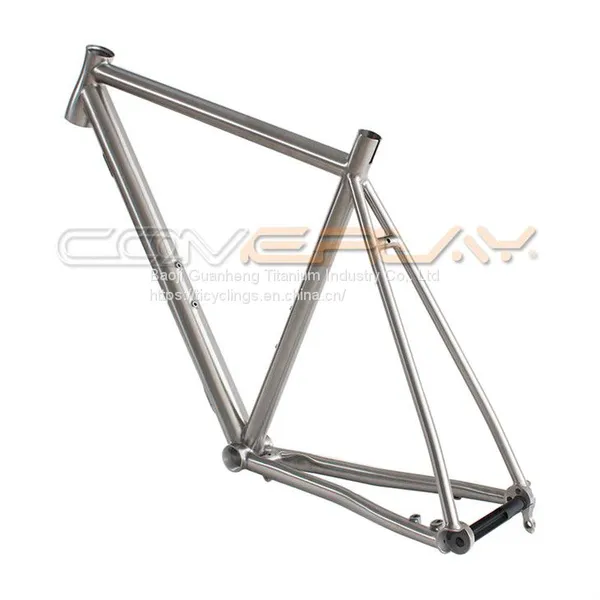

Titanium disc brake road bike frame flat mount road bike frame thru axle dropout |
Material |
Titanium Gr9(Ti3AI2.5V) / Gr5(Ti6Al4V) |
Frame Size |
700C*46-58cm or custom |
Head Tube |
Taper |
Tyre |
28-32C |
Cable routing |
Internal/external |
Brake |
Flat mount disc brake |
Dropout |
Thru axle |
Seat Post |
27.2mm |
Seat Post Clamp |
31.8mm |
Bottom Bracket |
BB68/73/BB30/BSA/PF30 |
Color |
Titanium Grey, Black,Golden,Rainbow or Custom Colors(Vacuum Coating) |
Surface Treatment |
Hand Brushing, Sand Blasting,Mirror, Laser Marking, Engraving |
Weight |
1.5kgs |
Warranty |
Lifetime Warranty Policy |
