It is made of GR9 and GR5 titanium alloy. Very strong but light.
It never rusts, and its fatigue life is five times longer than steel and aluminum, which means it will stay with you for a long nice time.
The bicycle composed of it can absorb road impact very well and is suitable for long-term cycling,
It's a good outfit for your bike.

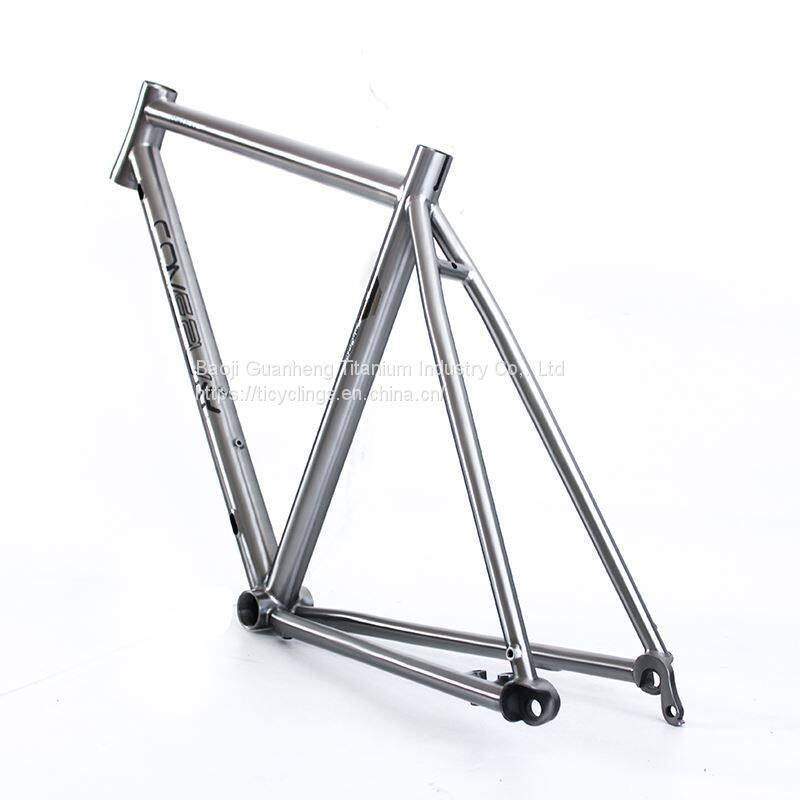

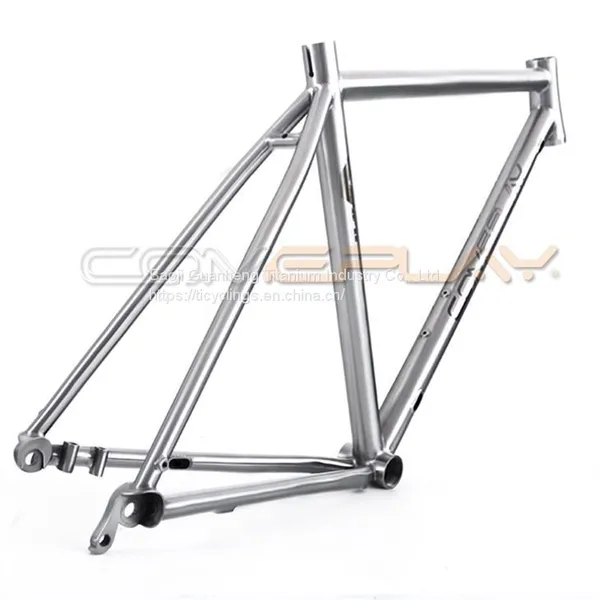

Titaniuim Gravel Bike Frame
All our titanium bicycle frame can be customized according to customers' requirements.
This gravel frame is also cyclocross road bike frame.Flat mount disc brake and thru axle dropout are its highlights.Now it is very popular design.
email:carol.liu@comeplaybike.com
whatsapp/wechat/mobile: 8613060477982
1. Specification
Frame Name | Titanium disc brake road bike frame flat mount road bike frame thru axle dropout |
Material | Titanium Gr9(Ti3AI2.5V) / Gr5(Ti6Al4V) |
Frame Size | 700C*46-58cm or custom |
Head Tube | 34mm/41/44/taper |
Cable routing | Internal/external |
Brake | Flat mount disc brake |
Dropout | Thru axle |
Seat Post | 27.2mm |
Seat Post Clamp | 31.8mm |
Bottom Bracket | BB68/73/BB30/BSA/PF30 |
Color | Titanium Grey, Silver, Custom Colors(Vacuum Coating) |
Surface Treatment | Hand Brushing, Sand Blasting, Laser Marking, Engraving |
Weight | 1.5kgs |
Warranty | Lifetime Warranty |

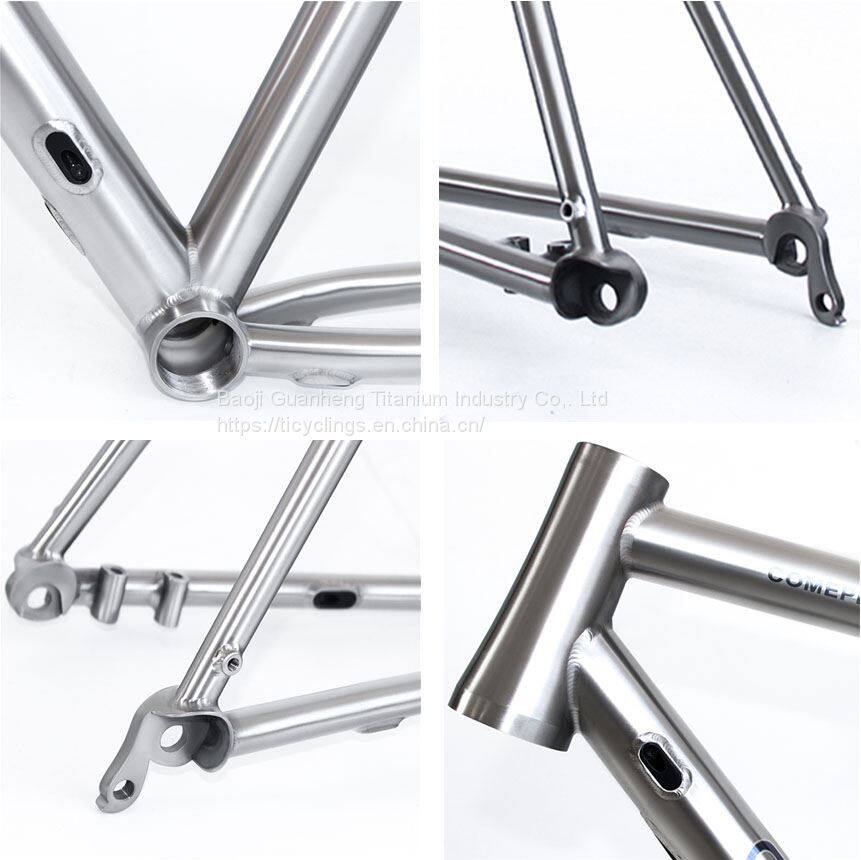

2. Details
3. Review

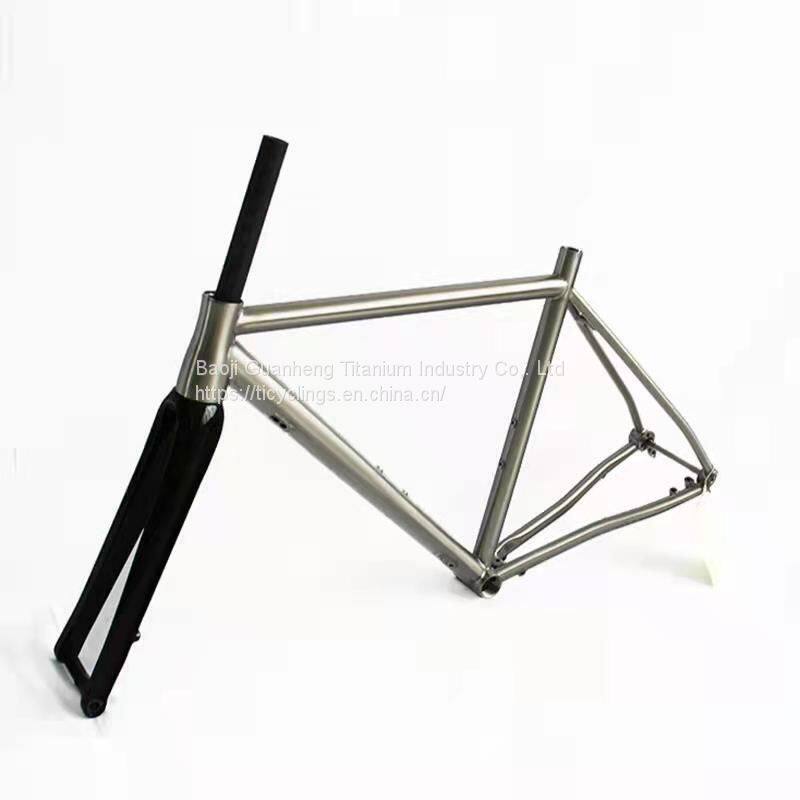

Titanium frame with carbon fork :this combination is very popular.
