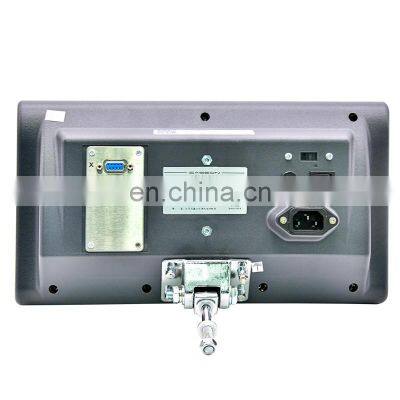

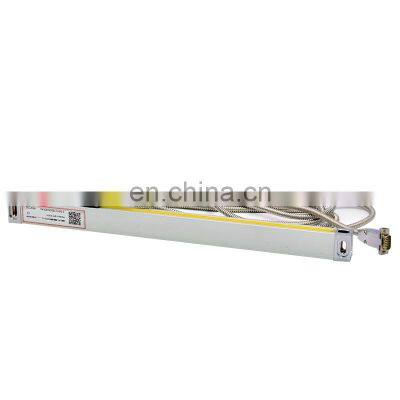

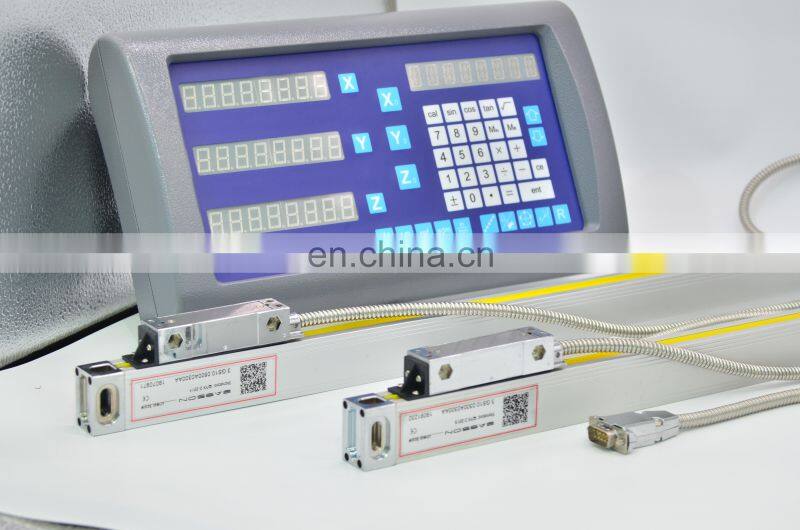

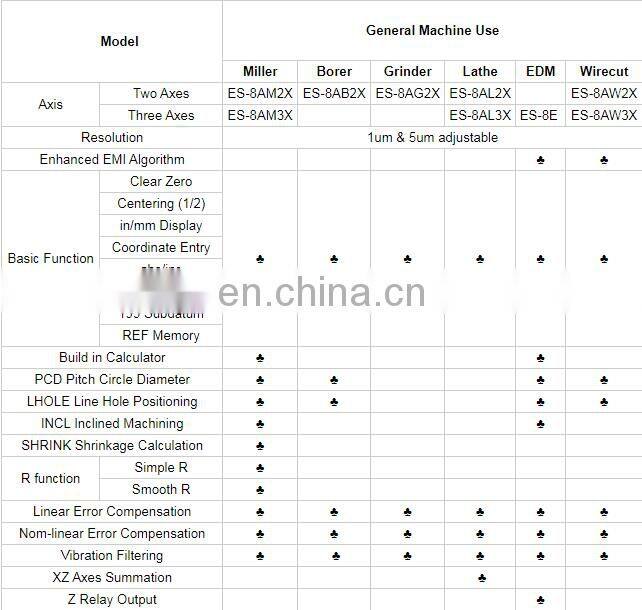

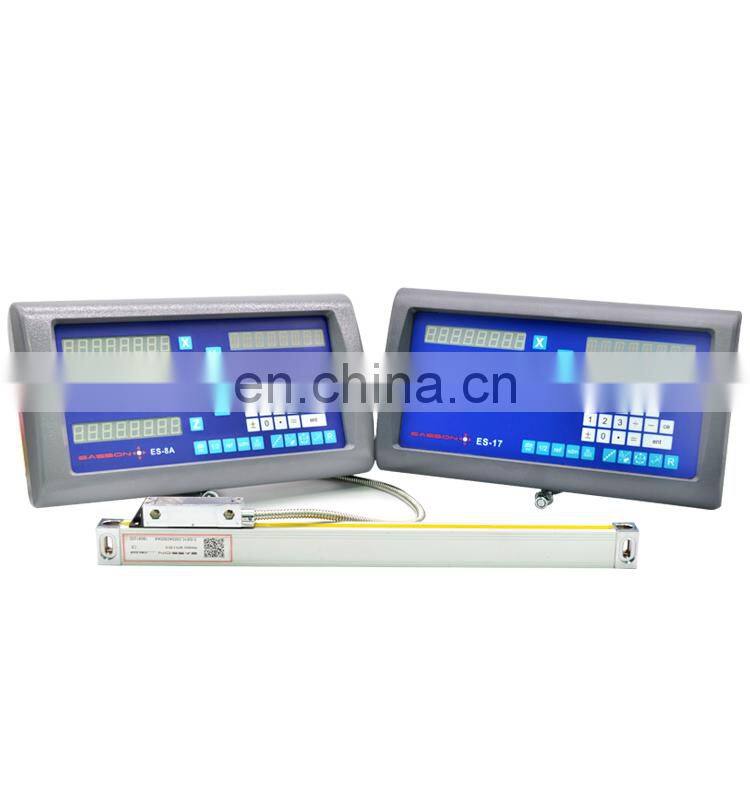

Easson Professional Multi-function 3 Axis Digital Readout With Linear Scale Dro CE Certification
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2013
Annual Export Value:
US$5 Million - US$10 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Linear Scale For Milling Machine 1 Micron 200-1000mm For OptionNegotiableMOQ: 1 -
Easson 3 Axis Digital Readout Dro for Milling Lathe Machine With Linear ScaleNegotiableMOQ: 1
-
Easson Linear Glass Scale Cable For Lathe Milling MachineNegotiableMOQ: 1
-
Grating Ruler Reading Head Fit 20 MHI Grating Ruler Achieve Effective Resolution of 20 nmNegotiableMOQ: 1
-
Grating Ruler Incremental Linear ScaleNegotiableMOQ: 1
Advanced Optical Measuring System

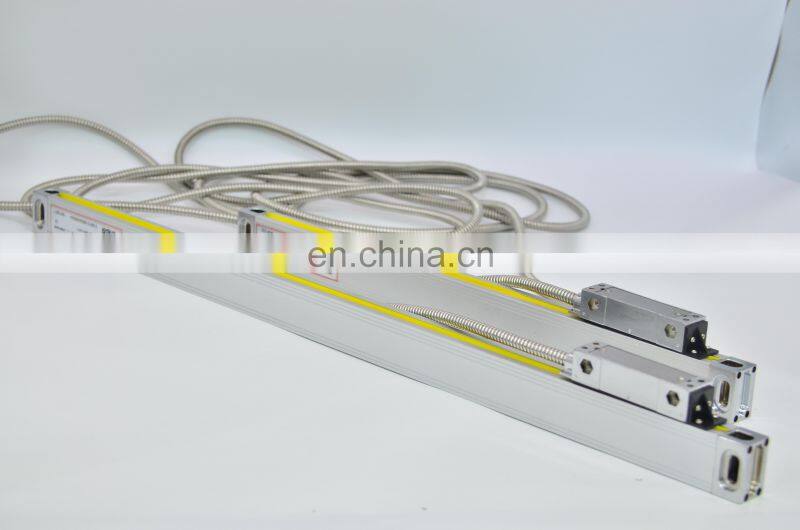

The slide carrier of the GS series scales, use a five bearing design for optical grating linear transducer which has been proven
as the most reliable system design in today's market.
The glass grating slideways are lapped, and JIS standard P5 grade bearings are used to achieve smooth and accurate movement and
long working life.
as the most reliable system design in today's market.
The glass grating slideways are lapped, and JIS standard P5 grade bearings are used to achieve smooth and accurate movement and
long working life.
Doubel Seals Design
The plastics seals of GS series scales use an innovative material to offer superior oil resistance, high elastic recovery properties and durability, carefully designed lips geometry offer low slide resistance.
100% Laser calibration
All glass grating transducers are individually inspected and calibrated by our in-house laser interferometer to ensure measuring
accuracy comply 100% with the specifications.
accuracy comply 100% with the specifications.
ASIC for signal interpolation
ASIC for signal Interpolation is built-in inside the GS Series Glass grating linear transducer to facilitate increased resolution
of the grating. All frequency multiplication is implemented 100% by hardware phase shifting inside the ASIC to minimize the real time measurement error. Because all resistor ladders for phase shifting are constructed with the same piece of semiconductor inside the ASIC, which have same temperature coefficient, therefore. error drift caused by environmental temperature change is minimized.
of the grating. All frequency multiplication is implemented 100% by hardware phase shifting inside the ASIC to minimize the real time measurement error. Because all resistor ladders for phase shifting are constructed with the same piece of semiconductor inside the ASIC, which have same temperature coefficient, therefore. error drift caused by environmental temperature change is minimized.
Industrial standard output signal interface
The industrial standard TTL, RS-422-A and RS-485(optional, available under request) digital signal output are available for user'schoice.User can choose the most suitable signal interface according to their cost, power consideration & EMI requirements. Standard 9 pin DSUB9 and 7 pin DIN7 connectors are available for user's choice.

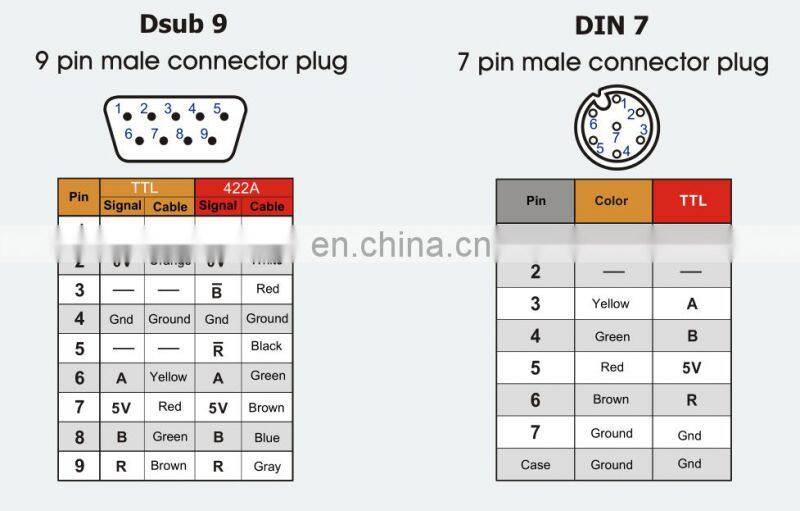

Dsub 9
9pin male connector plug
DIN 7
7pin male connector plug
Pin |
TTL |
422A |
Pin |
Color |
TTL |
|||||
Signal |
Cable |
Signal |
Cable |
|||||||
1 |
—— |
—— |
A |
Yellow |
1 |
Orange |
0V |
|||
2 |
0V |
Orange |
0V |
White |
2 |
—— |
—— |
|||
3 |
—— |
—— |
B |
Red |
3 |
Yellow |
A |
|||
4 |
Gnd |
Ground |
Gnd |
Ground |
4 |
Green |
B |
|||
5 |
—— |
—— |
R |
Black |
5 |
Red |
5V |
|||
6 |
A |
Yellow |
A |
Green |
6 |
Brown |
R |
|||
7 |
5V |
Red |
5V |
Brow |
7 |
Ground |
Gnd |
|||
8 |
B |
Green |
B |
Blue |
Case |
Ground |
Gnd |
|||
9 |
R |
Brown |
R |
Gray |
||||||

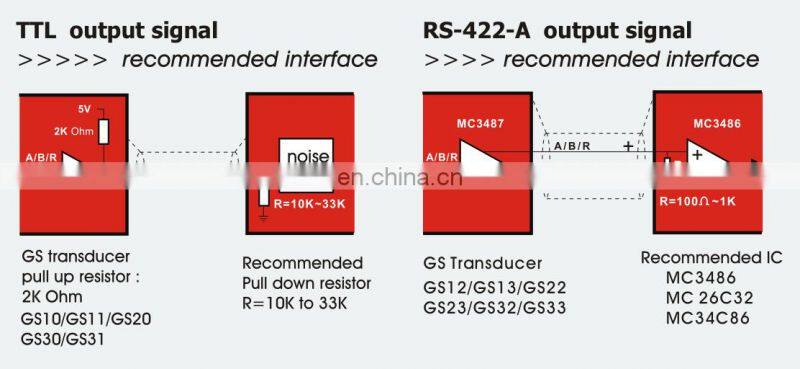

TTL output signal>>>>>recommended inferface
GS transducer
pull up resistor:2k Ohm
GS10/GS11/GS20/GS30/GS31
Recommended Pull down resistor R=10K to 33K
RS-422-A output signal
GS Transducer
GS12/GS13/GS22
GS23/GS32/GS33
Recommended IC
MC3486
MC26C32
MC34C86.
GS series glass grating linear transducer technical specifications
GS10 |
GS12 |
GS20 |
GS22 |
GS30 |
GS32 |
||||||||
Measuring Standard |
Glass scale- Grating period:20um(0.02mm) |
||||||||||||
Optical Detecting System |
Transmissive Infrared system: wavelength:880nm |
||||||||||||
Slide Carrier System |
Vertical five bearings supporting system |
45"five bearings supporting system |
Vertical five bearings supporting system |
||||||||||
Resolution |
5um |
||||||||||||
Measurement Travel |
100-1200mm |
Every 50mm per length specification |
not avaliable |
Every 50mm per length specification upto 500mm |
|||||||||
1300-3000mm |
not avaliable |
Every 100mm per length specification |
not avaliable |
||||||||||
Accuracy |
100-450mm |
±6um |
±6um |
||||||||||
500--800mm |
±10um |
||||||||||||
1050-1200mm |
±15um |
||||||||||||
1300-3000mm |
±25um |
||||||||||||
Repeatability |
2um 0.002mm |
||||||||||||
Hystersis |
3um 0.003mm |
||||||||||||
Protection |
DIN40050 IP53 |
||||||||||||
Power Supply |
DC 5V ±5% |
||||||||||||
Output Signal |
TTL |
EIA-422-A |
TTL |
EIA-422-A |
TTL |
EIA-422-A |
|||||||

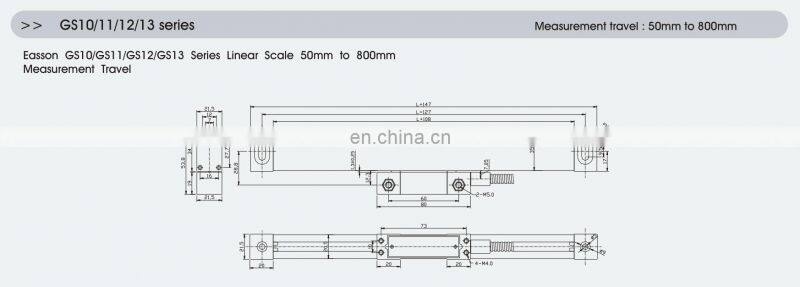

Easson GS10/GS11/GS12/GS13 Series Linear Scale 50mm to 800mm Measurement Travel

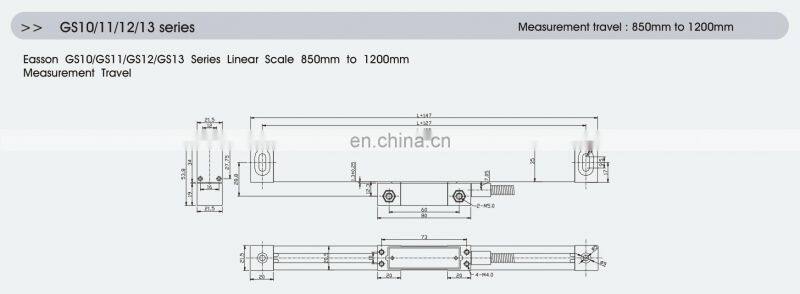

Easson GS10/GS11/GS12/GS13 Series Linear Scale 850mm to 1200mm Measurement Travel

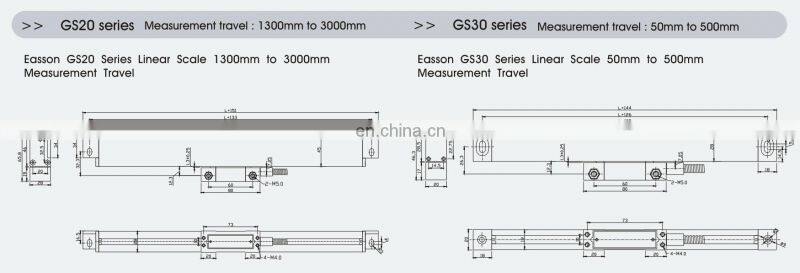

Easson GS20 Series Linear Scale 1300mm to 3000mm Measurement Travel
Easson GS30 Series Linear Scale 50mm to 500mm Measurement Travel
Industrial production Detection of industry Test process industry Electronics industry
Connector industry Robot industry Shipping industry Health care industry
