High Precision Industrial Blue Light 3d Scan 3d Scanner for Cnc Router Machine Model
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2013
Annual Export Value:
US$5 Million - US$10 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
High Precision Industrial Laser Scanner Blue Light Photography 3D Scanner For CNC Router Engraving MachineNegotiableMOQ: 1 -
Factory Direct Lab Equipment Desktop Type 3D ScannerNegotiableMOQ: 1
-
High Quality Blue Light Dental 3D Scanner Dental Equipment In Dental LabNegotiableMOQ: 1
-
Industrial Laser Scanner Blue Light Photography 3D Scanner For CNC Router Engraving MachineNegotiableMOQ: 1
-
Industrial Grade Tripod 3d Laser Scanner Industrial for CNC Engraving Machine G Code Metal Casting Plastic MoldNegotiableMOQ: 1
Product Description:

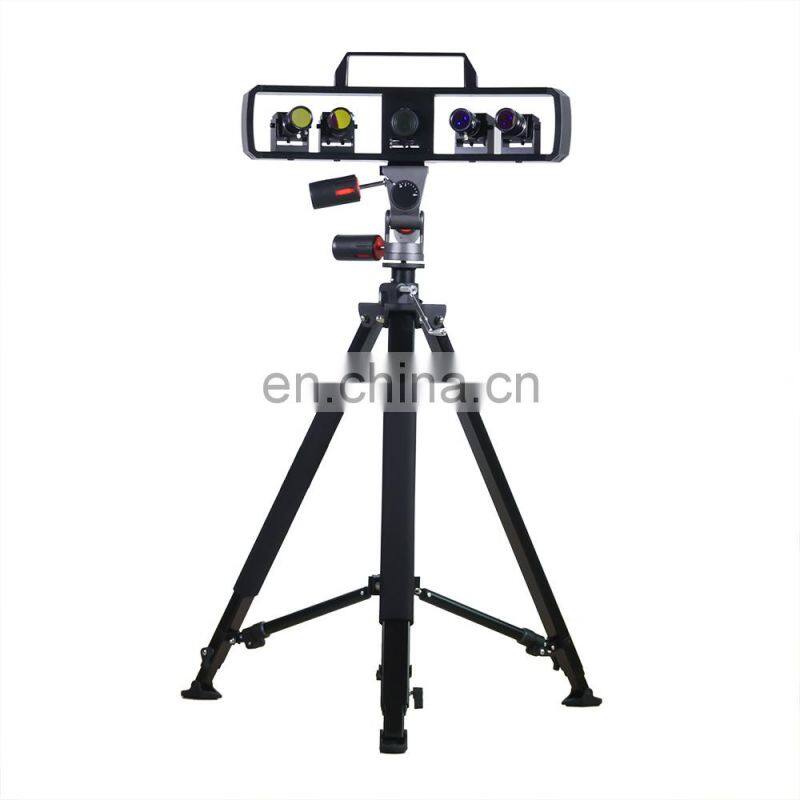

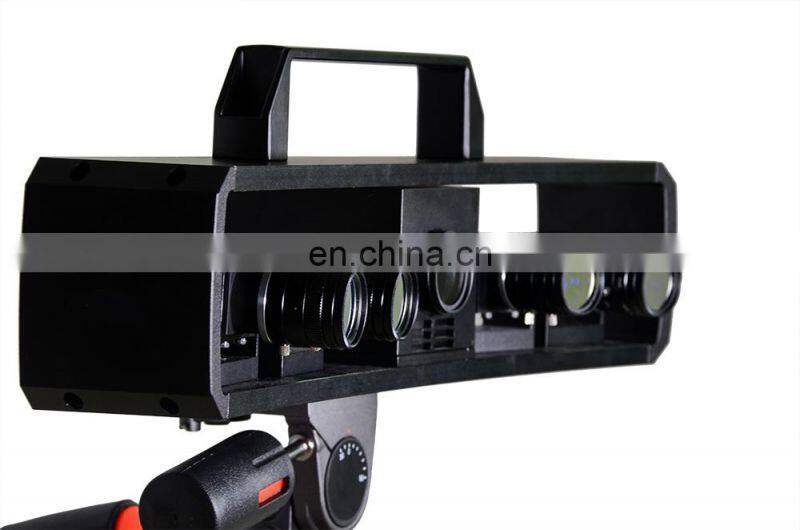

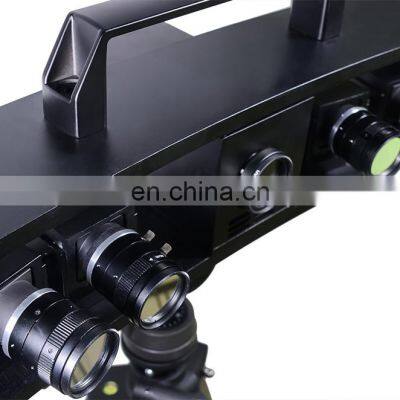

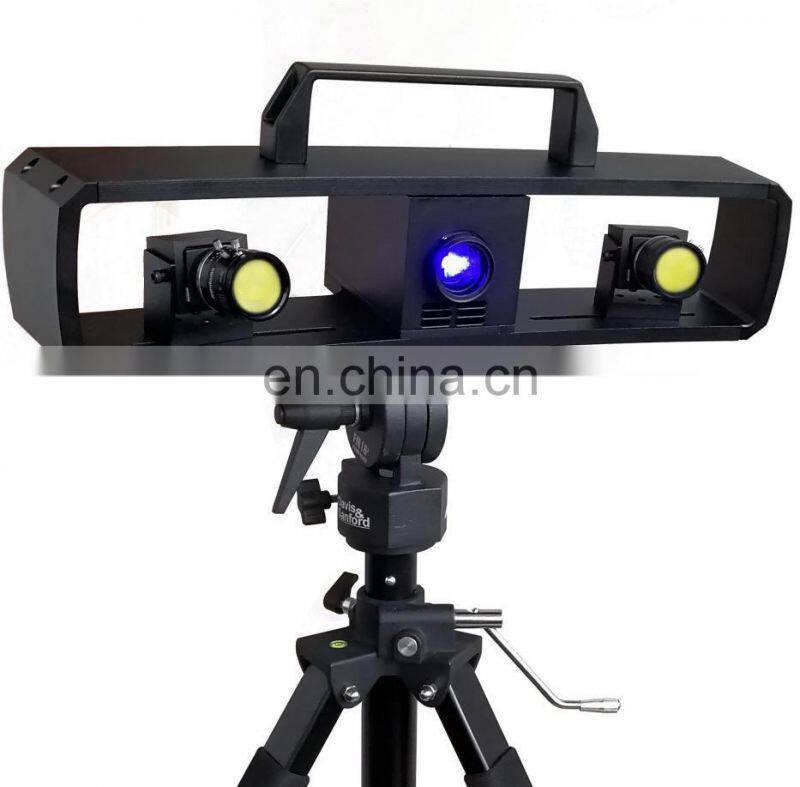

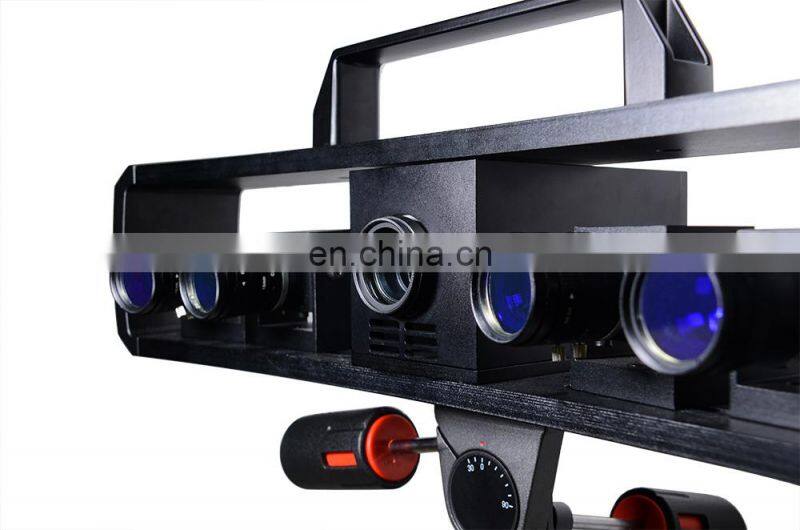

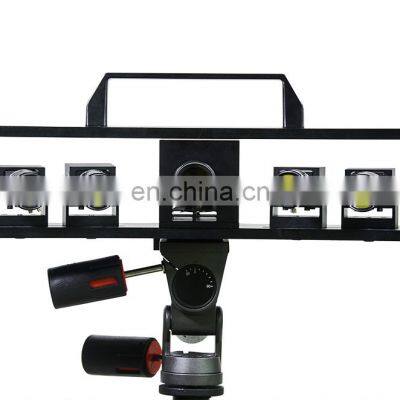

The Scanner is the newly developed blue light 3d scanning instrument adopts blue light grating, which can be scanned in the complex light environment of the workshop; it adopts high brightness LED cold light source, which has greatly extended service life, small heat generation and high stability of scanning accuracy; it adopts low distortion lens, which further improves the scanning accuracy.
Why use blue light:
The blue light scanner adds a filter on the lens, which only allows the blue light of a specific wavelength to pass through. Because the content of the blue light in the natural light and lighting source is very small, most of the light is filtered by the filter, but the light of the blue light projection light source can be collected through the lens cup image sensor. In this way, most of the interference of ambient light is eliminated. It can be scanned in the complex light environment of the workshop; with high brightness LED cold light source, the service life is greatly extended, the heating is small, and the scanning accuracy stability is high; with low distortion lens, the scanning accuracy is further improved.
Blue light applications:
In some applications, the scanning scene can not completely cover the ambient light, which will affect the scanning results.
1) Too strong ambient light will saturate the image sensor;
2) AC lighting source will bring AC noise to the scanning results;
3) Changing ambient light can affect scan results.
Fast scanning speed:
Single side scanning time is less than 5 seconds, scanning small parts, only a few minutes; scanning 1 meter size objects, the time is about 30 minutes.
High precision, high Fidelity:
Dense point cloud data can be generated, and data capture can be clearly expressed even on complex surfaces
Application cases

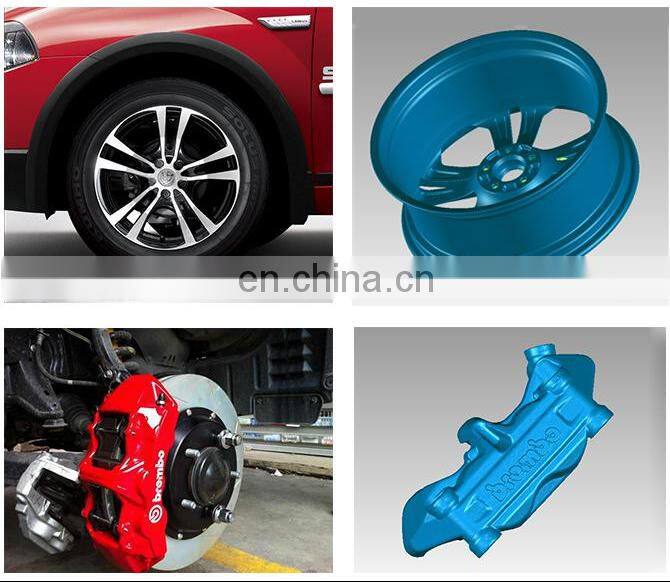

◆Automobile parts

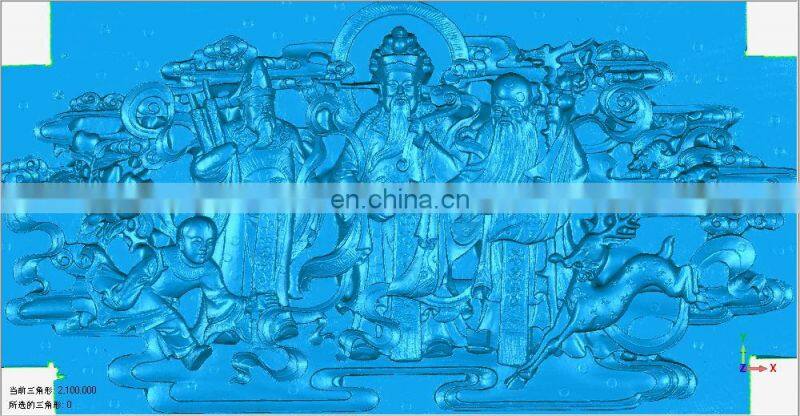

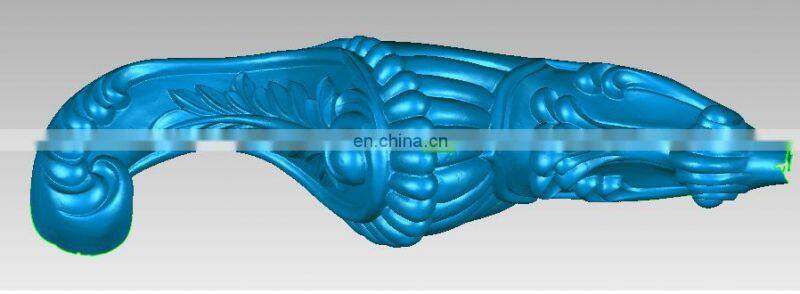

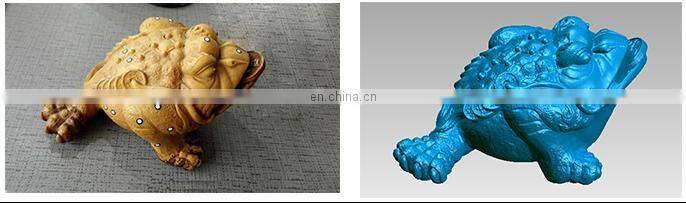

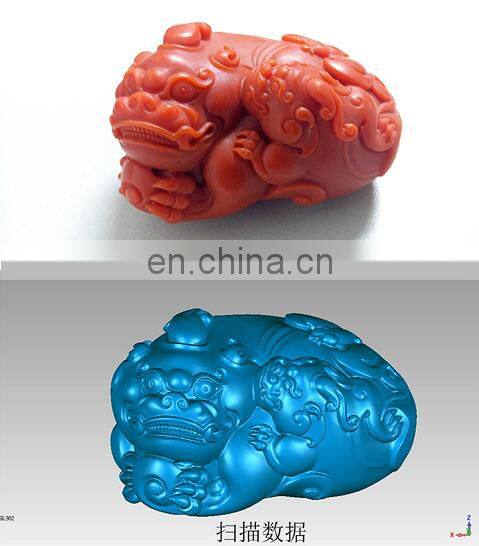

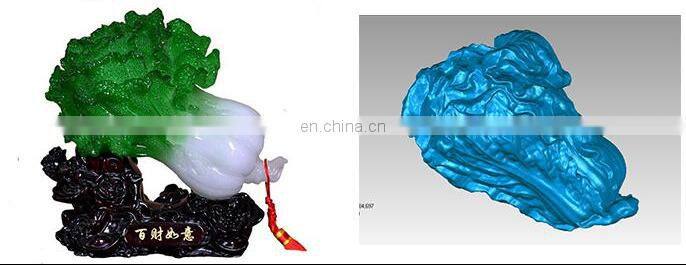

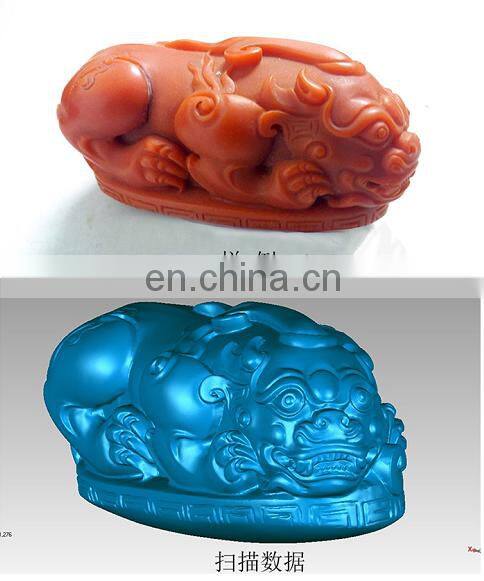

◆ Relief 3D scan:
The traditional relief pattern has zigzag lines, rich layers and complex composition. How to generate digital relief processing model has become the key link of the whole relief machining process. The three-dimensional scanner quickly digitizes the sculpture works of the master sculptor with high fidelity, and then directly processes the works through the CNC engraving machine. It is especially suitable for reproduction, design and mass production of antique furniture, large-scale wood carving and sculpture crafts.
Single scan range |
400x300 |
200x150 |
100x75 |
||
Single side scanning accuracy |
0.010~0.015 |
0.01 |
0.01 |
||
Scanning object size |
1000mm~3000mm |
300mm~1000mm |
50mm~300mm |
||
Camera resolution |
1,310,000X2(Upgradeable) |
||||
Lens resolution |
1,310,000X2 |
||||
Overall scanning accuracy |
0.1mm/m |
||||
Space measurement point distance |
0.07-0.035mm |
||||
Depth of field |
100-400mm |
||||
Raster light source |
LED cold light source, life 30000 hours |
||||
Splicing method |
Automatic splicing of ball center |
||||
Scan time |
<5s |
||||
file format |
ASC ; PLY ; STL ; OBJ ; IGES |
||||
application area |
Automobile, large mold, large casting, plastic parts |
Wood carving, furniture, sole, small household appliances, medium-sized mold |
Fine wood carving, small household appliances, heel, mechanical parts |
||
