Industrial Laser Scanner Blue Light Photography 3D Scanner For CNC Router Engraving Machine
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2013
Annual Export Value:
US$5 Million - US$10 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Industrial Grade Tripod 3d Laser Scanner Industrial for CNC Engraving Machine G Code Metal Casting Plastic MoldNegotiableMOQ: 1 -
High Precision Industrial Blue Light 3d Scan 3d Scanner for Cnc Router Machine ModelNegotiableMOQ: 1
-
High Precision Industrial Laser Scanner Blue Light Photography 3D Scanner For CNC Router Engraving MachineNegotiableMOQ: 1
-
Factory Direct Lab Equipment Desktop Type 3D ScannerNegotiableMOQ: 1
-
High Quality Blue Light Dental 3D Scanner Dental Equipment In Dental LabNegotiableMOQ: 1
Industrial Laser Scanner Blue Light Photography 3D Scanner For CNC Router Engraving Machine
INSCAN photographic three-dimensional scanner adopts non-contact illumination projection technology, avoiding contact with the surface of the object, and can measure the model of various materials. In the process of measurement, the measured object can be
arbitrarily flipped and moved, the object can be measured from multiple perspectives, and the BROAD3D scanning software can be fully assembled to easily realize object 3. 60 high precision measurement. Moreover, it can acquire the three-dimensional data of the surface as well as the feature information of the surface quickly, and get the realistic shape of the object. It can be applied to the three-dimensional scanning of the industrial product manufacturing industry quickly.
arbitrarily flipped and moved, the object can be measured from multiple perspectives, and the BROAD3D scanning software can be fully assembled to easily realize object 3. 60 high precision measurement. Moreover, it can acquire the three-dimensional data of the surface as well as the feature information of the surface quickly, and get the realistic shape of the object. It can be applied to the three-dimensional scanning of the industrial product manufacturing industry quickly.
INSCAN photographic three-dimensional scanner adheres to the concept of "software can handle, never let users handle", so as to
minimize the number of parameters set by users of the whole system. The running period of the scanning software will dynamically
calculate the required parameters in a more precise way, which not only avoids the unnecessary settings that the user participates in manually, but also makes the whole system more adaptable, more automated and less likely to make human errors.
minimize the number of parameters set by users of the whole system. The running period of the scanning software will dynamically
calculate the required parameters in a more precise way, which not only avoids the unnecessary settings that the user participates in manually, but also makes the whole system more adaptable, more automated and less likely to make human errors.
Technical parameters：
(1) Scanner control module
(2) System Correction Module
(3) Scanning Reconstruction Module
(4) Automatic splicing module
(5) Three-dimensional display module
(6) Post-processing
(2) System Correction Module
(3) Scanning Reconstruction Module
(4) Automatic splicing module
(5) Three-dimensional display module
(6) Post-processing
Technical characteristics:
* Optical peripheral phase moving triangulation
* Can scan dark and black objects, light reflection without powder spraying
* Multi grating LED cold light source blue light projection
* Obtain the punctuation data of the visible area of the lens
* Mark point automatic splicing, matrix error control module
* The splicing time is greatly shortened, and the measured object can be turned and moved at will during the measurement process
* Scanning software can automatically identify mark points
* Scanning depth of field up to 300 mm
* The measurement output data interface is extensive, and it can output general document formats such as ASC, ply, STL, etc
* The software interface is simple to use, easy to operate and easy to use
* Client self calibration
Advantage:
● Advanced subpixel object surface scanning method is adopted to meet the needs of high-quality point cloud scanning
The system adopts a high-resolution digital industrial camera to collect image data, and through the light source's fringe on the object surface, the dense point cloud on any complex surface can be obtained in a few seconds (the specific density depends on the measured object size, camera resolution and measurement distance, generally 0.1-0.2mm). The system resolution is 3 million.The system software belongs to the core technology product of independent research and development, the interface specification, the efficiency is high, suits the software function expansion demand development.The sub-pixel scanning method adopted by the system can adjust the optimal position according to the local surface of the object to be measured.During the operation of BROAD3D software, all data collected are corrected at the sub-pixel level, which greatly improves the collection accuracy.
● The system is simple to set up and easy to use
In the overall development process of the scanner, adhere to the "software can handle, never let the user handle" concept, so that the number of user Settings parameters of the whole system to a minimum.The running time of the scanning software can calculate the required parameter values dynamically in a more accurate way, which not only avoids the unnecessary setting work that users participate in manually, but also makes the whole system more adaptable, more automated and less likely to make human error.
● Convenient point cloud operation process
The system has a flexible point cloud processing method, which supports the basic operations such as deletion, cancellation and block display, as well as point cloud noise processing and pruning.Three-dimensional point cloud has high processing efficiency and fast computing speed, which is suitable for high-precision object scanning.The operation of arbitrary rotation, zooming and local zooming can be realized.
● Automatic splicing method
Image data from different perspectives are automatically pieced together in a unified coordinate system by means of marking points, so as to obtain the overall scan data of 3d images.BROAD3D software can automatically identify the mark points efficiently, which greatly improves the splicing efficiency.
● Minimum dependence on hardware for system accuracy
The optical calibration module of the whole system adopts ultra-high precision industrial glass correction plate, which maximizes the calibration accuracy.The software corrects errors in real time during the collection process, and also corrects and processes several lens distortions strictlyThe complex processing of columns ensures the overall scanning accuracy of the system, and the optimized design of the correction module does not consume too much scanningTime.
● High interface integration, simple and easy to use, strong system compatibility.
The software has powerful functions, and the unique technology of automatic stitching module for marking points makes it convenient for users to operate.The calibration process is flexible and free. The scanning software can automatically identify the mark points and calculate the calibration results automatically.Users easy to learn and easy to use, without too much training can be skilled operation.
Item |
Description |
||
Model |

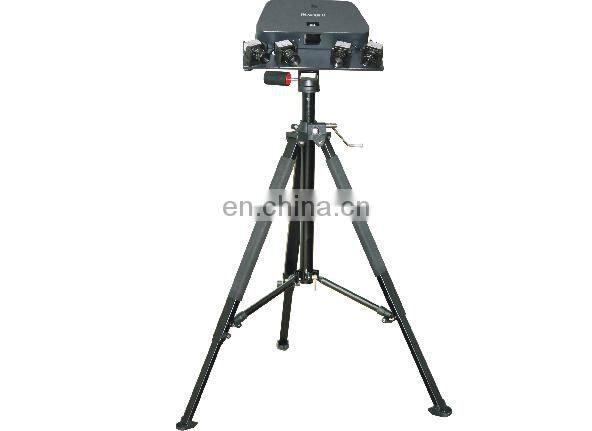

INSCAN II |
INSCAN III |
|
Lens |
Binocular system and quadruple system |
||
Pixel |
1.3 million pixels |
3 million pixels |
|
Light source |
White light LED |
Blue light LED |
|
Sensor |
Industrial Million-Class CCD Sensor |
||
Accuracy |
0.05mm~0.1mm |
0.03~0.08mm |
|
Point cloud spacing |
0.08mm~0.25mm |
0.05~0.2mm |
|
Single scan speed |
3 seconds |
||
Scanning Principle |

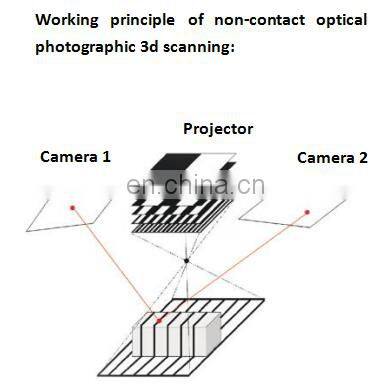

Optical Periphase Moving Triangulation Method |
||
Scanning mode |
Contactless Surface Scanning |
||
Scanning range |
50mm~800mm |
||
Stitching mode |
Automatically splicing landmarks, feature splicing and non-sticking splicing |
||
Calibration system |
EBT calibration system |
||
Data transmission system |
USB |
||
Tripod |
Special tripod |
||
Weight |
8kg |
||
Power |
80-230V, 50/60 Hz; 110V or 220V for customers'choice |
||
Output format |
STL、ASC、PLY、IGS、VRML |
||
System |
Windows 7/Windows 8 64-bit |
||
Application Case of Blue Light Three-Dimensional Scanner
● Toy handboard
● Automotive industry
● Furniture Wood Carving
● Bicycle helmet
● Furniture Wood Carving
● Bicycle helmet

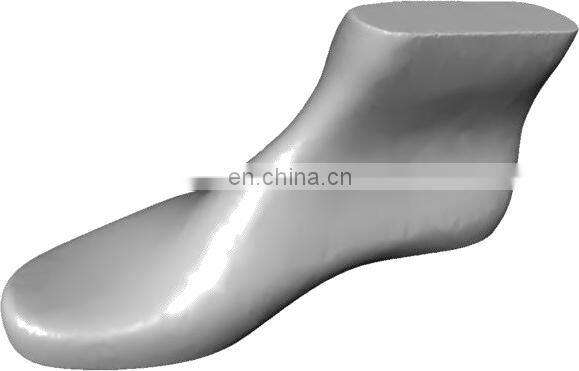

● Shoe last
● Shoe sole

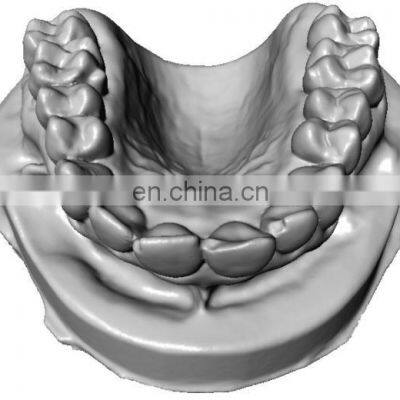

● Dental Dentistry
● Articles for daily use
● Shoe sole
● Dental Dentistry
● Articles for daily use
