Home > Instruments & Meters > Test Instrument > Test Machine > Large Range Digital Profile Measuring Equipment Contour Testing Machine

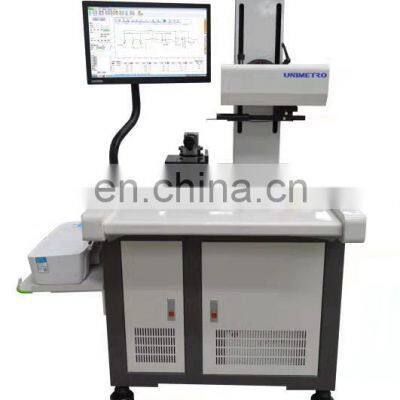

Large Range Digital Profile Measuring Equipment Contour Testing Machine

Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Business Type:

Manufacturer

Year Established:

2013

Annual Export Value:

US$5 Million - US$10 Million

Contact Supplier Request Quote Chat Now

Dongguan Unimetro Precision Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Product Overview

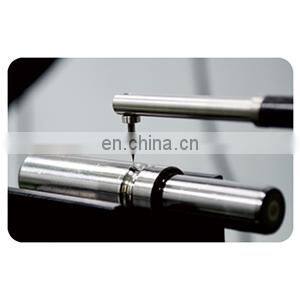

Contour Measurement Equipment

Roughness profile measurement and analysis basis

The measurable elements of all surfaces include size/shape/roughness and waviness. Many high-spec components need to analyze all the above elements. > Dimensions: The functional shape of the surface defined by the radius, angle, distance and linear shutdown between features. > Shape: The deviation of the target shape relative to the surface (plane, sphere, cone, etc.) is usually caused by machine tool errors. > Roughness: caused by factors such as cutting tools or processing. > Waviness: Non-ideal machine tool effect caused by vibration, insufficient rigidity or other unstable factors in the machining process

FEATURES AT A GLANCE

1.Standard type, with lower using cost

2. Digital roughness sensor

3.Large measuring range, high accuracy roughness testing

PRODUCT SPECIFICATIONS

Model			SP1000
Measuring range	X axis	100mm
	2	Z axis	320mm
	3	Z1 axis	±7.5mm
Contour accuracy	Z1 Linear accuracy	±（1.5+I0.2HI) um
	5	Arc	±（2+R/8) um
	6	Straightness	0.8um/100mm
	7	Angle	±2'
Driving speed	X axis	0.1~10mm/s
Driving speed		Z axis	0.5~10mm/s

Product packaging

First: dustproof membrance

Second: white bubble film

Finally: wooden box reinforced

Ready for delivery

Placed on truck

Product packaging

About us

UNIMETRO helps you to build your own business!

UNIMETRO is the professional manufacturer of metrology with over 10 years experience. We offer high performance products with reasonable price. And professional cooperators from global market are always welcome to join us and UNIMETRO will always offer the best marketing and technical support.

Our service

Unimetro focus on per step in business process including the design, manufacture, installation and after sales service.
On-site service and guidance:
* 24 Hours online by phone, email, whatsup, skype, youtube, facebook…etc.
* Spot stock, Fast delivery
* After sale service
1 year warranty service and Free test software upgrades.
Technical training for technical engineers.
Provide matching testing solutions.
Site installation equipment and usage instructions.

Why Choose Us
