Product Description
Salt Spray Tester
The whole machine adopts P.V.C material, corrosion resistance, easy to clean, no leakage phenomenon. Using button type intelligent temperature control instrument, multiple sets of PID automatic routing, high control precision, instrument can also be equipped with LCD touch screen. 108 l, 270 l testing machine cover adopts acrylic transparent roof, more than 480 l model adopts hard P.V.C plastic board, cover automatically opened and closed by cylinder, enclose the window light, may at any time to monitor the spray state machine and working state of the sample. Tower spray system and device have salt liquid filter, no crystallization nozzle, spray uniform distribution, settlement free adjustment. Sample number was laid (150 * 70 mm), such as 48 pieces can be placed in a 15 degree Angle, such as 32 can be placed in 30 degrees. After completion of the experiment, with automatic mist device, the sample (s) can be observed clearly. Clearance or continuous spray optional, multiple protection system, the use of safe and reliable.
Usage: Salt Spray Test Chambers offer the most realistic and dependable corrosion test, widely used to test corrosion resistance of automotive, paint, surface coating, chemical, aerospace, electronic, car industry, offshore and defense industries. Standard： DIN 50021: Salt spray testing JIS Z2371 Methods of Salt Spray Testing SGM-GM4465P Water Fog Humidity Test ASTM B117 Standard Practice for Operating Salt Spray Apparatus ASTM D1735-99 Standard Practice for Testing Water Resistance of Coatings Using Water Fog Apparatus ASTM G85 - 11 Standard Practice for Modified Salt Spray (Fog) Testing ISO7253:2001 Paints and varnishes – Determination of resistance to neutral salt spray (fog) ISO9227-2012 Corrosion tests in artificial atmospheres – salt spray tests ASTM B368-97 Standard Method for Copper-Accelerated Acetic Acid-Salt Spray (Fog) Testing (CASS Test) ASTM B380-97(2007) Standard Test Method of Corrosion Testing of Decorative Electrodeposited Coatings by the Corrodkote Procedure.
CASS serial: machine adopts imported PVC&PP hard plastic, solid structure,acid and alkali endurable, high temperature corrosion, never aging. Suitable for neutral salt fog NSS, acetic acid test along, copper acetate CASS and other experimental requirements. Use plastic precision nozzle and conical spray, mist evenly fast, nozzle long service life, no crystallization. Using LED LCD touch screen, can connect with computer to realize remote monitoring and operation, can be arbitrary switching in both Chinese and English. With USB interface, can insert U disk to download historical data (the alternative recorder. Internal control, spray time without additional time relay. Through the flow meter, high pressure valve to regulate brine flow and pressure of compressed air, to ensure uniform settlement of salt fog. Use the manual water system, water shortage with the function of automatically added, ensure continuity of test.
standard type, NSS serial, can option LED touch screen.

Model
NSS
SP-HL-120
ASS
SP-AHL-120
CASS
SP-AHL-120

Interior dimensions (mm)
W
1200
D
850
H
600

Exterior dimensions (mm)
W
1900
D
1150
H
1500
Chamber Tank
480L
Solution Tank
90L
Testing Temperature
NSS ACSS 35℃±1℃ / CASS 50℃±1℃
Air Temperature
NSS ACSS 47℃±1℃ / CASS 63℃±1℃
Solution Consistence
NaCl 5%
PH Value
NSS (Nacl) : 6.5~7.2 / CASS(Cu / CH COOH ): 3.0~3.2
Temperature fluctuation
± 0.5℃
Temperature uniformity
≦2. 0℃
Temperature Resolution
0.1℃
Spray quantum
1.0~2.0(ml/80cm2/h)
Chamber Material
polyvinyl chloride (P.V.C & P.P)
Heater
Corrosion-resistant titanium tube
Temperature sensor
Platinum Resistance (PT-100)
Safety device
Over-temperature protection , leakage protection
Ambient temp. & humid. range
+5℃ ~ +35℃ /
Power Supply
AC 220V/50HZ/1P AC 380V/50HZ/3P

Detailed Images

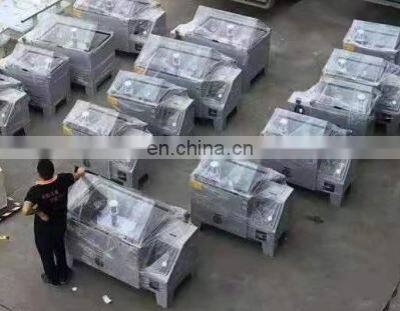

Our Factory
Guizhou Sunpoc Tech Industry Co., LTD is committed to supply the customers with the highest quality products and solutions in materials testing and science research. Our quality products are used in a wide range of industries like civil and military. Being a professional manufacturer and exporter in the field of quality test instruments, Sunpoc dedicated to materials and specimen testing industries for 15 years and gained high reputation from our customers all over the world. Sunpoc continuously reviews and updates our product and service to macth the need of our clients with the advanced technologies.
